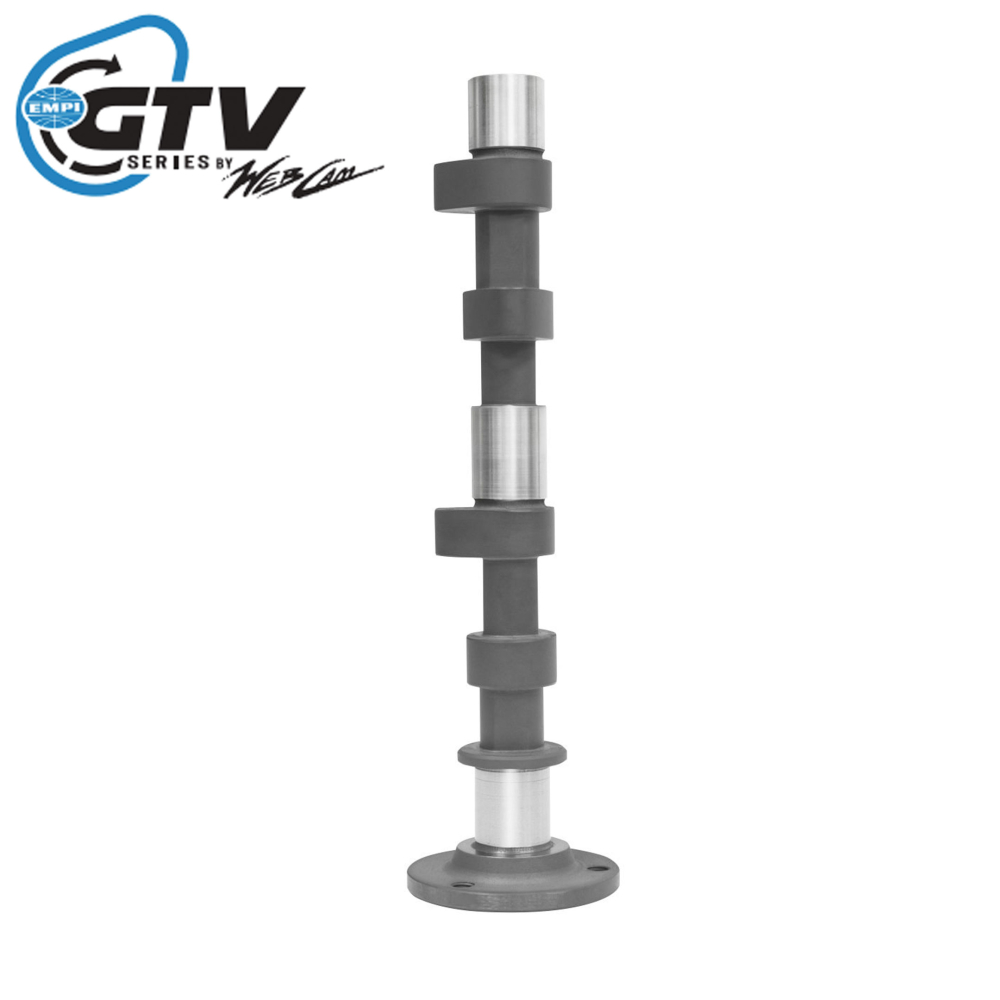

EMPI - Web-Cam GTV-86A VW Performance Camshaft - Type 1 - 1300-1600 - for 1.4 or 1.5 Rockers

EMPI GTV-86A VW Performance Camshaft - Type 1 - 1300-1600 - for 1.4 or 1.5 Rockers

• Tremendous performance and maximum value for your new or rebuilt engine
• Produced from new chilled cast iron billets to EMPI’s specifications
• Parkerized for trouble-free break-in and clearanced for stroker cranks

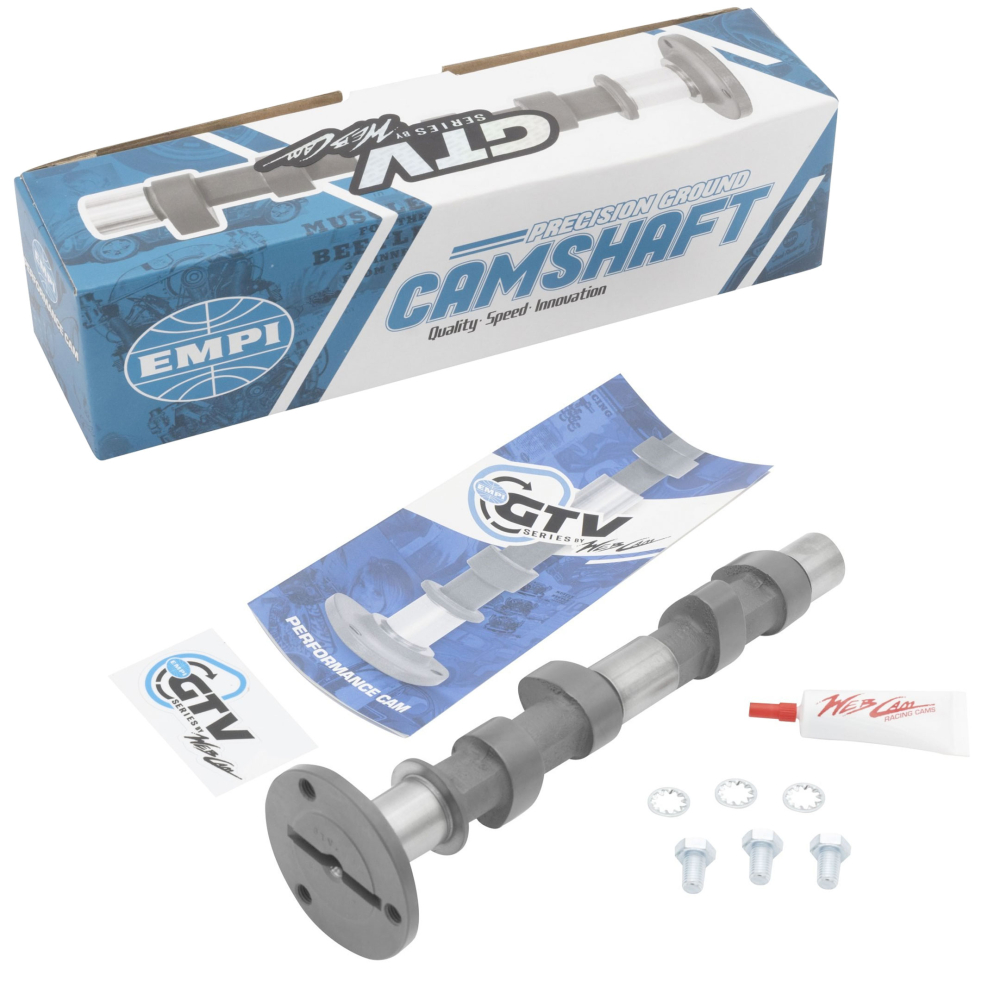

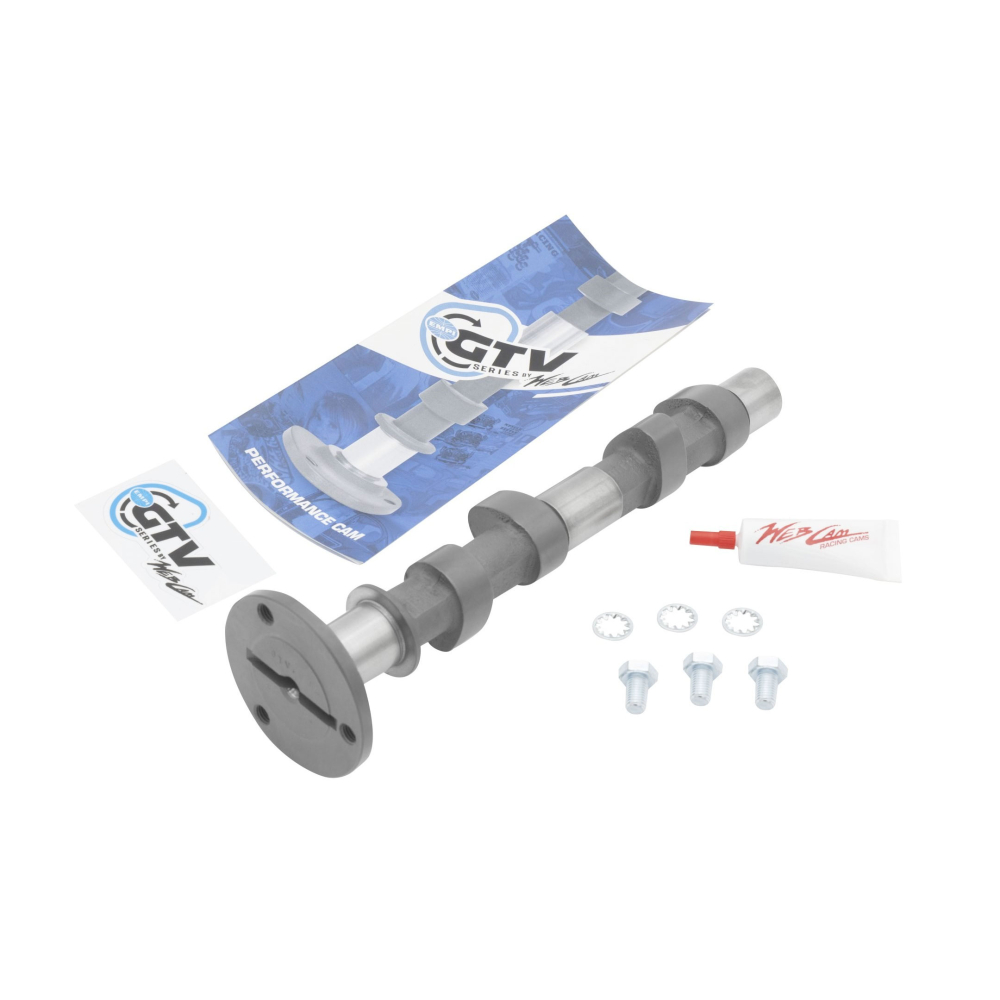

• Grade 8 hardware, assembly lube and cam card with specs included

This is Web Cams mildest ratio rocker cam and it has a powerband similar to the W-110 or the Web Cam 163. Since it is designed for use with ratio rockers it is smoother than those cams and when tuned properly with dual two barrel carburetors it can idle at 600 rpm. With more headwork and carburetion, the more performance you'll see. Either way, the mellow grinds on the ratio rocker designed cam allows for longer engine life and a super smooth valve train. Whether using it with 1.4 or 1.5 ratio rockers it provides good useable power in a wide range of engines.

EMPI's GTV-86A cam pulls well from 1500 up to about 6000 RPM. Dual springs and HD rocker shafts are necessities, along with 1.4 or 1.5 ratio rockers. Dual, two barrel carburetors are ideal and will allow for an idle that is close to stock. This is a great all around cam with a very streetable powerband.

EMPI's Web Cam GTV-86A Performance Camshaft Specifications:

• .469" Valve Lift with 1.4:1 Rockers
• .502" Valve Lift with 1.5:1 Rockers
• Cam Lift .335"
• Duration 290°
• Lobe Center 108°

Valve Spring Recommendations:

• Dual "Hi-Rev" w/1.4:1 Rockers
• Dual "Hi-Rev" w/1.5:1 Rockers

Recommended Rocker Assemblies:

• HD Rocker Shafts & 1.4:1
• HD Rocker Shafts & 1.5:1

Recommended Compression Ratio:

• 8.5:1 to 9:1

RPM Range:

• 1500 to 6000 w/1.4:1 Rockers
• 1600 to 6100 w/1.5:1 Rockers

Recommended Carburetion:

• Dual, 2 Barrels.

Installation Notes:

All Type 1 performance cams are 3 Bolt, "early style" or "flat cams" and fit Type 1,2 & 3, 1200cc(40hp) to 1600cc based engines. The cam requires a separately sold, bolt on cam gear and must be used with a "flat cam" style oil pump. You can add the gear with the option above, or check out the links below:

• VW Flat Cam Gear - Bolt On
• VW Flat Cam Gear with Adjustable Timing - Bolt On
• VW Straight Cut Flat Cam Gear with Adjustable Timing - Bolt On

New lifters should be installed whenever a new cam is being used. Never reuse old lifters with a new cam! Here are a few of options to consider:

• Stock VW Lifter
• VW 1 Piece Billet 28mm Cam Lifters - Set of 8
• VW 1 Piece Billet 28mm Cam Lifters with Oil Hole - Set of 8

JBugs along with most engine builders, racers and auto enthusiasts, recommends using an engine oil with ZDDP or ZDTP or a ZDDP/ZDTP additive in your oil for all flat tappet camshaft engines!
