EMPI Heavy Duty VW Swing Axle Spring Plates - 1954-60 Beetle - Ghia - 1961-68 Type 3
Part Number: 17-2660
Free Shipping
Orders over $100 qualify for free shipping.
**Contiguous U.S. only.
**Contiguous U.S. only.
Free Shipping
Orders over $100 qualify for free shipping
Contiguous U.S. only
No Restock Fees
60-day returns for items not installed and in like-new condition
-
Description
-
Fits Years
- Shipping
-
Returns
- Q&A
- Shipping & Returns
Product Description

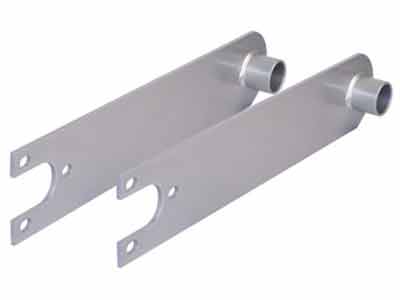

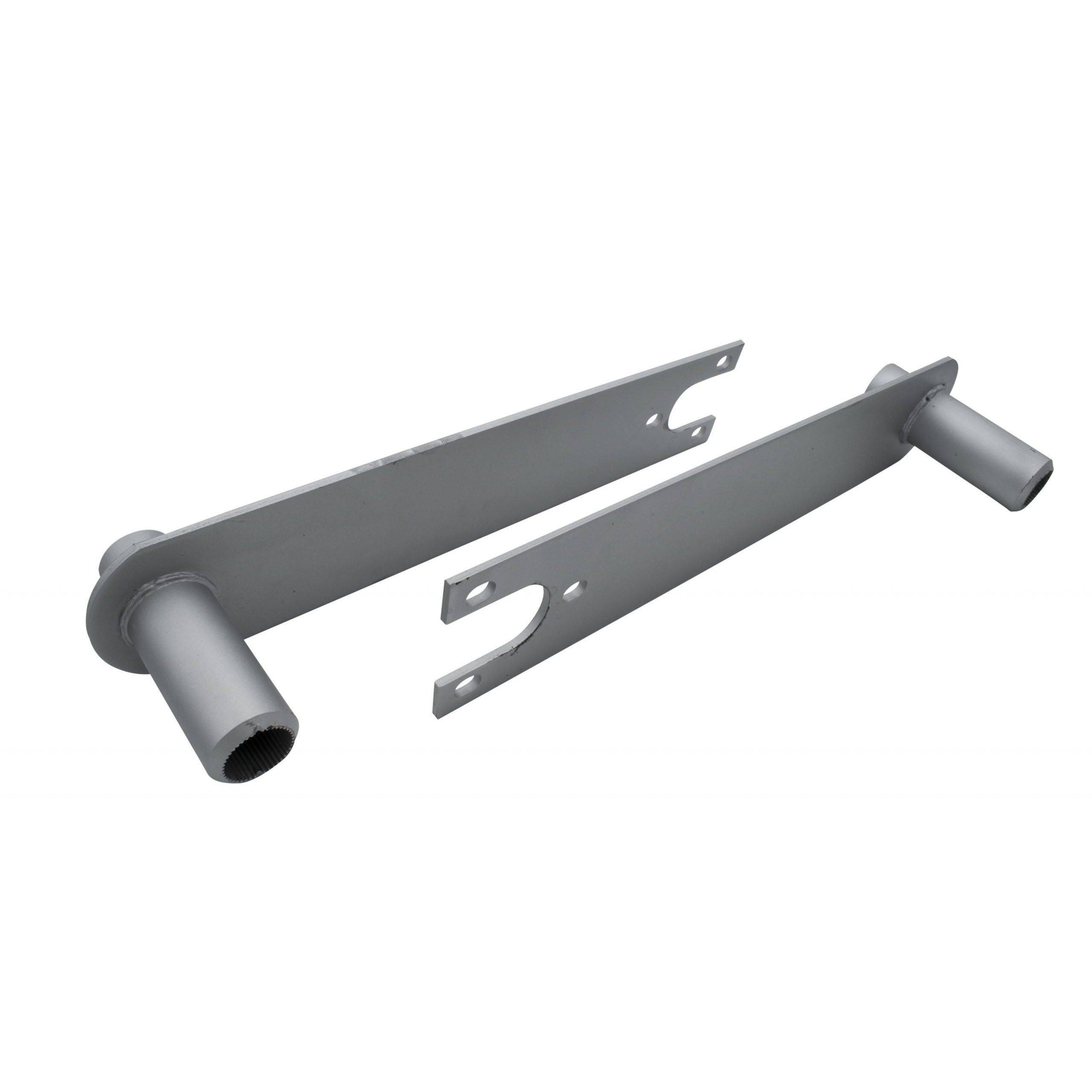

EMPI's Heavy Duty VW Swing Axle Spring Plates are sold as a pair and have a 4 1/4" collar for use with 24 11/16" torsion bars. The silver painted spring plates fit 1954 through 1960 Beetles, 1956 through 1960 Karmann Ghias and 1961 through 1968 Type 3s.
Spring plates slide over the rear torsion bars and are held in place by the spring plate cover. The torsion bar is a torsional bar that acts in place of a traditional spring to hold up the rear of the car. The swing axle tube bolts to the spring plate,
connecting the rear wheel and suspension to the torsion bar. The plates ride in rubber (or urethane bushings) to prevent metal on metal contact. Heavy duty spring plates require 1 3/4" inside diameter inner spring plate bushings and 1 7/8" inside
diameter outer spring plate bushings. Stock rubber bushing will not fit with the heavy duty spring plates.
Wondering what spring plate bushings you need? Click here for our Spring Plate Bushing Reference Chart!
Wondering what spring plate bushings you need? Click here for our Spring Plate Bushing Reference Chart!
Warning: Cancer and Reproductive Harm - Compatibility
Please Note:The information listed below is for stock, unmodified VW's manufactured for sale in the US. VW's are commonly modified and very often parts from another year VW may have been installed on your car. California Pacific JBugs is not responsible for any errors if your car has been modified in any way.
VW Beetle
Sedan
1954 - 1959
Ragtop
1954 - 1959
Convertible
1954 - 1959
VW Karmann Ghia
Coupe
1956 - 1959
Convertible
1957 - 1959
VW Type 3
Squareback
1962 - 1968
Notchback
1962 - 1968
Fastback
1966 - 1968
