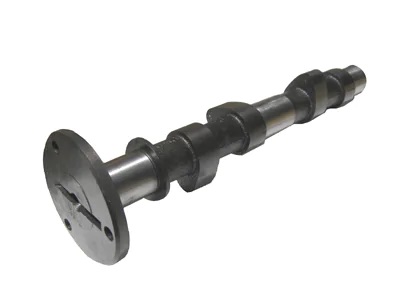

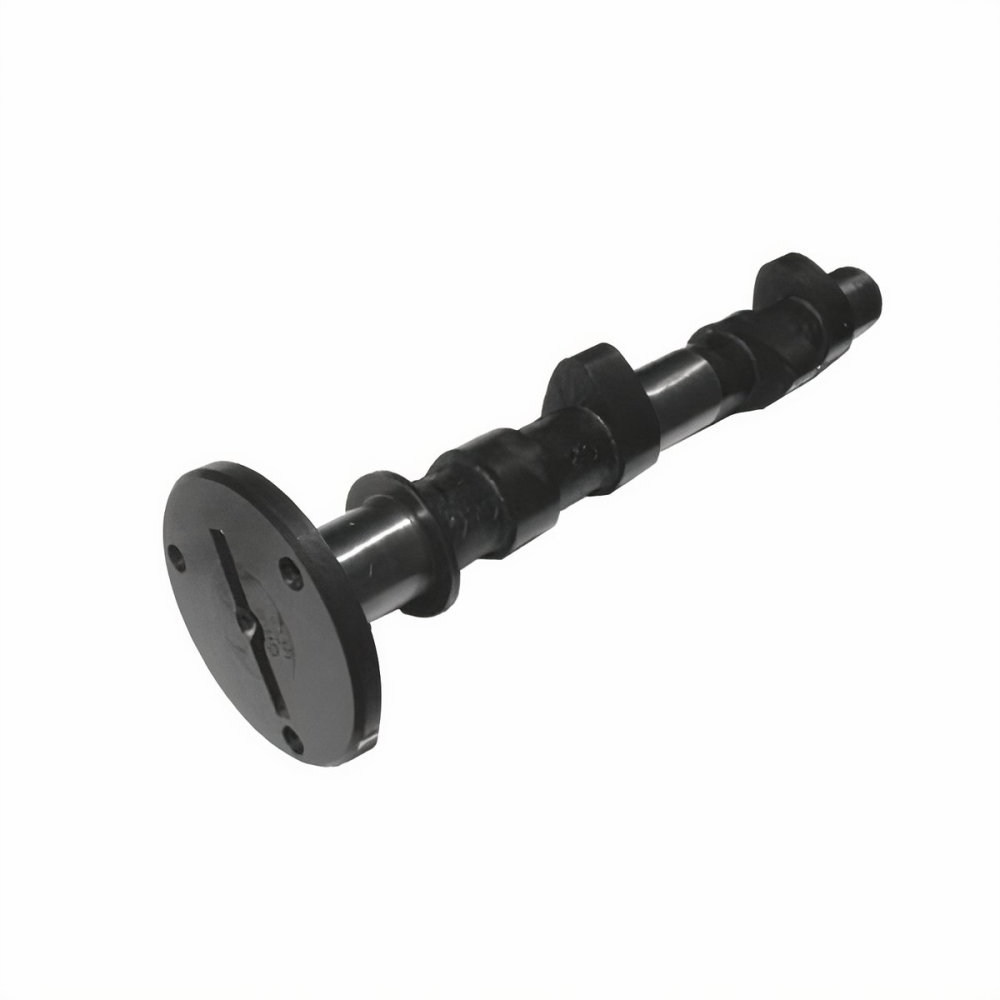

Engle FK-98 - VW Performance Camshaft - .624" Lift - 332° Duration - For 1.4 or 1.5 Rockers

Engle FK-98 VW Performance Camshaft - Type 1 - for 1.4 or 1.5 Rockers

• One of the biggest racing cams available
• Ground, finished & packaged in Long Beach, CA
• Clearanced for stroker cranks
• Red Line assembly lube and cam card with specs included

The Engle FK-98 is a newer VW Cam for serious engines. It is designed for 1.4-1.5 rockers, and it's specs are .446" Cam Lift, .624" Valve Lift (1.4 Rockers) 332 degrees of advertised duration, and 292 degrees of duration at .050", on a 108 Lobe Center. This is one of if not the biggest racing cams around and possibly Engle's biggest grind. This cam takes 13:1 or more compression, and thousands of dollars worth of other parts to make the most of the lift that it offers. Performance heads, a 1 3/4+ exhaust, large carburetors, and more are a must. The power band doesn't even start until 5000 rpm and will pull up to and past 10k rpm. Chevy springs are required due to the high revving nature of this cam. All of Engle's FK cams are clearanced to work with stroker crankshafts.

Engle FK Series Camshafts are designed for use with 1.4 or 1.5 rockers.

Setting proper valve train geometry is crucial when using high ratio rockers. FK series cams take advantage of the increase in lift that comes with higher ratio rockers so they are a lot easier on the rest of the valve train. Engle’s FK cams are perfect for mild to high performance street and full race engines and all FK series camshafts are clearanced for stroker crankshafts.

Engle FK-98 Performance Camshaft Specifications:

• .624" Valve Lift with 1.4:1 Rockers
• .669" Valve Lift with 1.5:1 Rockers
• Cam Lift - .446"
• Duration - 332°
• Duration at .050" - 292°
• Lobe Center - 108°

Valve Spring Recommendations:

• Chevy Springs

Recommended Rocker Assemblies:

• HD Rocker Shafts & 1.4:1
• HD Rocker Shafts & 1.5:1

Recommended Compression Ratio:

• 13:1+

RPM Range:

• 5000 to 10000+

Recommended Carburetion:

• Dual, 2 Barrels.

Recommend Exhaust:

• 1 3/4" Diameter - minimum

Installation Notes:

All Type 1 performance cams are 3 Bolt, "early style" or "flat cams" and fit Type 1,2 & 3, 1200cc(40hp) to 1600cc based engines. The cam requires a separately sold, bolt on cam gear and must be used with a "flat cam" style oil pump. You can add the gear with the option above, or check out the links below:

• VW Flat Cam Gear - Bolt On
• VW Flat Cam Gear with Adjustable Timing - Bolt On
• VW Straight Cut Flat Cam Gear with Adjustable Timing - Bolt On

New lifters should be installed whenever a new cam is being used. Never reuse old lifters with a new cam! Here are a few of options to consider:

• Stock VW Lifter
• VW 1 Piece Billet 28mm Cam Lifters - Set of 8
• VW 1 Piece Billet 28mm Cam Lifters with Oil Hole - Set of 8

JBugs along with most engine builders, racers and auto enthusiasts, recommends using an engine oil with ZDDP or ZDTP or a ZDDP/ZDTP additive in your oil for all flat tappet camshaft engines!
