Engle TCS-30 - VW Performance Dual Grind Camshaft - For 1.1 or 1.25 Rockers

Engle TCS-30 VW Performance Camshaft - Type 1 - for 1.1 or 1.25 Rockers

• ”Turbo” grind cam for mild engine builds
• Different intake and exhaust profiles
• Ground, finished & packaged in Long Beach, CA
• Clearanced for stroker cranks

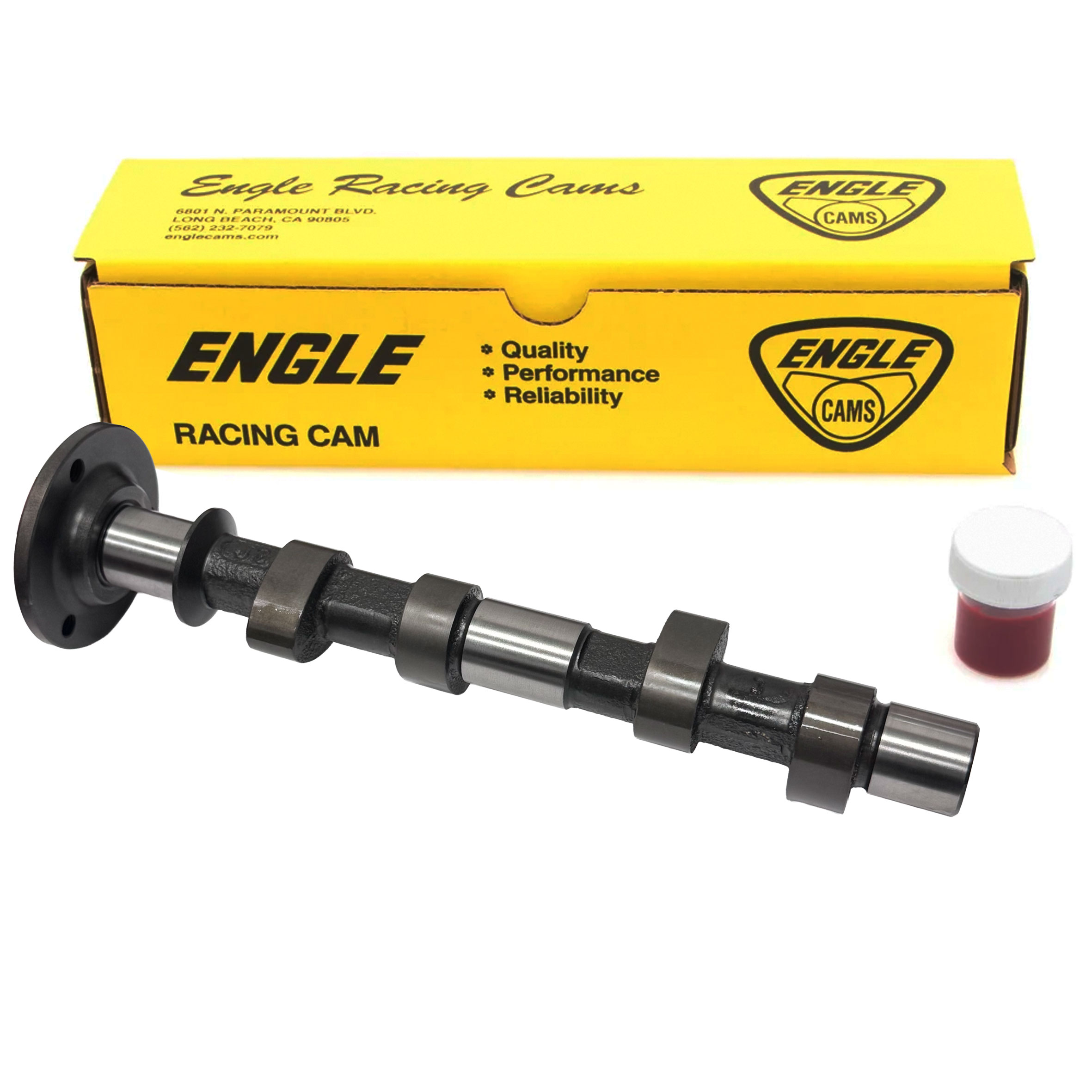

• Red Line assembly lube and cam card with specs included

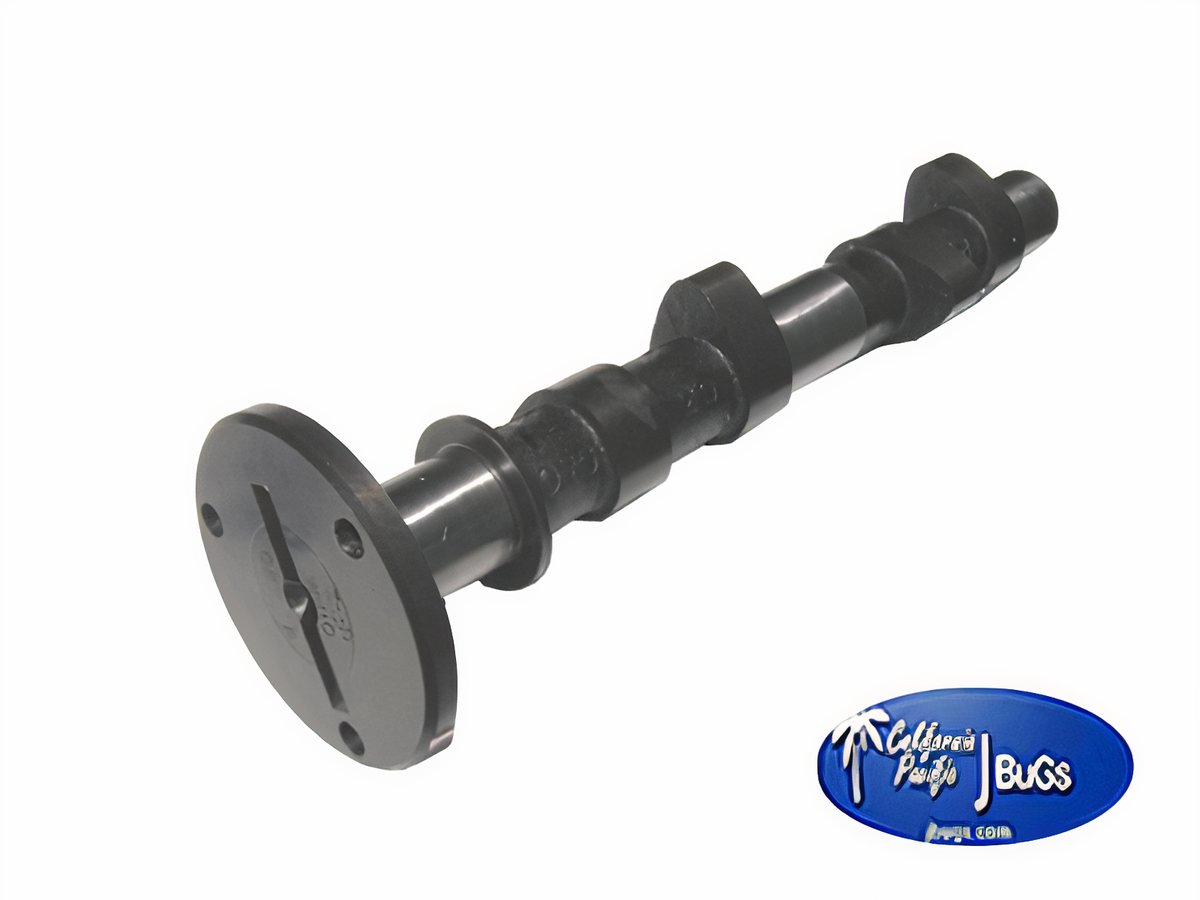

The Engle TCS-30 camshaft is Engle's biggest TCS (turbo cam, 112° lobe separation) cam, designed for high revving turbo engine builds. This cam is more for strip applications with a power band that doesn't start to pull until 3500 rpm and it pulls up to 7500 rpm. 1.25 rockers will bump the range from 4000-8000 rpm. Dual springs are a must at this RPM, single springs just won't be able to handle the high rpm. The more headwork and carburetion the better to let the TCS-30 dual cam profiles work.

Engle TCS Series Camshafts are designed with different intake and exhaust profiles.

The intake profiles of TCS camshafts lift higher and are open longer than the exhaust profiles. The lobe centers on the TCS cams are ground on 112° lobe centers (instead of the standard 108°). The different cam lobes help to improve exhaust scavenging, increases torque, and helps improve power making the most of all the fuel in the combustion chamber. The higher lobe separation helps for turbo applications where the increase boost pressure can cause pre-detonation. It also helps to reduces intake and exhaust overlap which can help boost loss and improve engine idle.

Engle TCS-30 VW Performance Camshaft Specifications:

• .460"/.435" (Intake/Exhaust) Valve Lift with 1.1:1 Rockers
• .523"/.495" (Intake/Exhaust) Valve Lift with 1.25:1 Rockers
• Cam Lift (Intake/Exhaust) - .419”/.396”
• Duration (Intake/Exhaust) - 308°/294°
• Duration at .050” (Intake/Exhaust) - 268°/253°
• Lobe Center - 112°

Valve Spring Recommendations:

• Dual Springs

Recommended Rocker Assemblies:

• HD Rocker Shafts & 1.1:1
• HD Rocker Shafts & 1.25:1

Recommended Compression Ratio:

• 9.5:1 for NA applications
• 8.5:1 for Turbo applications

RPM Range:

• 3500 to 7500 / 4000-8000 (1.25:1)

Recommended Carburetion:

• Single barrel to dual, 2 barrels.

Installation Notes:

All Type 1 performance cams are 3 Bolt, "early style" or "flat cams" and fit Type 1,2 & 3, 1200cc(40hp) to 1600cc based engines. The cam requires a separately sold, bolt on cam gear and must be used with a "flat cam" style oil pump. You can add the gear with the option above, or check out the links below:

• VW Flat Cam Gear - Bolt On
• VW Flat Cam Gear with Adjustable Timing - Bolt On
• VW Straight Cut Flat Cam Gear with Adjustable Timing - Bolt On

New lifters should be installed whenever a new cam is being used. Never reuse old lifters with a new cam! Here are a few of options to consider:

• Stock VW Lifter
• VW 1 Piece Billet 28mm Cam Lifters - Set of 8
• VW 1 Piece Billet 28mm Cam Lifters with Oil Hole - Set of 8

JBugs along with most engine builders, racers and auto enthusiasts, recommends using an engine oil with ZDDP or ZDTP or a ZDDP/ZDTP additive in your oil for all flat tappet camshaft engines!
