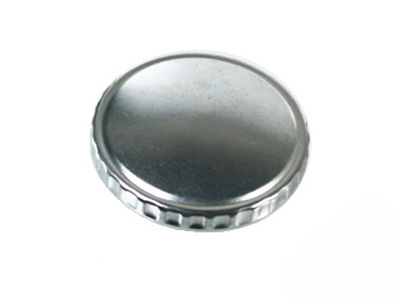

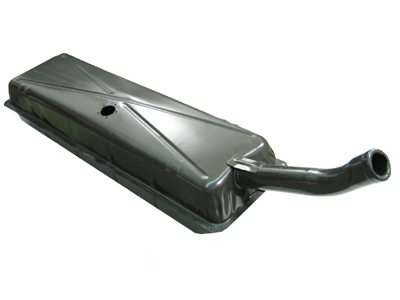

Our VW Gas Tank fits 1955 to 1967 Type 2 Bus models. The tank accepts the stock sending unit as well as the fuel tap and in tank filter at the bottom. The filler neck uses the stock 1955 to 1967 Bus gas cap, part number 211201551. The fuel tap, in tank filter, filler neck collar, along with a replacement sending unit and seal and the gas tank to body seal can be added to the tank by selecting the "Installation Kit" above.
Fuel Tanks should be thoroughly cleaned before installation. Some tanks are lined with cosmoline which can be cleaned out with MEK (Methyl-Ethyl-Ketone), Acetone or a similar solvent. Even if the tank is not lined, it is still important to clean out the tank. Manufacturing debris can clog your fuel lines, carburetor or fuel system!
The Gas Tank Installation Kit Includes:
211-250 - Filler Neck Collar
111209021G - Fuel Tap
111209147A - In Tank Filter
271919051B - Fuel Tank Sending Unit with Seal
111-621B - Gas Tank to Body Seal
All of the items above are included when you select "Add Installation Kit"
from the drop down selection above.
The fuel tank filler neck port has a 3.5mm port for the 3.5mm Vent Hose (linked here)
The fuel tank tap at the bottom of tank has a 5mm port for the 5mm Fuel Hose (linked here)
