94mm Forged Piston & Cylinder Kit - 69mm Crank - Mahle

311198069-94
94mm Forged Piston & Cylinder Kit - 69mm Crank - Mahle
Processing...
Part Number: 311198069-94

NewCondition
$649.95 $552.46
Fits your vehicle This product was made to fit the stock
Modified Fit :
Does not fit This product does not fit the stock
YOUR SAVINGS: March Sale - 15% Off Sietwide
Quantity

Ships free*

*Contiguous U.S. only.

Call Us

Our knowledgable staff can help.
1-800-231-1784
Mon-Fri 7-5pm PST
Jbugs Experts.

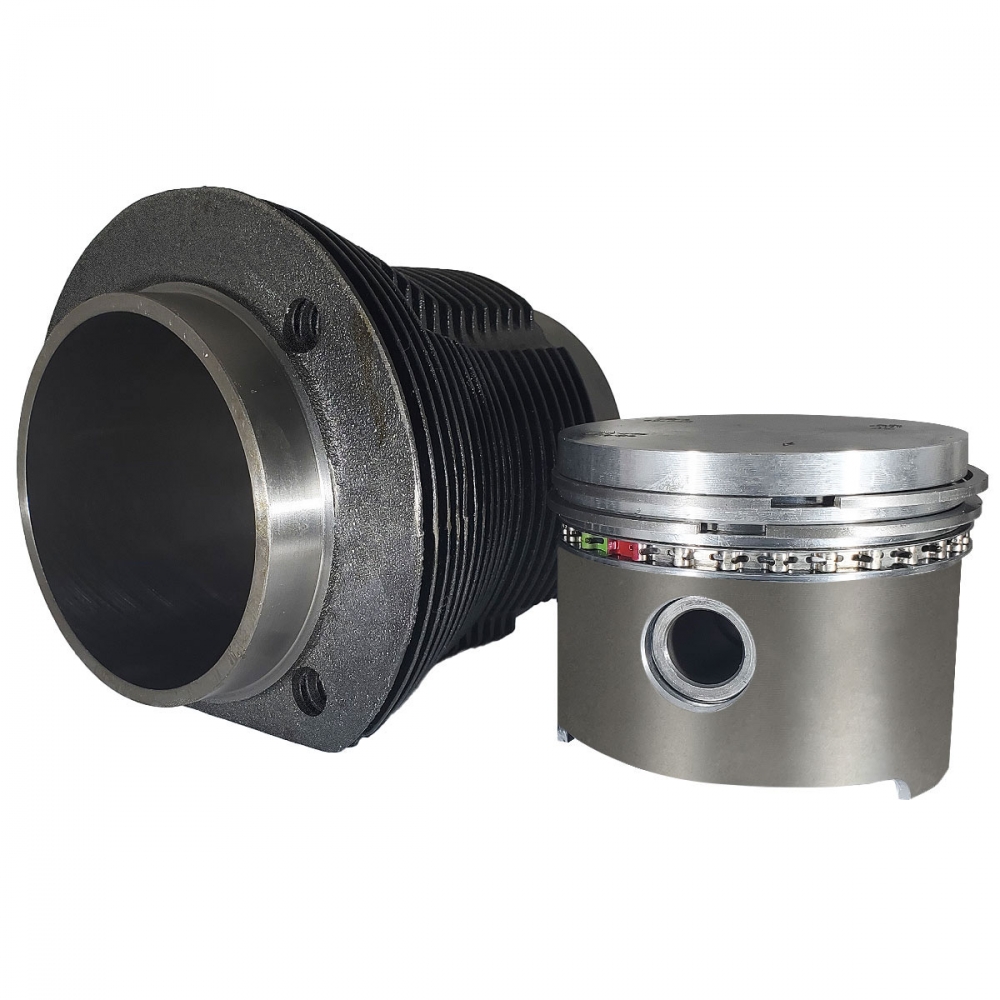

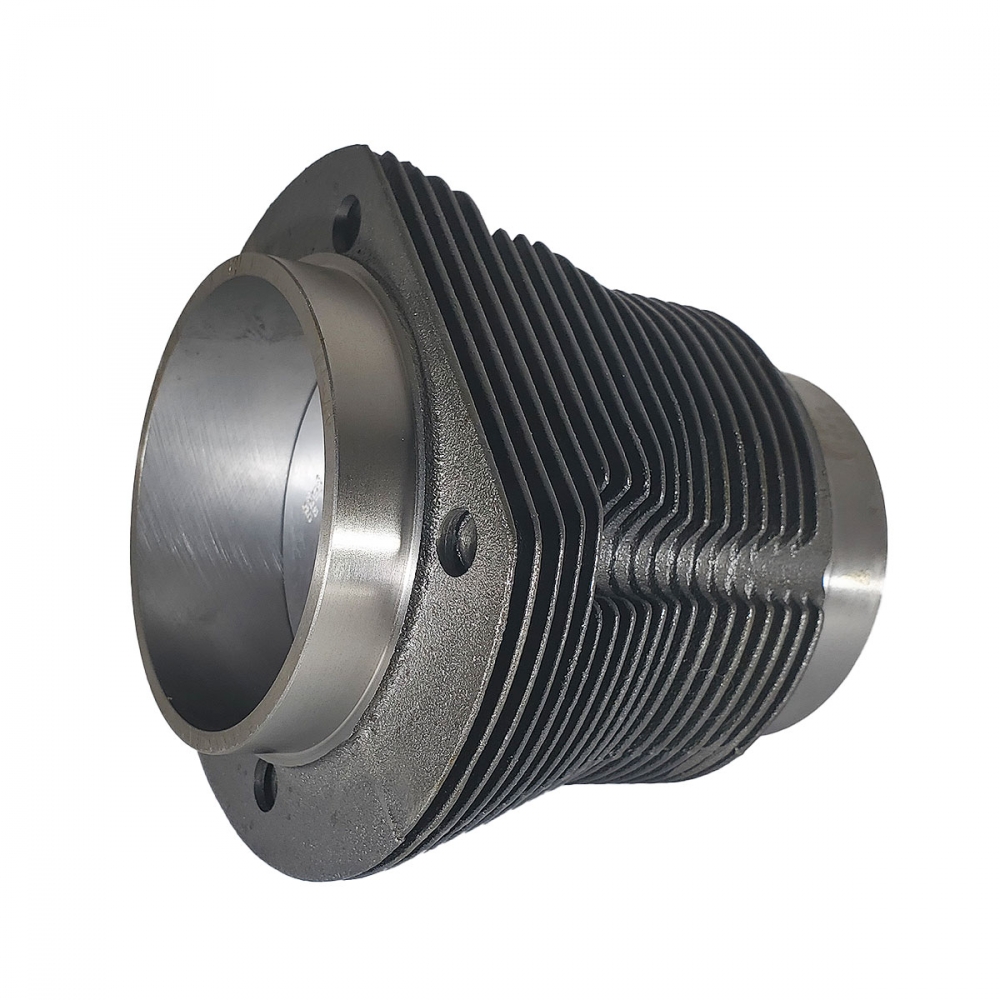

Cima/Mahle 94mm Pistons & Cylinders come as a complete set with Forged Aluminum Pistons, Cast Iron Cylinder Sleeves, wrist pins, clips and piston rings. The cylinders are made for the stock 69mm crankshaft and will fit 1300cc, 1500cc & 1600cc engines after the case and the heads have been machined out to allow for the larger cylinder. Installing the 94mm pistons and cylinders in a 1300, 1500 or 1600cc engine will change the displacement to 1914cc. The 94mm piston and cylinders sets will fit 1966 through 1977 Standard Beetles, 1971 through 1979 Super Beetles, 1966 through 1974 Karmann Ghias, 1963 through 1971 Type 2 Bus Models, 1962 through 1973 Type 3 models and 1973 to 1974 Things once the machine work has been done.

Kit includes:
4 Cylinders, 4 Pistons, 4 Wrist Pins, 8 Wrist Pin Clips, Complete Set Piston Rings

Engine Displacement Size with 69mm Crank:
1914cc

Pistons:
94mm Forged Aluminum

Cylinders:
Cast Iron

Case Machine Work:
Must be machined out for 94mm Cylinders

Head Machine Work:
Requires Cylinder Heads clearanced for 94mm Cylinders


California Prop 65 Warning:
California Prop 65 Warning. Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Compatibility

Please Note:The information listed below is for stock, unmodified VW's manufactured for sale in the US. VW's are commonly modified and very often parts from another year VW may have been installed on your car. California Pacific JBugs is not responsible for any errors if your car has been modified in any way.
VW Beetle
Sedan
1954 - 1977
Ragtop
1954 - 1963
Sunroof
1964 - 1977
Convertible
1954 - 1970
VW Super Beetle
Sedan
1971 - 1975
Convertible
1971 - 1979
VW Karmann Ghia
Coupe
1956 - 1974
Convertible
1957 - 1974
VW Type II (Bus)
Bus
1955 - 1979
Single Cab
1955 - 1979
Double Cab
1958 - 1979
1981 - 1982
VW Type 3
Squareback
1962 - 1973
Notchback
1962 - 1973
Fastback
1966 - 1973
VW Thing
Thing
1973 - 1974

Helpful Hints


Before you Install:
New piston & cylinder kits ship with the piston rings installed in the pistons, inside the cylinders. However, this does not mean they are ready to install. The pistons should be removed so the rings can be properly clocked, then reinstalled before engine assembly can begin. We cover the procedure in the video below.
