Kit includes:

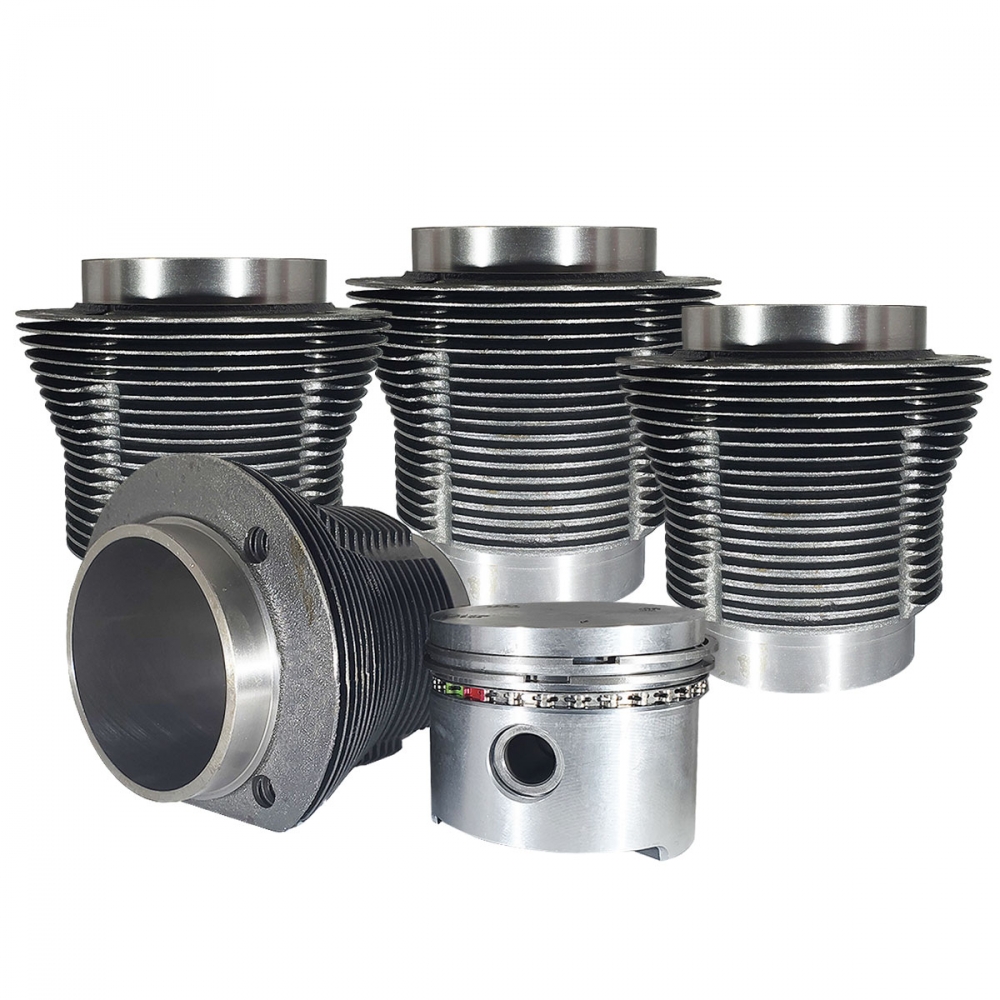

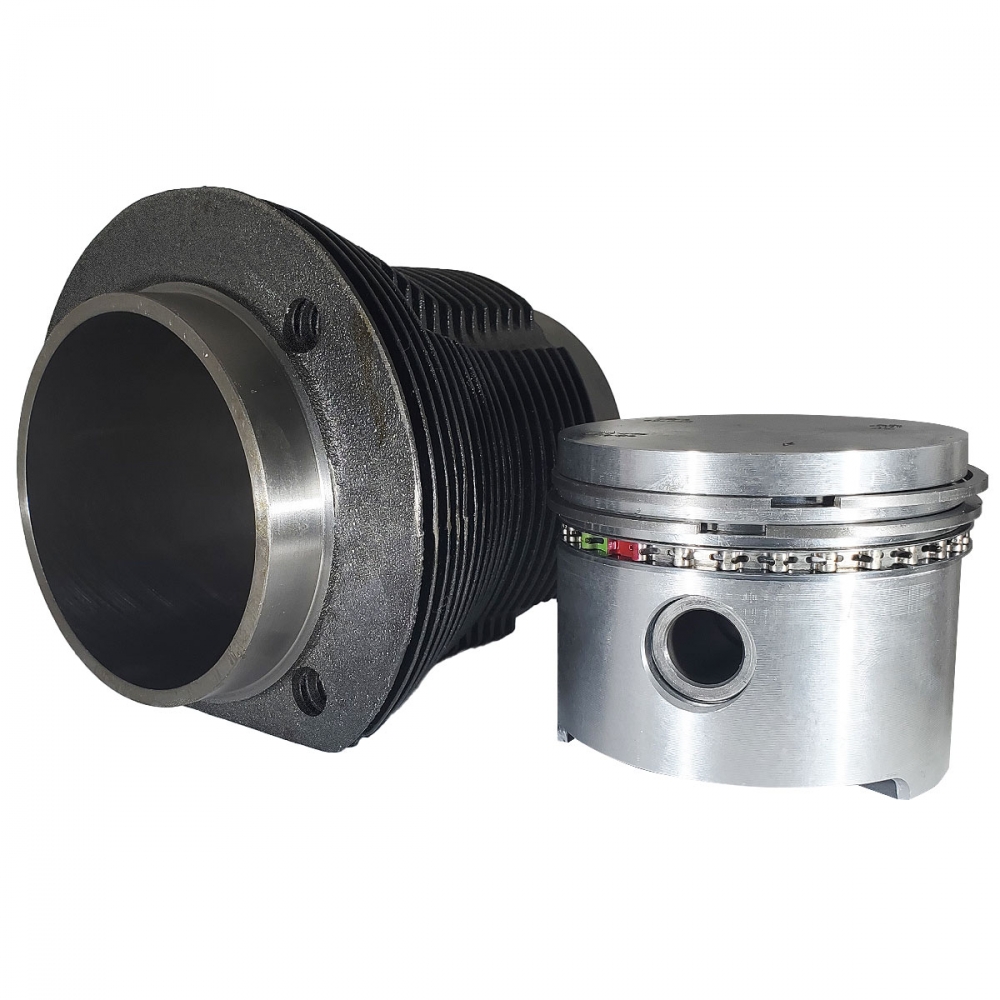

4 Cylinders, 4 Pistons, 4 Wrist Pins, 8 Wrist Pin Clips, Complete Set Piston Rings
Engine Displacement Size with 69mm Crank:
1600cc (actually 1585cc but VW rounded up)
Pistons:

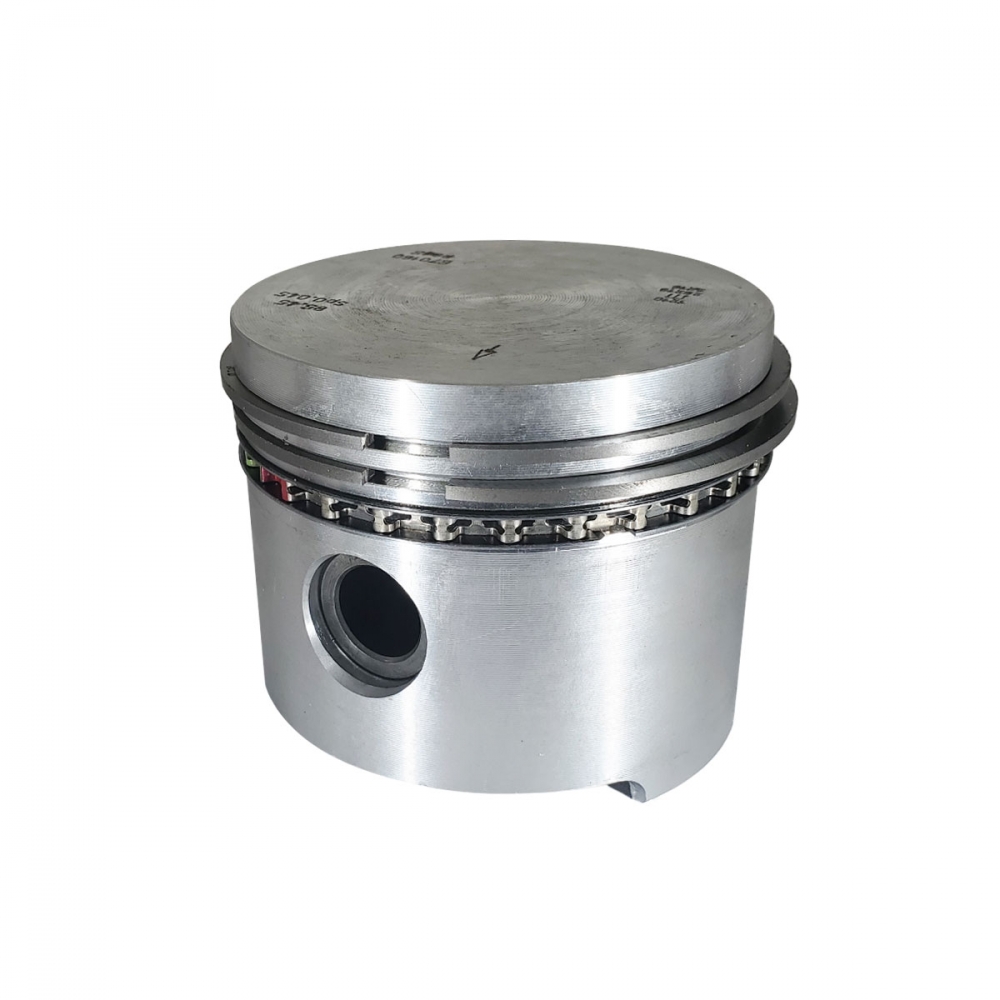

85.5mm Cast Aluminum
Cylinders:

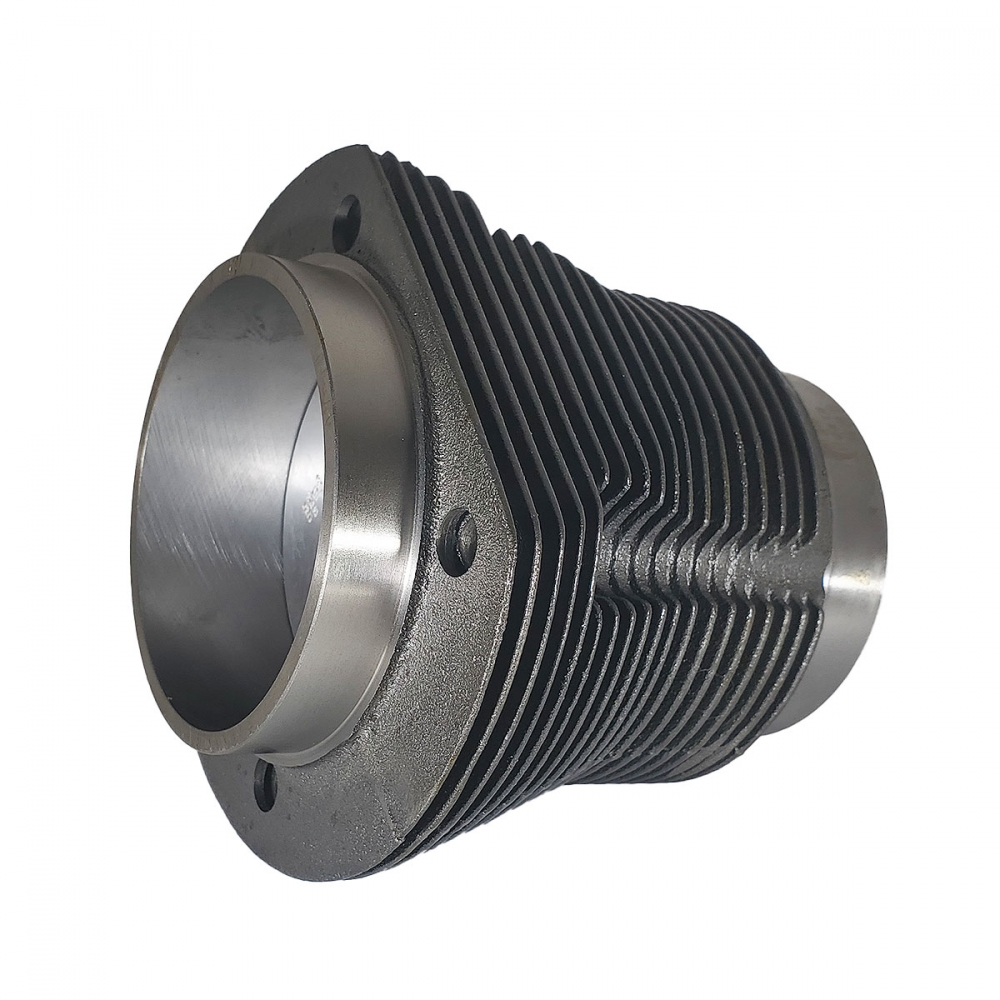

Cast Iron
Case Machine Work:
None Required
Head Machine Work:
1300cc Engines - Require 1500/1600 Cylinder Heads
1500/1600cc Engines - None Required
New piston & cylinder kits ship with the piston rings installed in the pistons, inside the cylinders. However, this does not mean they are ready to install. The pistons should be removed so the rings can be properly clocked, then reinstalled before engine assembly can begin. We cover the procedure in the video below.
