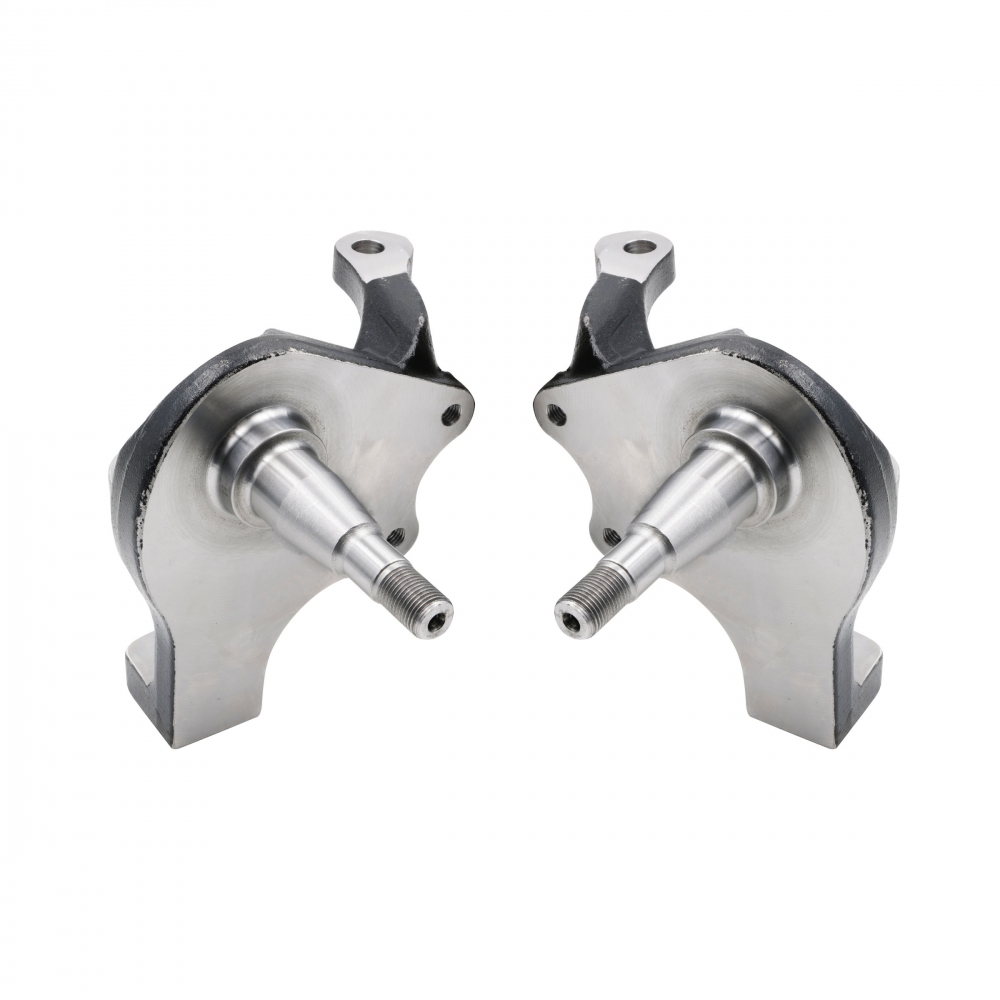

EMPI Forged 2.5 B/J Disc Brake Drop Spindle Set for 2 Piston Caliper

EMPI Zero Offset Forged Drop Spindles for Disc Brake Applications

• Maintains original steering geometry and front track width
• Forged for superior strength and accuracy
• Designed for disc brake applications only
• Improves handling by lowering the center of gravity

Another all new and exclusive item from EMPI! The EMPI Zero Offset Forged Spindles keep the original steering geometry and front track width. EMPI's all-new spindles are forged just like the original equipment to make them stronger and dimensionally accurate. The drop spindles will improve handling by lowering the center of gravity, use stock replacement shocks and can be aligned just like an original spindle. The drop spindles are designed to be used in disc brake applications only. The caliper mounts are 2 3/16"on center for use with Karmann Ghia style calipers and brake rotors.

Approximate Spindle Bearing Collar Dimensions:

• 29mm Inner
• 17.5mm Outer

Important notes:

• Drop spindles are not compatible with Super Beetles!
• Compatible with Type 1 ball joint front ends (Beetle and Karmann Ghia, 1966-1977).
• 1966 through May 1968 models require June 1968 through 1977 inner wheel bearings, wheel seals, and outer tie rod ends.

Additional parts required for 1966–May 1968 vehicles:

• Wheel bearing and seal kit (PN# 22-2851)
• Driver's side outer tie rod end (PN# 311415811C)
• Passenger side outer tie rod end (PN# 311415812C)

Tire recommendations:

• 145R15 tires or shorter recommended with drop spindles
• 135R15 tires or shorter required if using an adjustable beam with spindles

Tire compatibility:

Drop spindles require shorter, smaller-diameter tires to maintain proper driveability. While stock-sized tires may appear to fit when parked, they will rub during driving, especially around corners or over speed bumps. Heavier loads will increase the likelihood of rubbing. For optimal performance, smaller tires are necessary as stock tires will not clear.
