VW Super Beetle Oil Pump & Crank End Play:

Video Overview:

Now that our engine case halves are bolted together, we can continue working on our 1971 Super Beetle's 1800cc stroker engine. In this video we'll drill, tap and plug our oil pump so it will work with our full flow system. Then we'll install the oil pump and the flywheel and set the crankshaft endplay to finish off the short block assembly.


Video Tips:

The tools you will need are:

Drill
5/8" Drill Bit
3/8" NPT Tap
11mm Socket
13mm Socket
Torque Wrench
3/8" Drive Ratchet
6" Extension
13mm Socket
16mm Socket (12 Point)
11/16" Deep Well Socket
8mm Allen Driver
1/2" Drive Ratchet
36mm Socket
Flywheel Lock
13mm Wrench
Deluxe Flywheel Seal Installer
Torque Multiplier Tool
Flathead Screwdriver
Dial Indicator With Magnetic Base
Digital Calipers
Air Powered Angle Grinder With Burr Bit
Air Powered Angle Grinder With Sanding & Scour Pads
Measuring Tape
Permanent Marker


The chemicals you will need are:

Red Thread Locker
Blue Thread Locker
Parts Cleaner
GasGaCinch
Copper

Video Transcript:

Hello I'm Sam with JBugs.com

We're in the midst of out 1971 Super Beetle engine rebuild and in out last video we got the short block bolted together. With the engine taking shape, we can set the crankshaft end play and install a flywheel, but we'll start by modifying our new oil pump to work with our full flow system. A full flow kit will allow us to run an oil line out of the engine, from the pump to a filter then into an oil cooler if we'd like and then back into our engine.



Our new oil pump is a 26mm unit made for late model dual relief cases using a flat cam. We need to block off the stock exit port on the pump so that it will push oil out of the pump cover that will be installed later. We tighten the pump in our bench vice, with rubber pads on either side so that the pump isn't damaged. The exit port is the upper left side of the oil pump as the pump would sit in the case at the left of the oil pump drive gear hole. A 5/8" drill bit is used to open up the port in the pump for a threaded plug and a 3/8" NPT tap is used to cut the threads in the port on the oil pump.



With the threads cut into the pump, we test fit the threaded plug and note that it sticks out just a bit .We unthread it and grind down the high portion with a sanding disc. A burr bit is used to clean up any rough surfaces inside the oil pump caused by drilling and tapping. A scuff pad is used to clean up the outer diameter of the pump where we drilled and cut the threads. Don't take too much material off the pump, just remove any high surfaces.



The threads on the plug are coated with red thread locker and it's threaded down into the oil pump and tightened. The oil pump and gears are cleaned and we check that the gears spin freely in the pump. Because we have a thicker than stock oil pump and an aluminum cover, the four stock oil pump studs are removed from the case. We thread a nut onto the stud, insert it through the pump cover and the oil pump and mark how much thread on the stud is remaining. The stud is coated with blue thread locker and threaded into the engine case up to the mark we made.



We measure how much thread is sticking out of the case and thread the other three studs into the same depth after applying blue thread locker. The inner oil pump gasket is coated in GasGaCinch and slid onto the studs. It's followed by the oil pump. The pump gears are installed making sure that the cam drive gear aligns with the camshaft. The marks in the gears don't have to line up, just make sure they're both visible.



The outer pump gasket is coated with a thin film of Copper RTV and slid into place, followed by the oil pump cover which is aligned with the outlet pointing to the left side of the engine. Oil pump sealing nuts are threaded onto the studs and tightened down to 14-foot-pounds, along with the two engine case nuts above and the nut and bolt below the oil pump again to 14-foot-pounds. The threads on a barb post fitting are coated with blue thread locker and the fitting is threaded into the pump cover and tightened down.

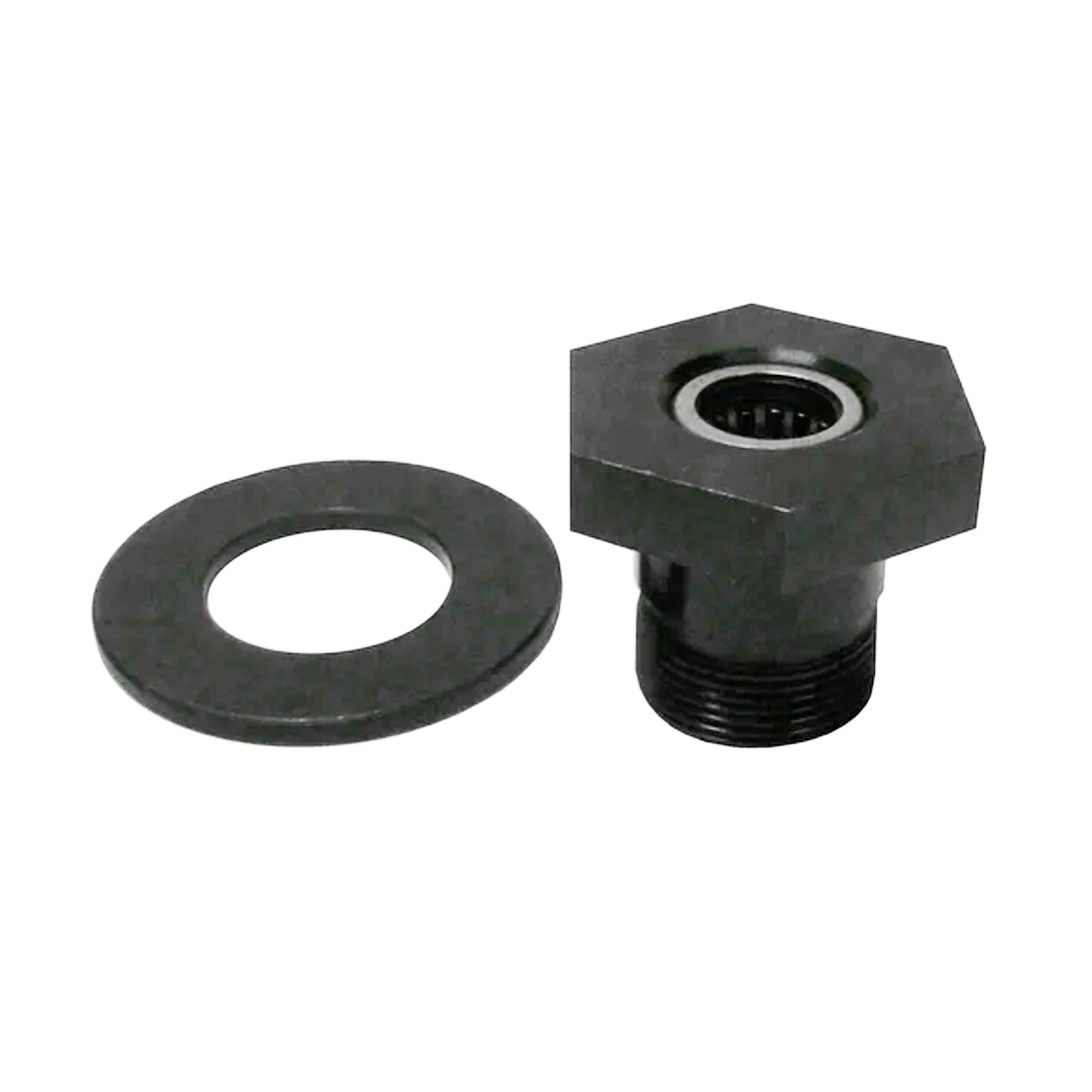

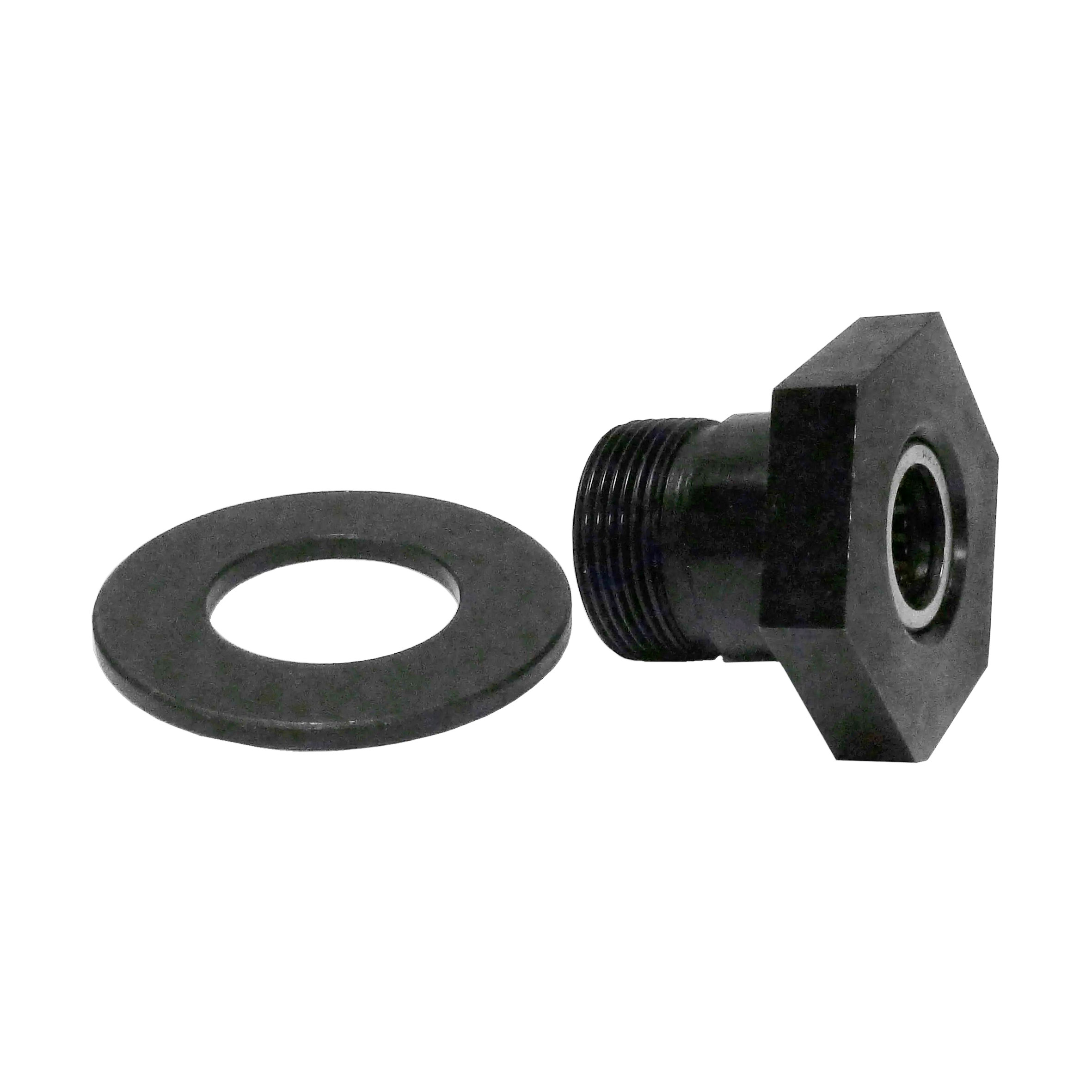

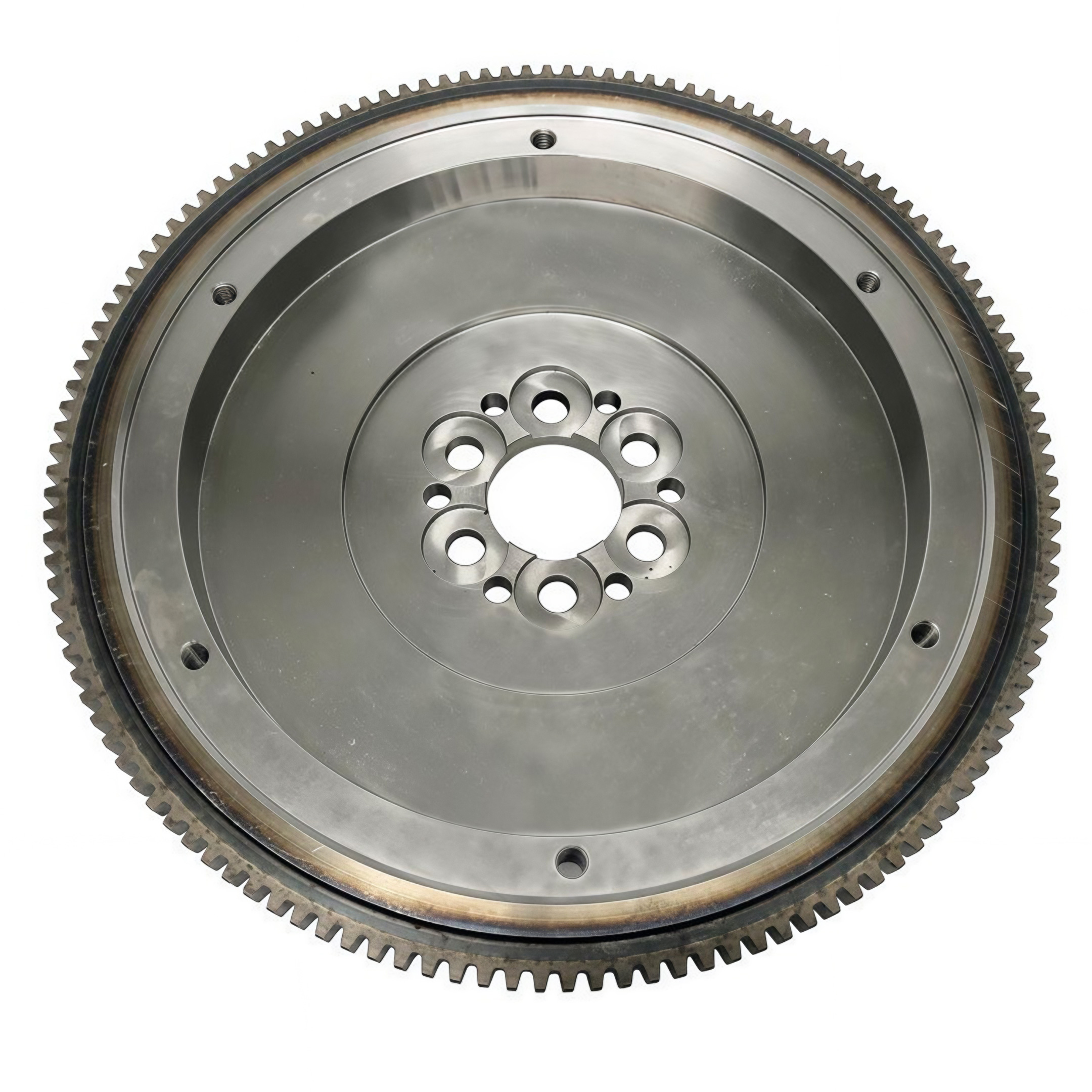

Now, at the back of the engine, we set out new flywheel onto the crankshaft and tap it into place. A new Chromoly gland nut is threaded into the crank to hold the flywheel in place and tighten it down. Now, our first specialty tool is brought out. We have a dial indicator with a magnetic base. They aren't too costly and they will be used again later in our engine build. The magnetic base is used to attach the dial indicator to the face of the flywheel when the flywheel is pulled or pried away from the engine. The dial indicator is set by moving the arms and tightening the set screws for the arms so that the end of the indicator is sitting against the bell housing of the engine.



The fine adjustment knob, on the indicator, is turned so that we can zero out the end needle. We turn the gauge to zero out the dial. By pushing the flywheel back and forth we can see that we have 0.044 of an inch of end play currently. When the end play is set we want to have 0.003-0.005 of an inch. Aiming for the middle, we need to add three shims that together ate 0.040 of an inch thick. The dial indicator is pulled off of the flywheel, the gland nut is unbolted from the crank, and the flywheel and dowel pin are marked so lining up the offset pin later will be simple.



The flywheel is removed and we install three new cleaned flywheel shims. Two 0.34mm and one 0.36mm which will give us about 0.040 of an inch onto the crank. We reinstall the flywheel and tighten the gland nut while using a flywheel lock to prevent the flywheel from turning. The dial indicator is set in place and zeroed out again. We pull the flywheel back and forth and we can see that we have 0.003 of an inch, which is in spec. We can pull the flywheel off one last time and install a lubed O-ring into the groove on the flywheel.



At the engine, a new rear main flywheel seal is lubed on the inside diameter and pressed into the engine by hand at first. We follow that up with a flywheel seal installation tool which is tightened to push the seal all the way into the engine case. The seal should be recessed slightly from the surface, not flush with the case. The tool is un-threaded, the flywheel is set back into the crank again the gland nut is threaded into the crank and a flywheel lock is threaded onto the engine stud.



A torque wrench is used to tighten the gland nut to 26-foot-pounds or 235-foot-pounds if the torque tool isn't used. We like the torque tool as it doesn't require bracing the engine and stand to tighten the gland nut. With the gland nut torqued we check the end play one more time to verify the end play is in spec and we'll take a break here until our next video. There we'll start the assembly of our top end and install the head studs, test fit our pistons and cylinders, CC our head, and set up the compression ratio for our engine.
