VW Tech Article: Stock Rocker Arm Diagram
| Number | Image | Product Code | Description | Cart |
|---|---|---|---|---|
| 1 |
|

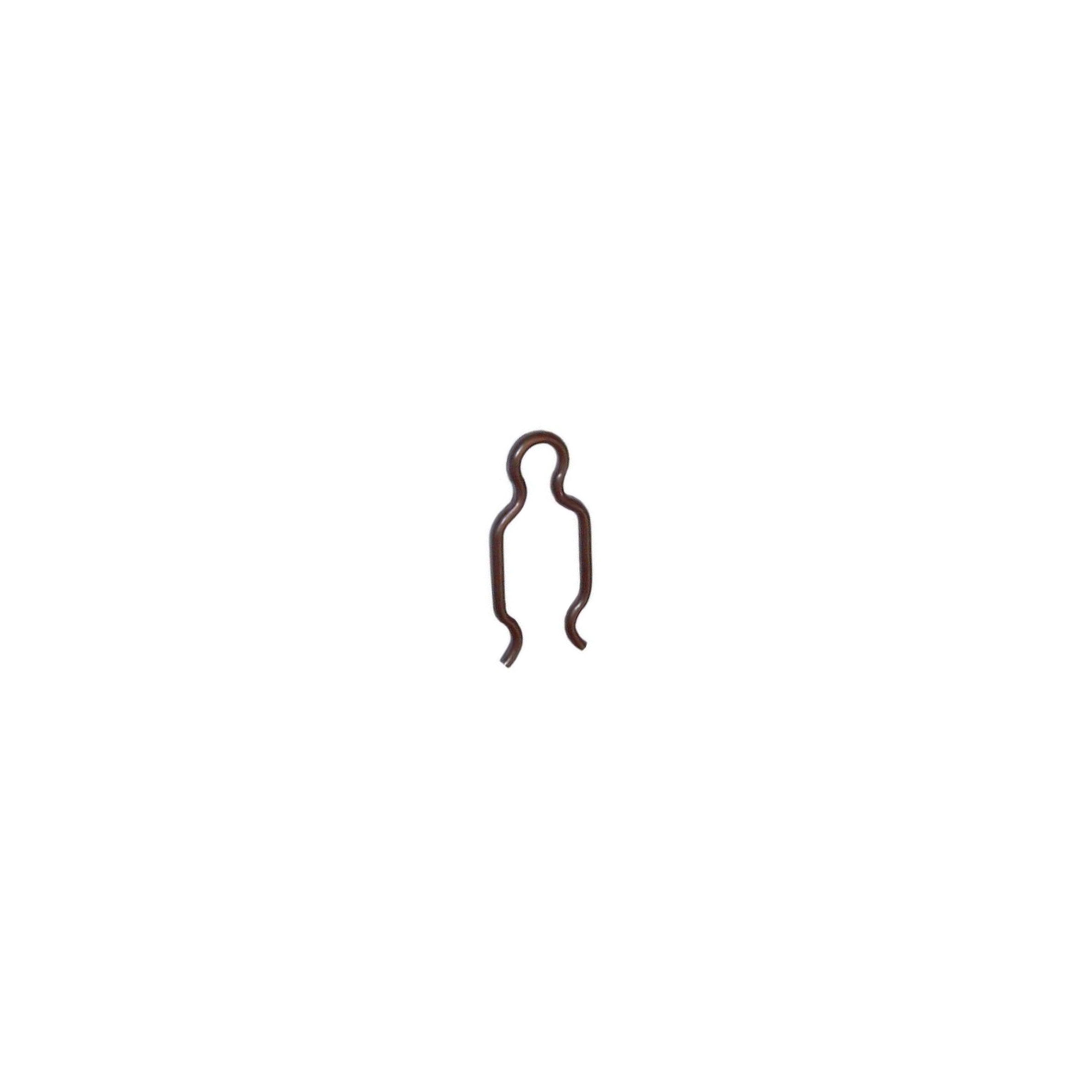

113109439 | Rocker Shaft Clip - Type 1, 1300-1600cc Based Engines |
|
| 2 |
|

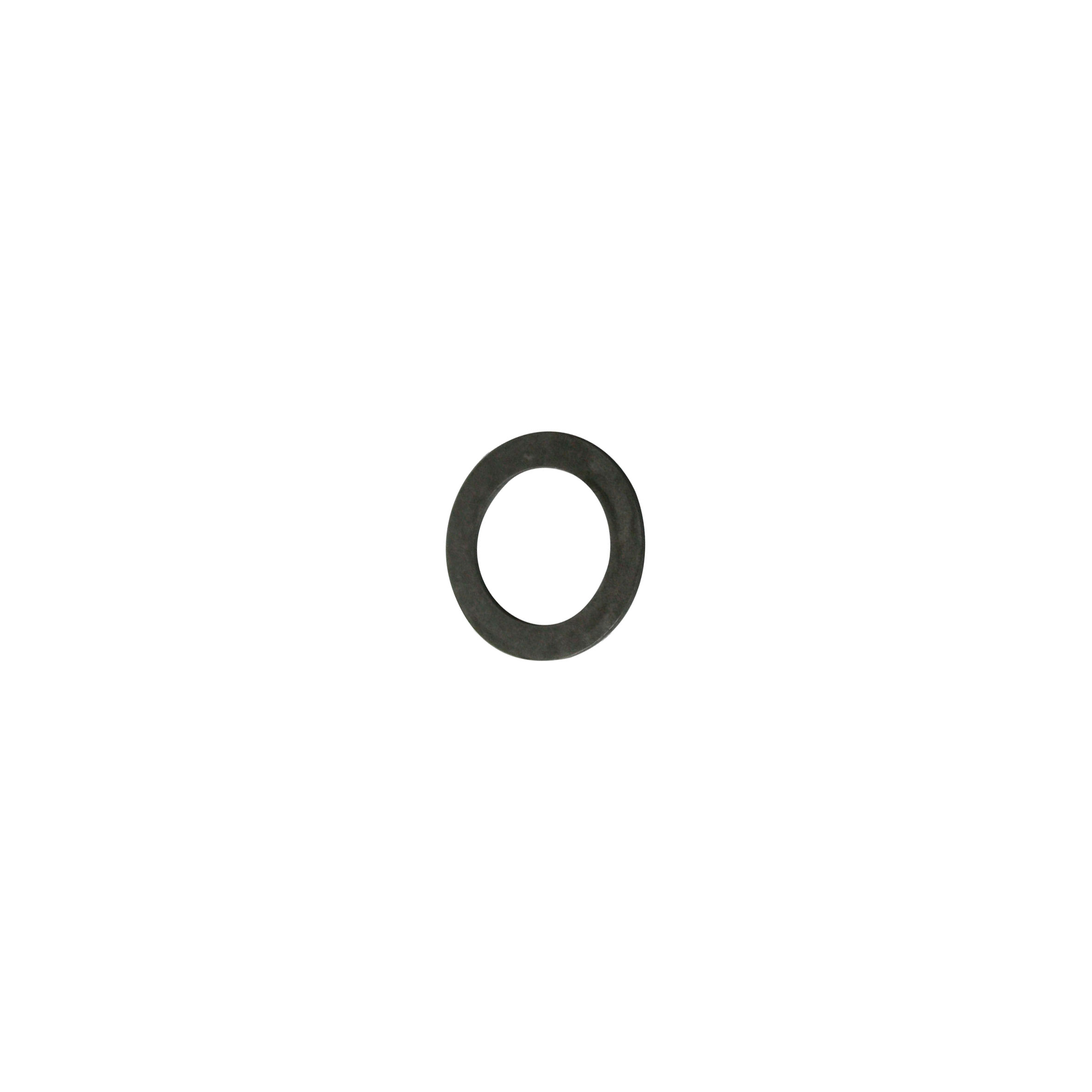

113109435 | Rocker Shaft Flat Washer - Type 1, 1300-1600cc Based Engines |
|
| 3 |
|

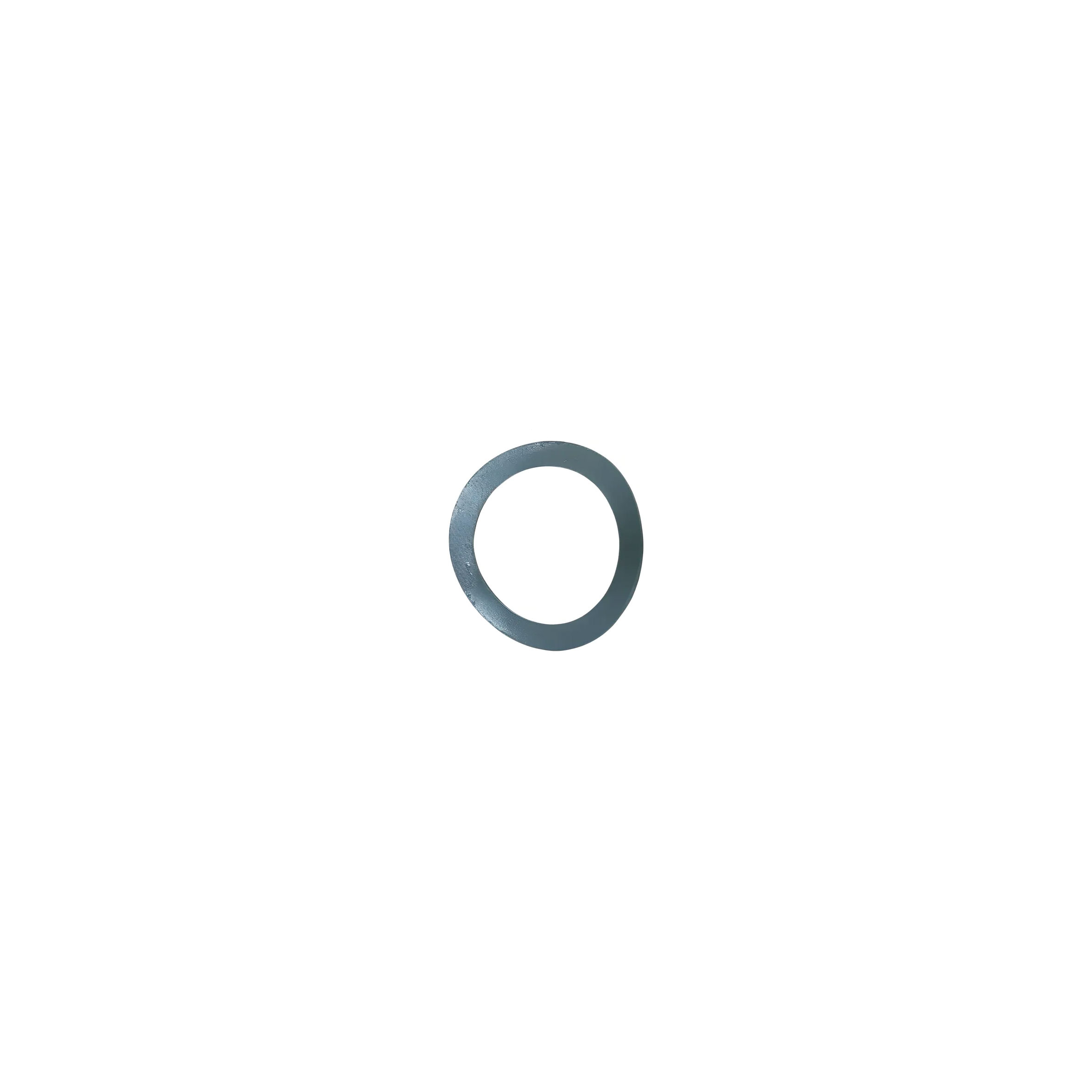

113109437 | Rocker Shaft Wave Washer - Type 1, 1300-1600cc Based Engines |
|
| 4 |
|
21-2312 | Rocker Arms (1.25 Ratio Forged, Set of 8) | |
| 5 |
|

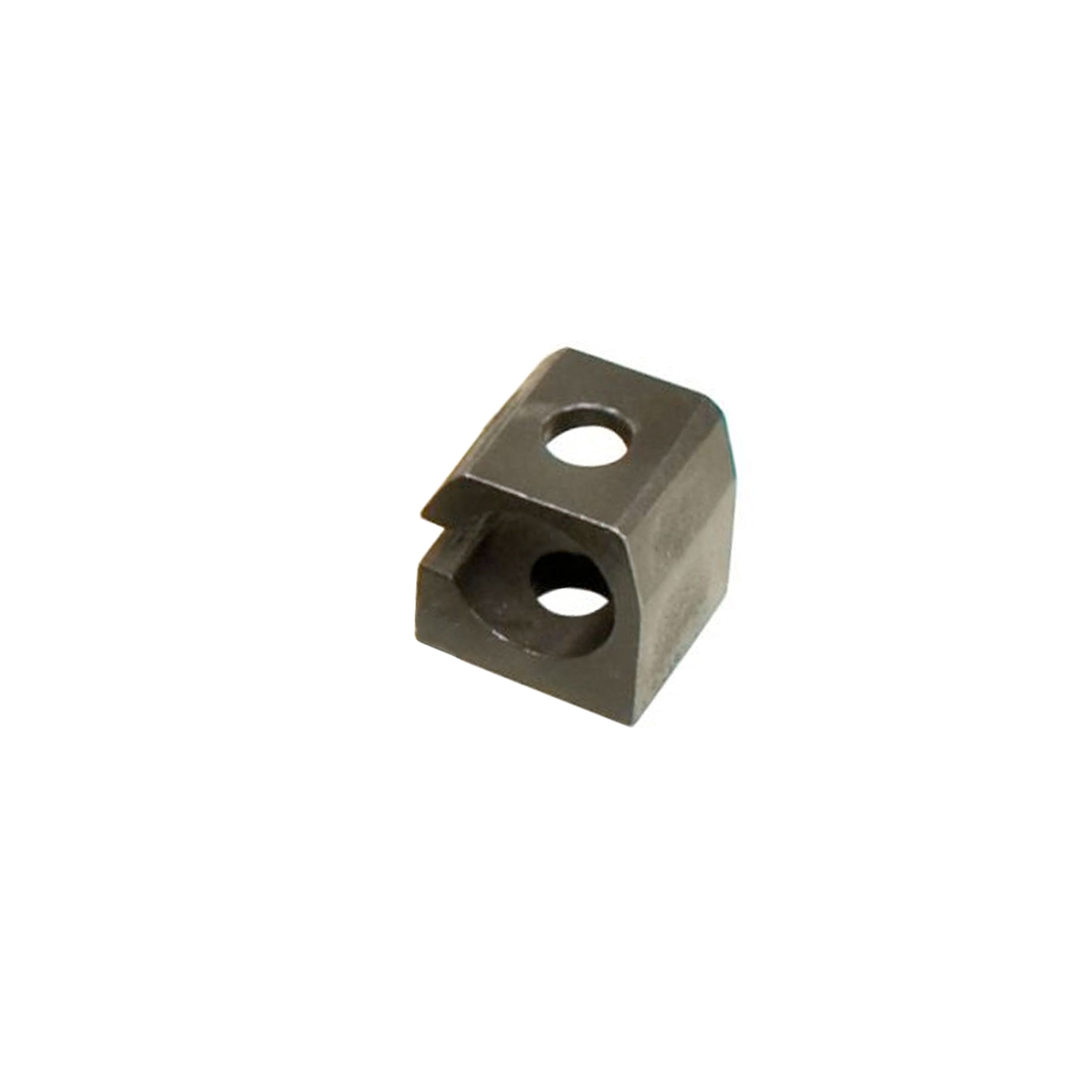

113109427C | Rocker Shaft Mounting Block - Type 1 1300-1600cc Based Engines |
|
| 6 |
|
21-2314 | Rocker Shaft Studs (Set of 4) | |
| 7 & 8 |
|
111109451-4 | Valve Adjustment Screw and Nut Set | |
| 9 |
|
N110088 | Rocker Shaft Stud Nut (Metric 8x1.25mm) | |
| 10 |
|
Rocker Shaft - Type 1 1200(hp)-1600cc Based Engines - Each |
Not Currently Available
|
