VW Master Cylinder Plug - 1972 and later Beetle - Super Beetle- Ghia - Vanagon - Syncro

Part Number: 113611817A

Notify Me When In Stock

Free Shipping

Orders over $100 qualify for free shipping.
**Contiguous U.S. only.

Free Shipping

Orders over $100 qualify for free shipping

Contiguous U.S. only

No Restock Fees

60-day returns for items not installed and in like-new condition

Descrip
tion

Fits
Years
Shipping
Return
s
Q&A

Shipping & Returns

Product Description

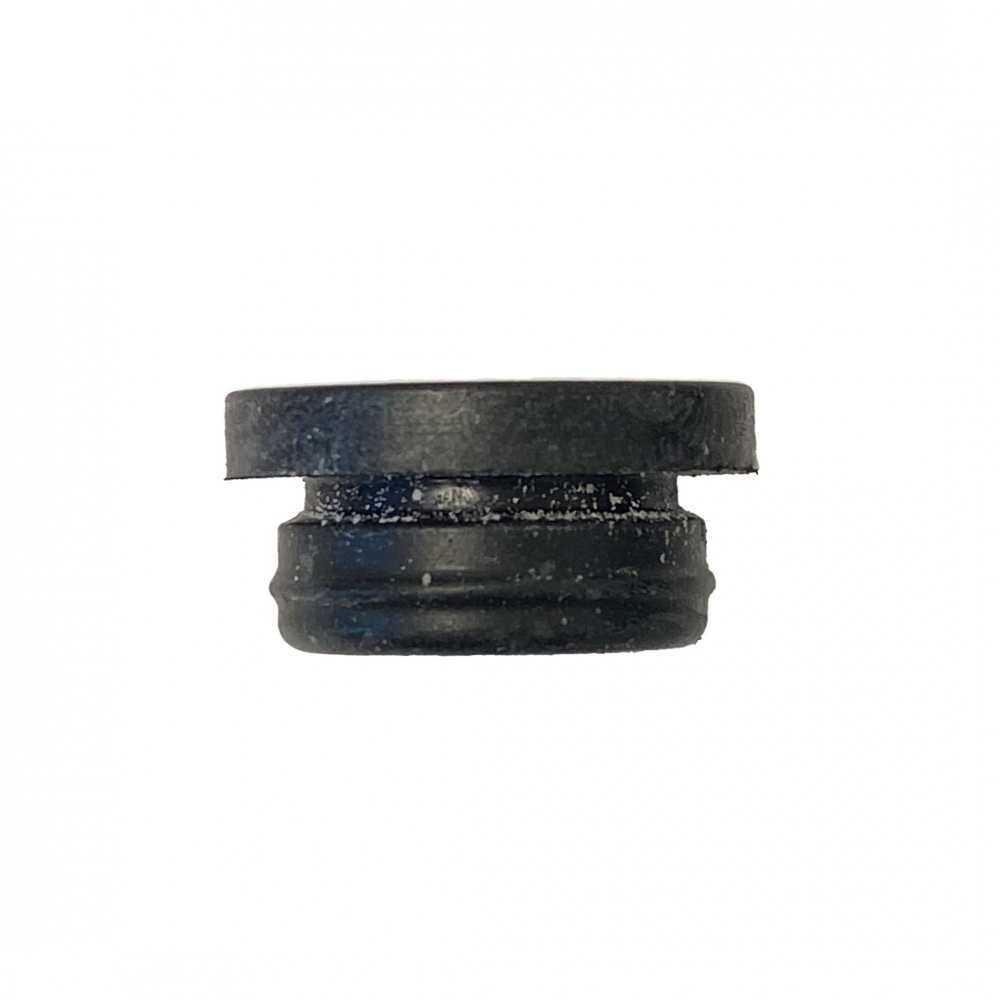

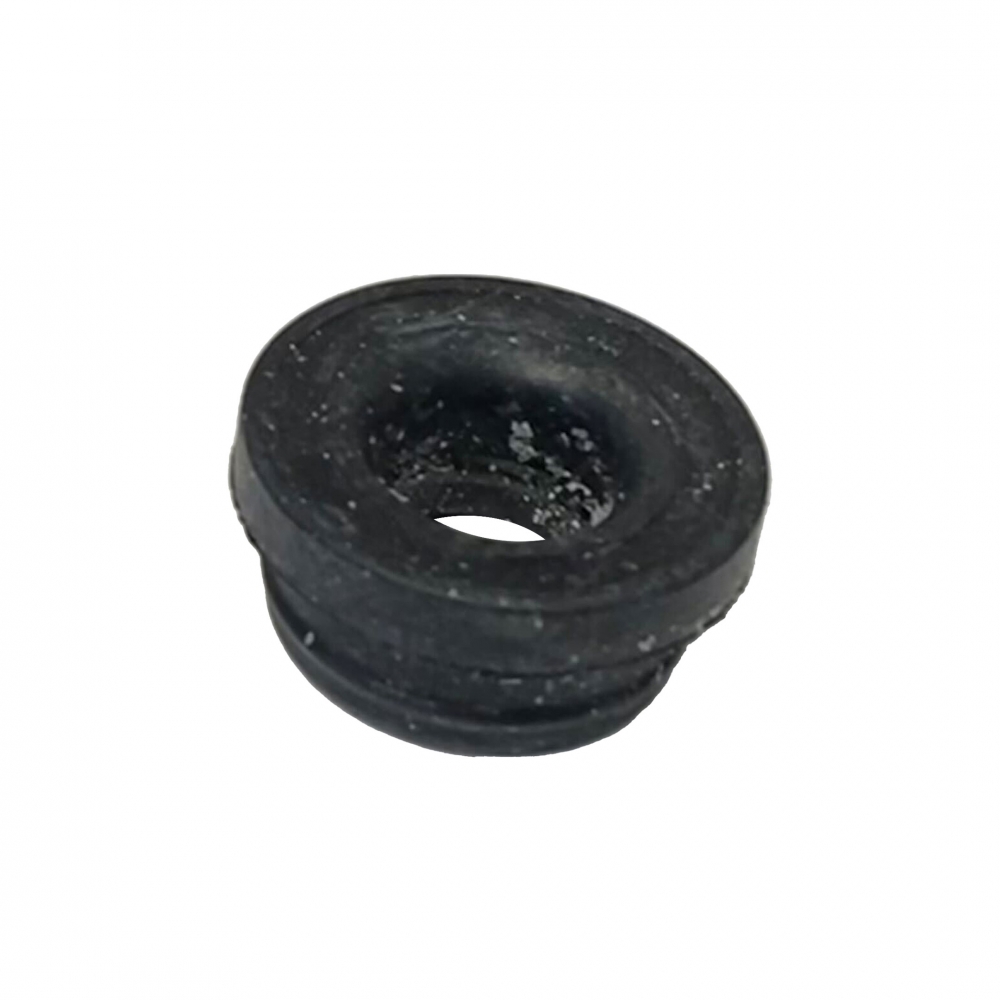

The VW Master Cylinder Plug installs in the top of the master cylinder and holds the feed line in place. The plug or master cylinder grommets are sold individually, two are needed for 1972 through 1977 Standard Beetles, 1972 through 1979 Super Beetles, 1972 through 1974 Karmann Ghias, 1980 through 1991 Vanagons and 1986 through 1991 Syncros. The grommet has a 12mm ID inlet and 21.5mm OD to hold and seal the feed port (113611153C) to the master cylinder.

Fitment - 19mm Inlet Master Cylinders:

Original Master Cylinders -
1972-1977 Standard Beetle
1972-1979 Super Beetle
1972-1974 Karmann Ghia

Brazilian and aftermarket made replacement Master Cylinders -
1967-1977 Standard Beetle
1971-1979 Super Beetle
1967-1974 Karmann Ghia

Master Cylinder Plug	Plug Inlet	Port Diameter (Narrow)	Port Diameter (Wide)	Use w/ Feed Tube
113611817	5mm	14mm	17mm	• Steel Line 113611805B
211611817A	7mm	14.5mm	16.5mm	• Plastic Feed Tube113611153
113611817A	12mm	18.5mm	21mm	• Plastic Feed Tube 113611153C • Top mount reservoirs

Read Jaime's Bio

Our Expert's Take:

"Bloom” is a milky dusting of dry powder on the surface of new rubber products. Typically, this is caused by unused vulcanizing agents migrating to the surface of the rubber part. This is often found on new master cylinder plugs. This MUST be thoroughly cleaned prior to installation or a fluid leak will occur. Coating the plug with brake fluid prior to install can help with lubrication and a better seal during and after install.

Jaime

California Prop 65 Warning:

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Compatibility

Please Note:The information listed below is for stock, unmodified VW's manufactured for sale in the US. VW's are commonly modified and very often parts from another year VW may have been installed on your car. California Pacific JBugs is not responsible for any errors if your car has been modified in any way.

VW Beetle

Sedan

1967 - 1977

Sunroof

1967 - 1977

Convertible

1967 - 1970

VW Super Beetle

Sedan

1971 - 1976

Convertible

1971 - 1979

VW Karmann Ghia

Coupe

1967 - 1974

Convertible

1967 - 1974

VW Type 3

Squareback

1967 - 1973

Notchback

1967 - 1973

Fastback

1967 - 1973

VW Thing

Thing

1973 - 1974
