VW Tech Article: Chassis Seal Diagram
| Number | Image | Product Code | Description | Cart |
|---|---|---|---|---|
| 1 |
|
113-293D | 1958-71 Clutch Tube Boot | |
| 2 |
|
311-363 | 1971-79 Clutch Tube Boot | |
| 3 |
|
211-365A | 1954-77 Clutch Tube Seal | |
| 4 |
|
311-342 | 1962-65 Transmission Mounting Sleeve | |
| 5 |
|
113-411 | Heater Cable Tube Boots | |
| 6 |
|
111209189A | Fuel Line to Chassis Grommets | |
| 7 |
|
113-115A | Shock Pads - Body to Chassis - 10mm | |
| 8 |
|
311-191 | 1960-79 Rear Suspension Stops |
|
| 8 |
|
16-5125 | 1960-79 Rear Suspension Stops (Urethane) | |
| 9 |
|
111-245-L-R | 1954-59 Outer Spring Plate Bushing - Swing Axle | |
| 9 |
|
113-245-L-R | 1960-68 Outer Spring Plate Bushing - Swing Axle | |
| 9 |
|
133-246-L-R | 1968-79 Outer Spring Plate Bushing - I.R.S | |
| 10 |
|
113-605 | Floor Pan to Body Seal | |
| 11 |
|
W-2600 | Battery Rust Rug | |
| 12 |
|
113898740 | Tarboard Floor Insulation | |
| 13 |
|
111-707 | Battery Cable Grommet | |
| 14 |
|
211-751 | Brake Line Grommets - 4 Piece Set | |
| 15 |
|
113-195 | 1954-79 Master Cylinder Plunger Boot | |
| 16 |
|

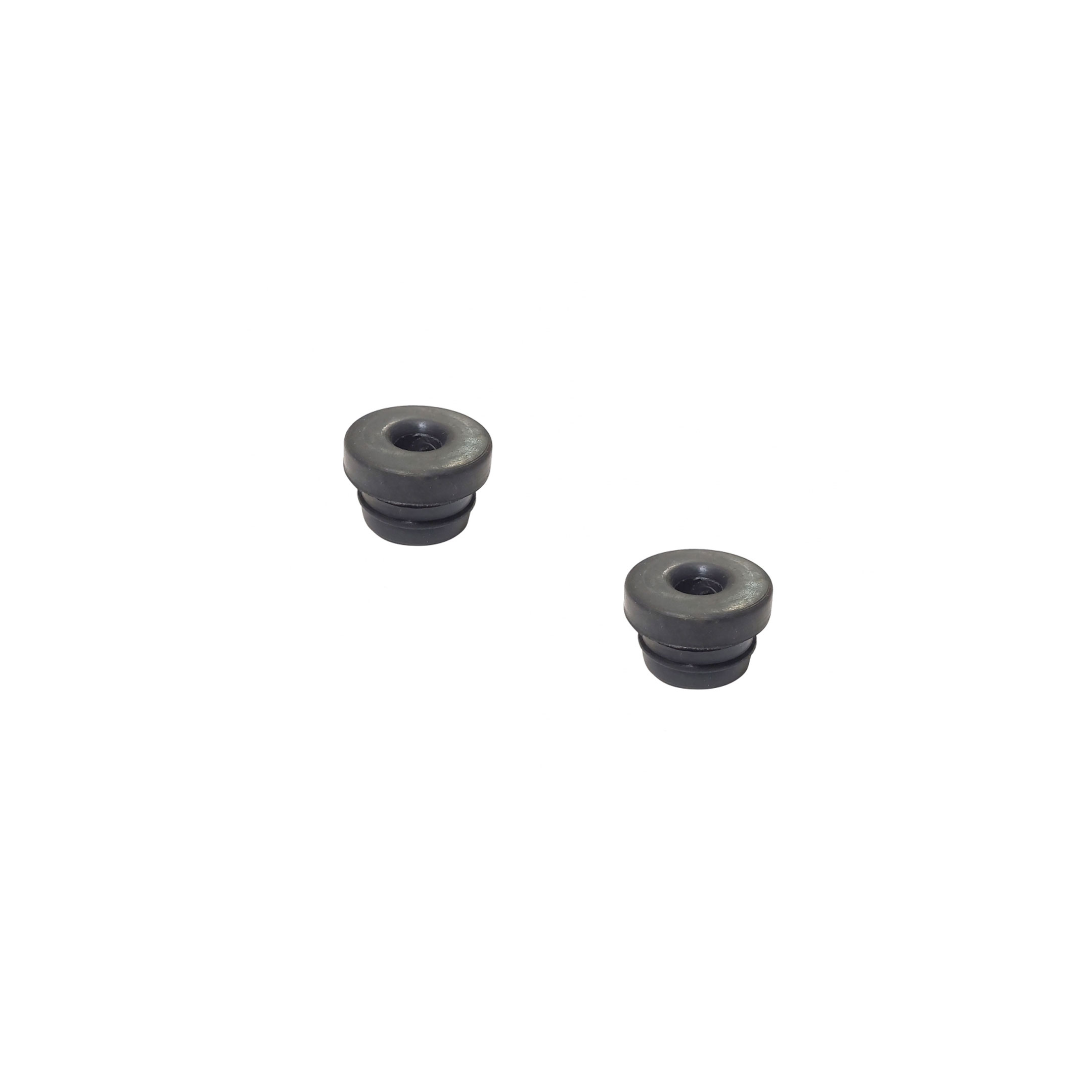

113611817 | 1950-66 Master Cylinder Plug | |
| 16 |
|
211611817A | 1967-74 Master Cylinder Plug | |
| 16 |
|
113611817A | 1972-79 Master Cylinder Plug | |
| 17 |
|
111-355 | Master Cylinder Brake Switch Boot | |
| 18 |
|
113-571 | 1954-65 Tunnel Inspection Cover Seal | |
| 19 |
|
131-571 | 1966-79 Tunnel Inspection Cover Seal | |
| 20 |
|
111-273 | 1954-65 Link Pin Front End Front Suspension Stops | |
| 20 |
|
16-5109 | 1954-65 Link Pin Front End Front Suspension Stops (Urethane) | |
| 21 |
|
111415417 | 1954-77 Steering Coupler Disc | |
| 22 |
|
113-115 | Front Beam to Body Shock Pads - 17mm |
|
| 23 |
|
111-123A | Front Beam to Body Shock Pads - Top U-Channel | |
| 24 |
|
111-601B | 1954-1967 Beetle Steering Column Base Collar through Firewall | |
| 25 |
|
113415607A | 1968-77 Beetle Steering Column Base Collar through Firewall | |
| 26 |
|
113415607B | 1971-79 Super Beetle Steering Column Base Collar through Firewall | |
| 27 |
|
111-602T | 1954-67 Steering Column at Dash Collar | |
| 28 |
|
113-547 | 1968-74 Steering Column Horn Wire Seal |
