EMPI Heavy Duty VW IRS Spring Plates for 24 11/16" Torsion Bars
Part Number: 17-2788
Free Shipping
Orders over $100 qualify for free shipping.
**Contiguous U.S. only.
**Contiguous U.S. only.
Free Shipping
Orders over $100 qualify for free shipping
Contiguous U.S. only
No Restock Fees
60-day returns for items not installed and in like-new condition
-
Description
-
Fits Years
- Shipping
-
Returns
- Q&A
- Shipping & Returns
Product Description

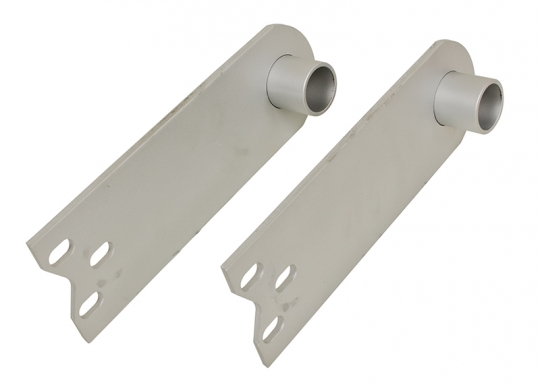

EMPI's Heavy Duty VW IRS Spring Plates are sold as a pair and have a 4 1/4" collar for use with 24 11/16" torsion bars. The silver painted spring plates are not for any stock VW application but can be used on 1973 through 1974 Things if an additional hole
is drilled into the plate. Spring plates slide over the rear torsion bars and are held in place by the spring plate cover. The torsion bar is a torsional bar that acts in place of a traditional spring to hold up the rear of the car. The trailing arm bolts
to the spring plate, connecting the rear axle, wheel and suspension to the torsion bar. The plates ride in rubber (or urethane bushings) to prevent metal on metal contact. Heavy duty spring plates require 1 3/4" inside diameter inner spring plate bushings
and 1 7/8" inside diameter outer spring plate bushings. Stock rubber bushing will not fit with the heavy duty spring plates.
Wondering what spring plate bushings you need? Click here for our Spring Plate Bushing Reference Chart!
Wondering what spring plate bushings you need? Click here for our Spring Plate Bushing Reference Chart!
Warning: Cancer and Reproductive Harm - Compatibility
Please Note:The information listed below is for stock, unmodified VW's manufactured for sale in the US. VW's are commonly modified and very often parts from another year VW may have been installed on your car. California Pacific JBugs is not responsible for any errors if your car has been modified in any way.
VW Beetle
Sedan
1968 - 1972
Sunroof
1968 - 1972
Convertible
1968 - 1970
VW Super Beetle
Sedan
1971 - 1972
Convertible
1971 - 1972
VW Karmann Ghia
Coupe
1971 - 1972
Convertible
1971 - 1972
VW Thing
Thing
1973 - 1974
