EMPI 1954-1965 VW Beetle & Karmann Ghia Disc Brake Conversion Kit - Front - Bolt-On - 5x205 Wide 5

22-2880
EMPI 1954-1965 VW Beetle & Karmann Ghia Disc Brake Conversion Kit - Front - Bolt-On - 5x205 Wide 5
Processing...
Part Number: 22-2880
 Product Options:
NewCondition
$589.95
Fits your vehicle This product was made to fit the stock
Modified Fit :
Does not fit This product does not fit the stock
Quantity

Free Shipping

Orders over $100 qualify for free shipping.
**Contiguous U.S. only.
Free Shipping
Orders over $100 qualify for free shipping
Contiguous U.S. only
No Restock Fees
60-day returns for items not installed and in like-new condition

Call Us

Our knowledgable staff can help.
 1-800-231-1784
Mon-Fri 7-5pm PST
Jbugs Experts.
  • Descrip
    tion
  • Fits
    Years
  • Tech
    Tips
  • Shipping
  • Return
    s
  • Q&A
  • Manuals

Product Description

  • Modern Disc Brake Stopping Power
  • "Zero Offset" does not increase track width
  • Bolt On Kit does not require replacing spindles
  • Includes a Single Circuit Master Cylinder

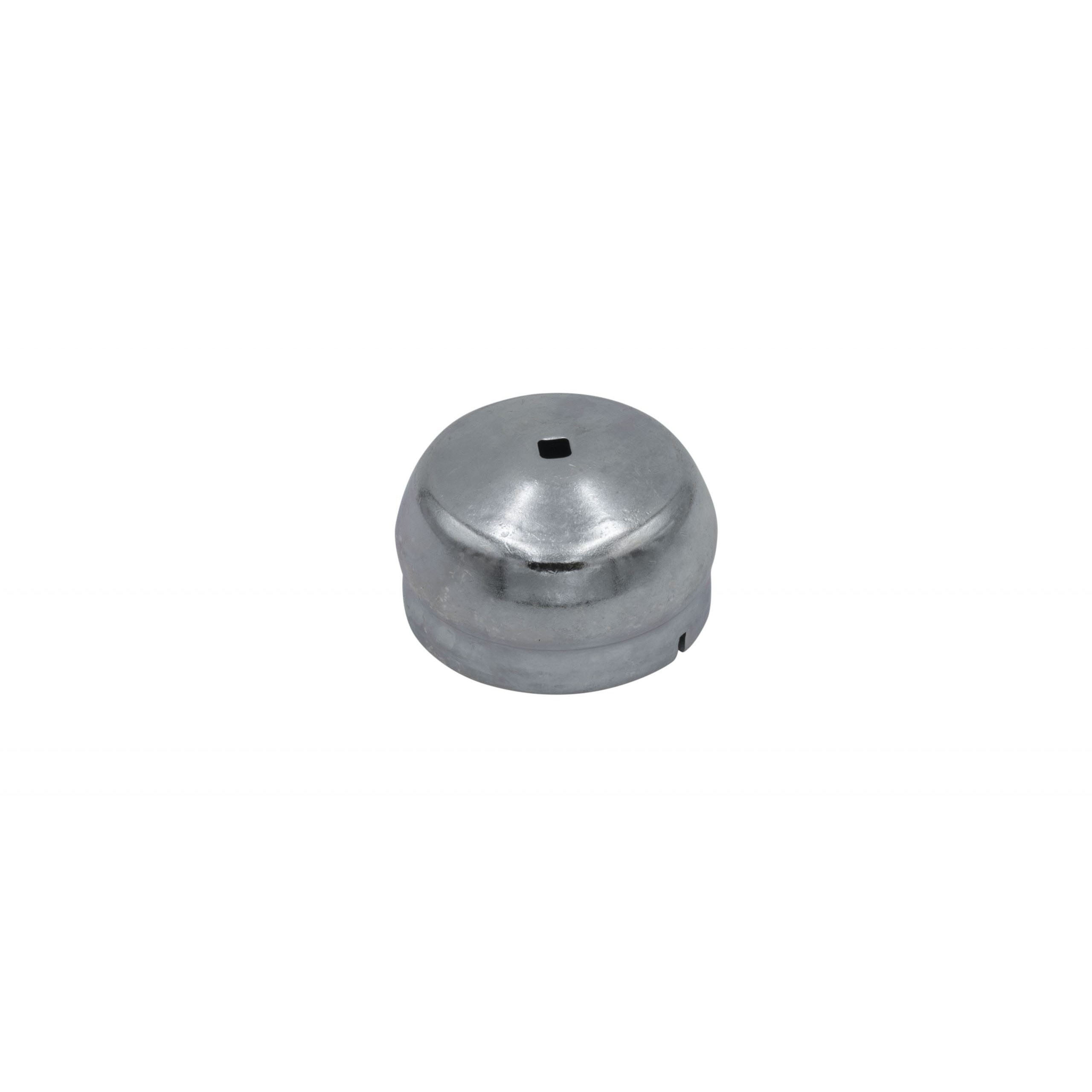

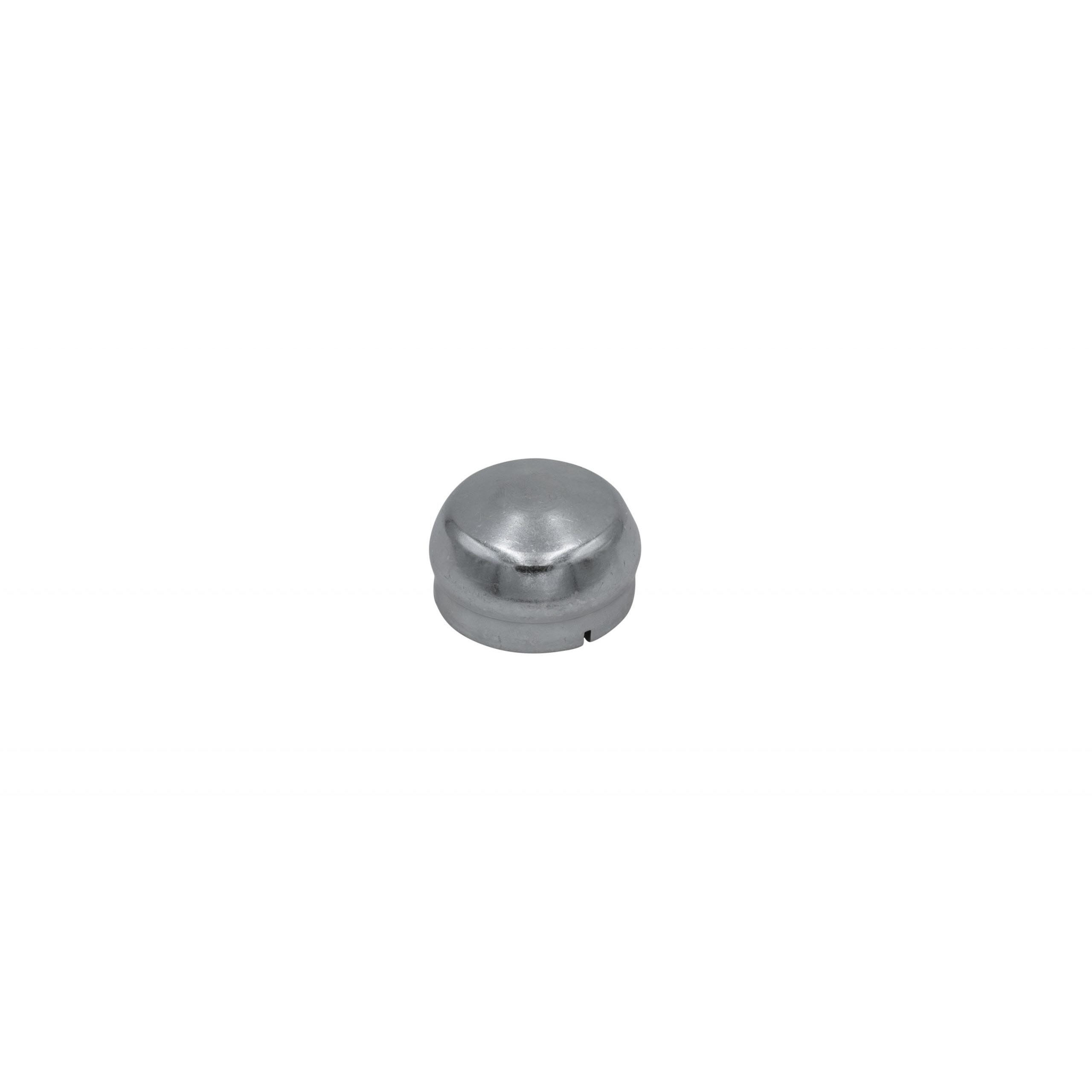

    • EMPI's Zero Off-Set Zero Off-Set Link Pin Front 5x205 Wide 5 Lug Disc Brake Kit fits early Link Pin Front End VW Beetles and Karmann Ghias from 1954 through 1965. This kit will fit your existing stock spindles and greatly improves the stopping power on an early Beetle or Karmann Ghia. The zero offset means that the track width will not increase so there are no tire and wheel clearance issues compared to stock. The disc brake kit includes new front rotors, calipers & pads, caliper mounting brackets, a master cylinder, brake hoses, bearings & seals, mounting hardware and instructions. The disc brake kit requires the separately sold 22-2941 & 22-2942 bearings caps which are available in the options tab. Kit employs floating calipers, which utilize a single piston and are designed to move or slide to establish contact with both sides of the disc.

    This kit includes the following:

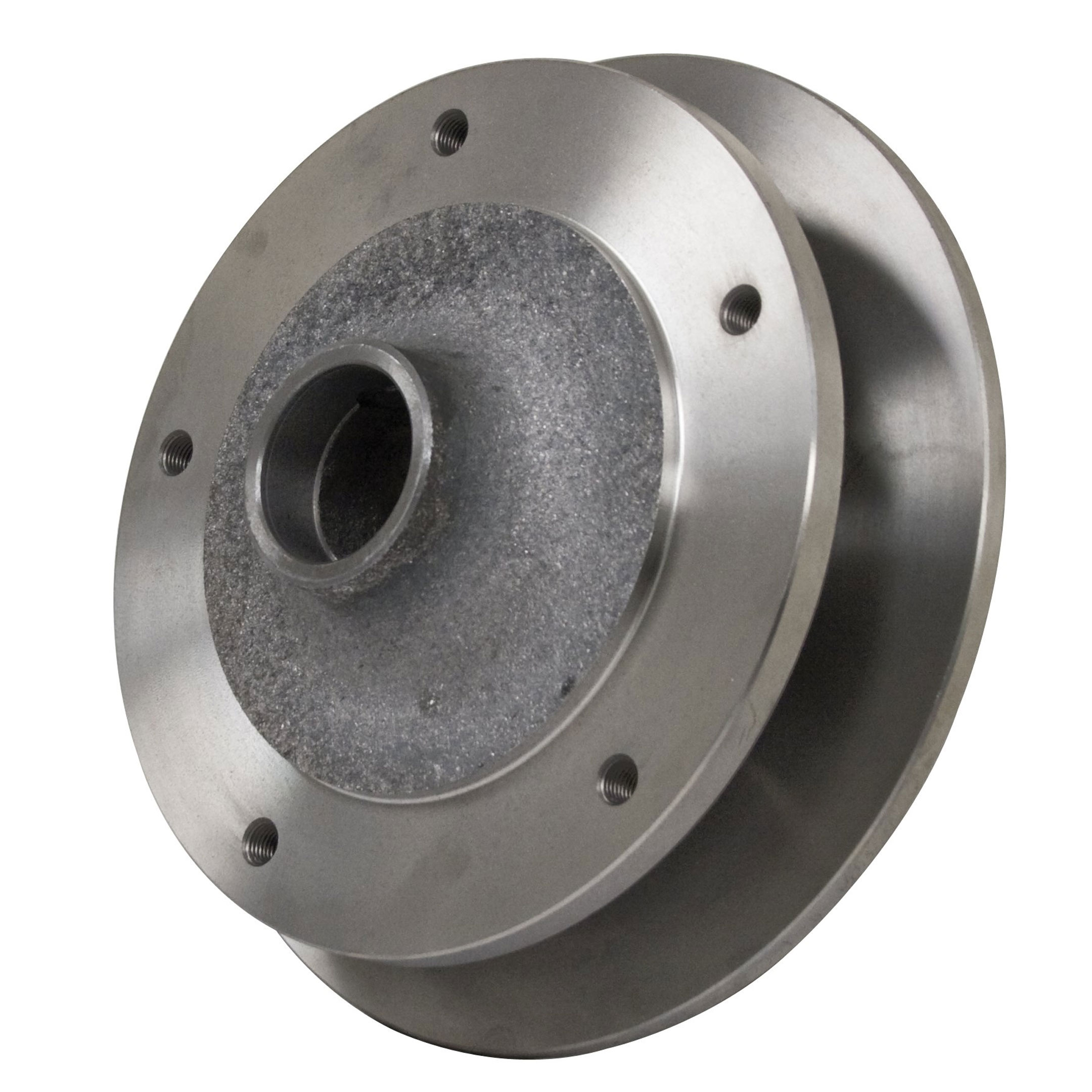

    • 5x205 Lug Pattern Brake Rotors with 12x1.5 Threads
    • Brake Calipers & Pads
    • Caliper Mounting Brackets
    • Master Cylinder
    • Brake Hoses
    • Uses (and includes) Stock Replacement Wheel Bearings & Grease Seals
    • Mounting Hardware & Instructions

    Click here for Quick Bleeder Valves which make bleeding your brakes much easier!

    Installation Notes:
    This kit can only be used with stock, VW Link Pin Drum Brake Spindles. It can not be used with drop spindles or other disc brake spindles.

    All brake parts must be thoroughly cleaned and disc brake grease must be used on all brake pad contact surfaces or brake squeak and vibration may occur.

    15" or larger wheels must be used with the disc brake kit. 14" wheels can not be used.

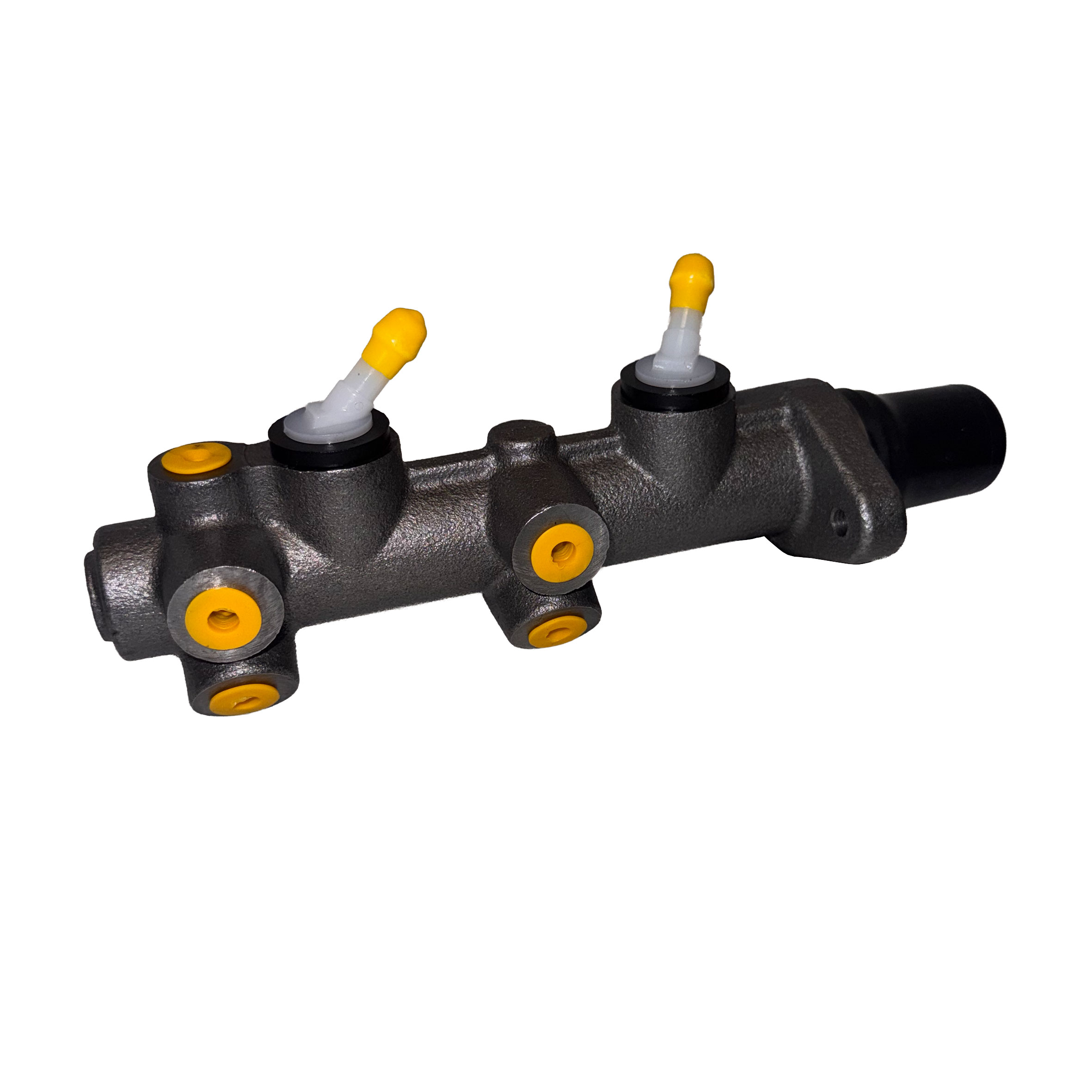

    The included master cylinder is for use with front disc brakes. However, if you are converting to 4 wheel disc brakes, it will not be sufficient. You must install a separately sold, large bore master cylinder. There is no credit value for the included master cylinder as it comes as part of this kit.


    JBugs staff member Sam.
    Read Sam's Bio

    Our Expert's Take:

    The stock drum brakes are adequate enough for a stock VW if all the components are in good working order but as soon as any performance modifications are made to your VW, the original brakes should be upgraded to suit. Virtually no modern cars use drum brakes, least of all on the front of the car where most of the braking power is. Updating the brakes on your VW should be considered mandatory for any car that is driven regularly.
    Sam



    California Prop 65 Warning:
    California Prop 65 Warning. Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Compatibility

    Please Note:The information listed below is for stock, unmodified VW's manufactured for sale in the US. VW's are commonly modified and very often parts from another year VW may have been installed on your car. California Pacific JBugs is not responsible for any errors if your car has been modified in any way.
    VW Beetle
    Sedan
    1954 - 1965
    Ragtop
    1954 - 1963
    Sunroof
    1964 - 1965
    Convertible
    1954 - 1965
    VW Karmann Ghia
    Coupe
    1956 - 1965
    Convertible
    1957 - 1965

    Helpful Hints


    Click here for Quick Bleeder Valves which make bleeding your brakes much easier!

    Installation Notes:
    All brake parts must be thoroughly cleaned and disc brake grease must be used on all brake pad contact surfaces or brake squeak and vibration may occur.

    15" or larger wheels must be used with the disc brake kit. 14" wheels can not be used.

    The included master cylinder is for use with front disc brakes. However, if you are converting to 4 wheel disc brakes, it will not be sufficient. You must install a separately sold, large bore master cylinder. There is no credit value for the included master cylinder as it comes as part of this kit.
