AA 88mm Piston & Cylinder Kit, for 69mm Cranks, Slip fit to Case, 90.5/92 Heads Required

31119806988TWAA
AA 88mm Piston & Cylinder Kit, for 69mm Cranks, Slip fit to Case, 90.5/92 Heads Required
Processing...
Part Number: 31119806988TWAA

NewCondition
$309.95
Fits your vehicle This product was made to fit the stock
Modified Fit :
Does not fit This product does not fit the stock
Quantity

Free Shipping

Orders over $100 qualify for free shipping.
**Contiguous U.S. only.
Free Shipping
Orders over $100 qualify for free shipping
Contiguous U.S. only
No Restock Fees
60-day returns for items not installed and in like-new condition

Call Us

Our knowledgable staff can help.
1-800-231-1784
Mon-Fri 7-5pm PST
Jbugs Experts.

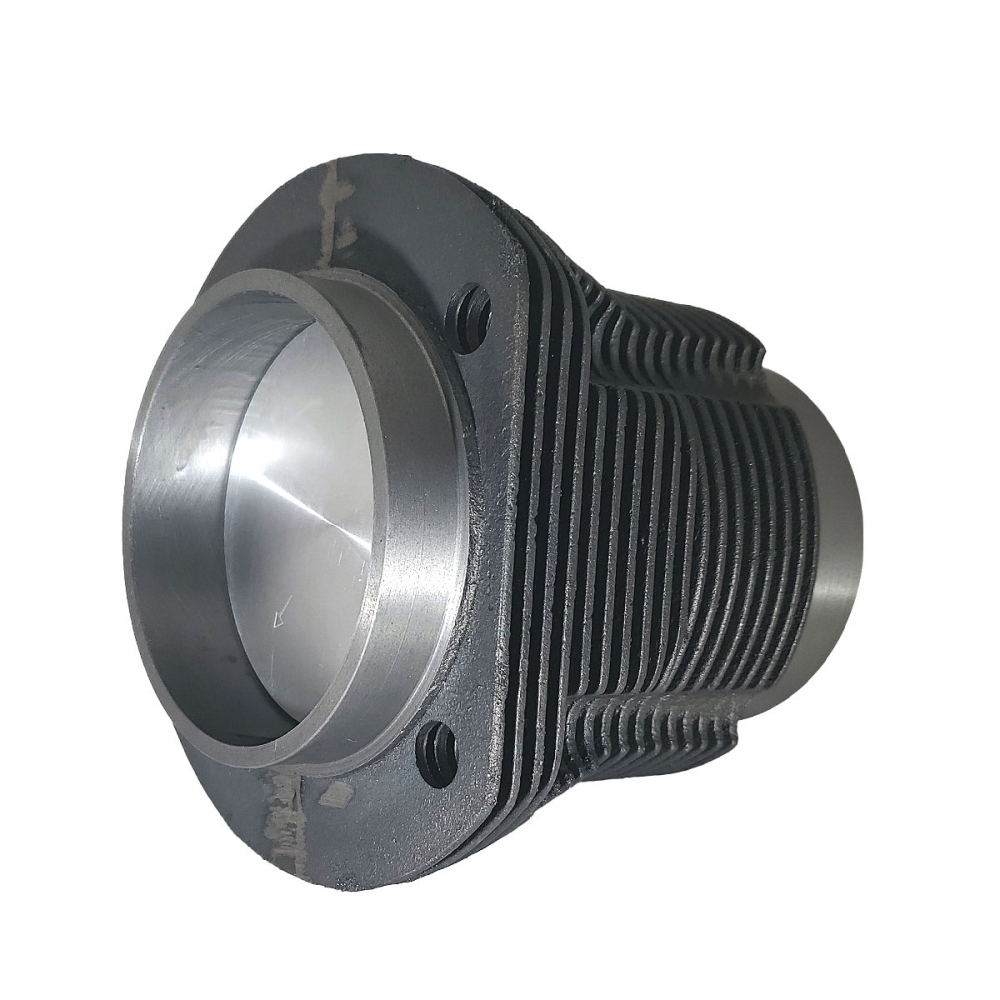

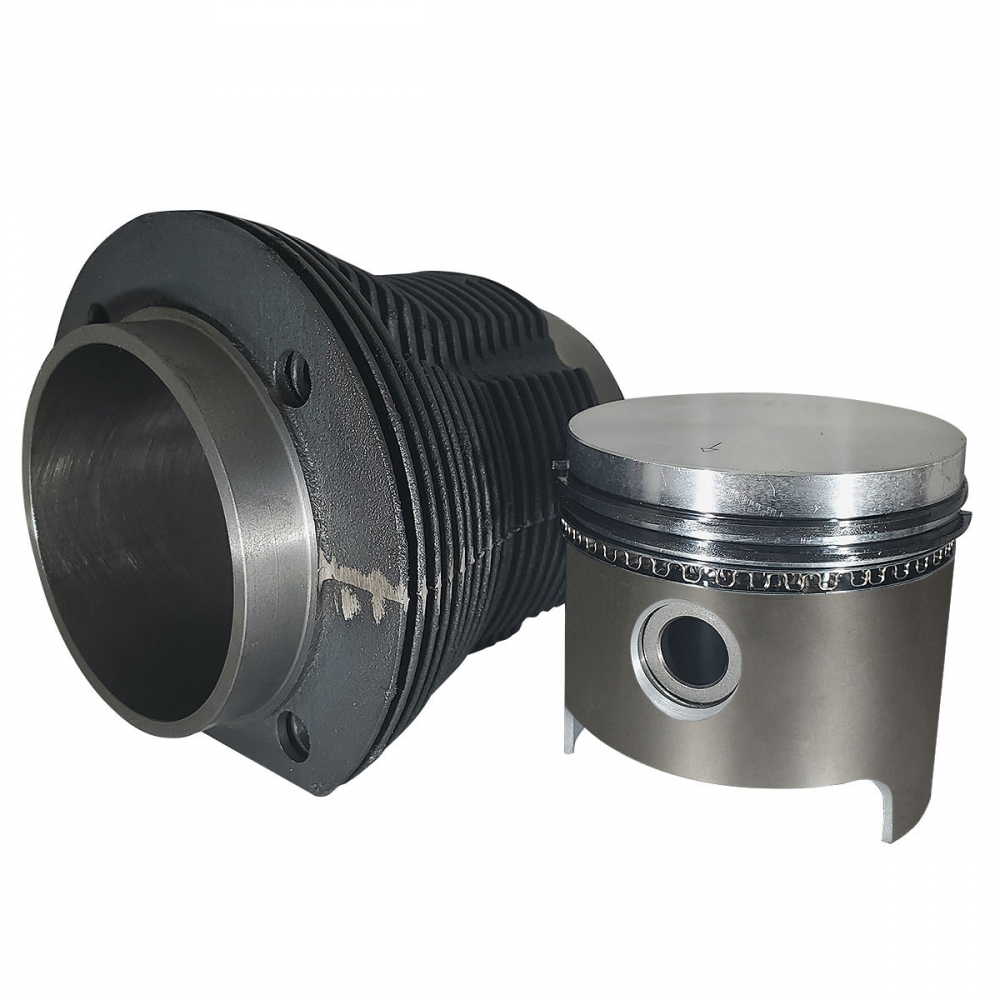

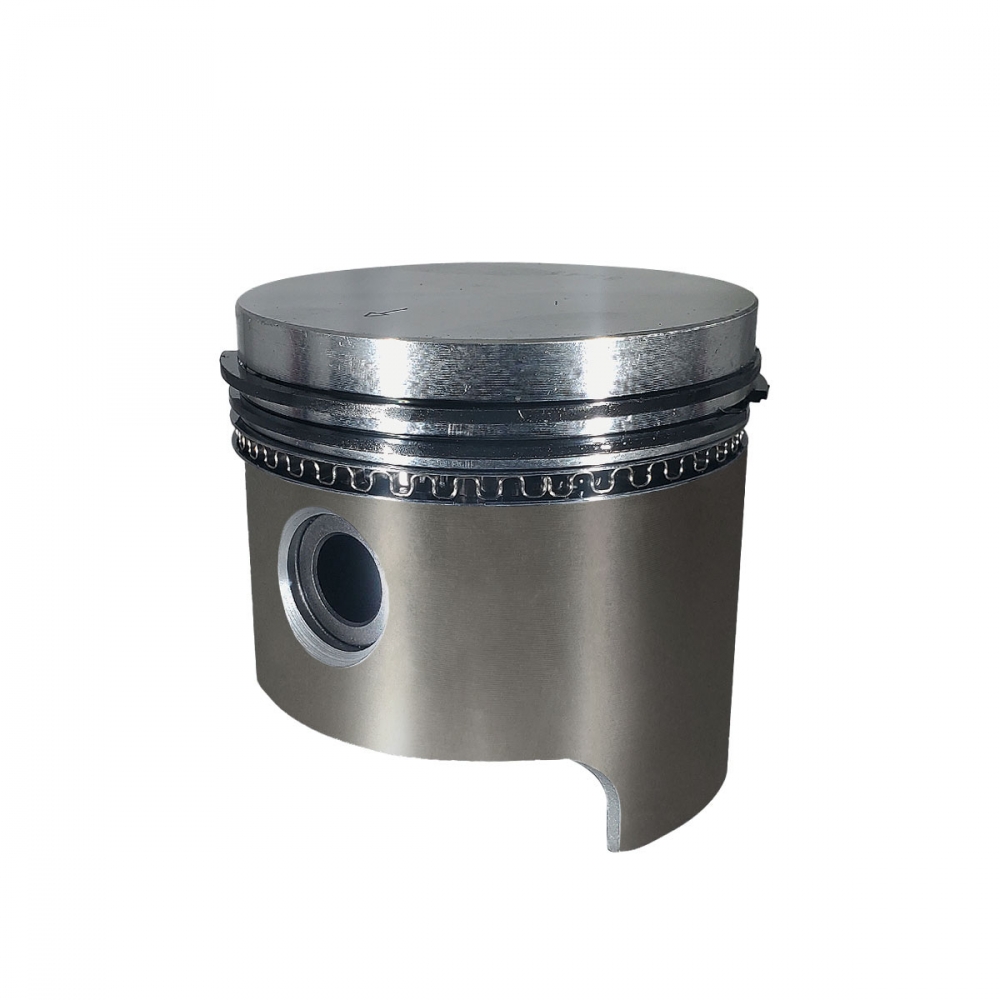

These thick wall 88mm AA Pistons & Cylinders come as a complete set with Hypereutectic Aluminum Alloy Pistons, Cast Iron Cylinder Sleeves, wrist pins, clips and piston rings. The cylinders are made for the stock 69mm crankshaft and will fit 1300cc, 1500cc & 1600cc engines and will slip into the case with no machining required. However the thicker walls of this cylinder set will require heads machined out for 90.5/92mm cylinders. Installing the 88mm pistons and cylinders will change the displacement to 1679cc. The 88mm piston and cylinders sets will fit 1966 through 1977 Standard Beetles, 1971 through 1979 Super Beetles, 1966 through 1974 Karmann Ghias, 1963 through 1971 Type 2 Bus Models, 1962 through 1973 Type 3 models and 1973 to 1974 Things. The outer diameter of the cylinders (sleeves) is roughly 89.5mm at the case & 98mm at the head.

Thick Wall Design allows for more strength and more importantly more cooling surface area than the standard "slip-fit" 88mm Piston & Cylinder Sets.



Kit includes:
4 Cylinders, 4 Pistons, 4 Wrist Pins, 8 Wrist Pin Clips, Complete Set Piston Rings

Engine Displacement Size with 69mm Crank:
1679cc

Pistons:
88mm Hypereutectic Aluminum Alloy

Cylinders:
Cast Iron

Case Machine Work:
None Required

Head Machine Work:
Requires Cylinder Heads clearanced for 90.5/92mm Cylinders (Roughly 123.5mm)


California Prop 65 Warning:
California Prop 65 Warning. Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Compatibility

Please Note:The information listed below is for stock, unmodified VW's manufactured for sale in the US. VW's are commonly modified and very often parts from another year VW may have been installed on your car. California Pacific JBugs is not responsible for any errors if your car has been modified in any way.
VW Beetle
Sedan
1954 - 1977
Ragtop
1954 - 1963
Sunroof
1964 - 1977
Convertible
1954 - 1970
VW Super Beetle
Sedan
1971 - 1975
Convertible
1971 - 1979
VW Karmann Ghia
Coupe
1956 - 1974
Convertible
1957 - 1974
VW Type II (Bus)
Bus
1955 - 1979
Single Cab
1955 - 1979
Double Cab
1958 - 1979
1981 - 1982
VW Type 3
Squareback
1962 - 1973
Notchback
1962 - 1973
Fastback
1966 - 1973
VW Thing
Thing
1973 - 1974

Video

Helpful Hints


Before you Install:
New piston & cylinder kits ship with the piston rings installed in the pistons, inside the cylinders. However, this does not mean they are ready to install. The pistons should be removed so the rings can be properly clocked, then reinstalled before engine assembly can begin. We cover the procedure in the video below.
