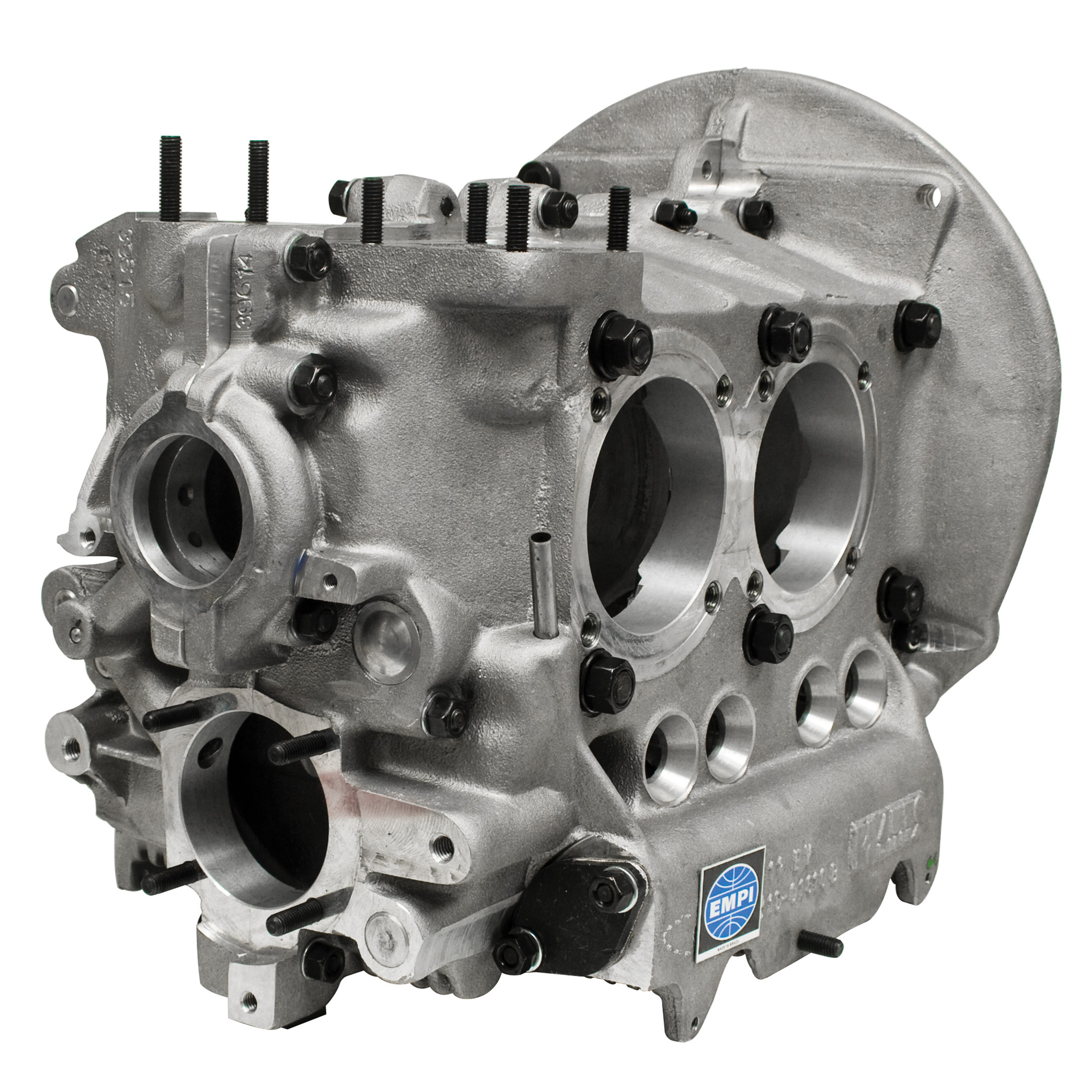

Bubble Top Aluminum Engine Case for Type 1, 2, and 3

Universal fit for Type 1, 2, and 3 applications
Clearanced for up to 86mm crankshafts and 85.5mm pistons
Pre-drilled and tapped for full flow oil system
Includes 6 shuffle pins and 8mm case savers

The bubble top aluminum engine case is a universal fit for VW Type 1, 2, and 3 engines and is ideal for performance builds. It features mounting points for a rear cross bar and a Type 3 dipstick hole (which must be blocked off if not used). The case is clearanced for up to an 86mm crankshaft and is bored for 85.5mm pistons, making it compatible with a wide range of engine sizes.

This high-strength case includes a large-style oil pick-up tube, shuffle pins for the main bearing saddles, and 8mm case savers for the cylinder head studs. The bellhousing area behind cylinder #3 is reinforced for added durability. The raised roof and radius design improve crank clearance and overall rigidity. The case is tapped for a full flow oil system and includes plugs to seal off unused ports.

Compatible Engine Sizes

The all new engine case includes a large style oil pick up tube and is suitable for 1585, 1699, 1745, 1791, 1801, 1883, 1929, or 1975cc builds with 85.5mm pistons.

Aluminum engine cases are thicker than magnesium cases

Aluminum engine cases are cast in a different mold than magnesium for additional strength and so the case can accept larger internal components. Aluminum cases are thicker in some areas, and due to the size differences versus the magnesium cases, will require that some engine tin pieces, fan shrouds and often times even accessories, like deep oil sumps, will have to be modified, trimmed, or clearanced so that they can be installed.

Standard aluminum pulleys can not be used with aluminum engine cases

As aluminum cases are thicker in areas that magnesium cases aren't, like the crank pulley snout, standard aluminum pulleys can not be used with aluminum cases. Use a stock style steel pulley, a pulley with a steel hub, or if you want to use an aluminum pulley, install a "bolt-in" sand seal pulley. This will require the use of a longer crank pulley bolt as well.

Engine Case Style	Universal
Oil Passages	Dual Relief
Material	Aluminum
Intended Piston/Cylinder Diameter	85.5mm
Case Cylinder Bore Diameter	90mm
Crank Clearance	86mm
Case Saver Threads	8mm
Displacement with 69mm Crankshaft	1585
Displacement with 82mm Crankshaft	1883
Full Flowed Oil System	Yes
Machined for Pulley Sand Seal	No
Main Bearing Saddle Shuffle Pins	Yes

Note - due to the "Bubble Top" design of the engine case, your fan shroud may have to be clearanced across the bottom edge to align with the top of the engine case.

Aluminum engine cases are cast in a different mold than magnesium for additional strength and so the case can accept larger internal components. Aluminum cases are thicker in some areas, and due to the size differences versus the magnesium cases, will require that some engine tin pieces, fan shrouds and often times even accessories, like deep oil sumps, will have to be modified, trimmed, or clearanced so that they can be installed.

California Prop 65 Warning: Cancer and Reproductive Harm

Please Note:The information listed below is for stock, unmodified VW's manufactured for sale in the US. VW's are commonly modified and very often parts from another year VW may have been installed on your car. California Pacific JBugs is not responsible for any errors if your car has been modified in any way.

VW Beetle

Sedan

1954 - 1977

Ragtop

1954 - 1963

Sunroof

1964 - 1977

Convertible

1954 - 1970

VW Super Beetle

Sedan

1971 - 1975

Convertible

1971 - 1979

VW Karmann Ghia

Coupe

1956 - 1974

Convertible

1957 - 1974

VW Type II (Bus)

Bus

1955 - 1971

Single Cab

1955 - 1971

Double Cab

1958 - 1971

VW Type 3

Squareback

1962 - 1973

Notchback

1962 - 1973

Fastback

1966 - 1973

VW Thing

Thing

1973 - 1974
