VW Tech Article: Single Port VW Engine Top End Diagram
| Number | Image | Product Code | Description | Cart |
|---|---|---|---|---|
| 1 |
|
111109451-4 | Valve Adjustment Nut 8x1.00mm Thread (Part of Kit) | |
| 2 |
|
111109451-4 | Valve Adjustment Screw (Part of Kit) | |
| 3 |
|
17-2954 | Stock Ratio Rocker Kit (High Performance) | |
| 4 |
|
113109651A | Valve Keeper - 3 Groove (Set of 16) | |
| 5 |
|
113109641B | Valve Spring Seat | |
| 6 |
|
113109623C | Valve Spring - Intake or Exhaust | |
| 7 |
|
113101401Z | Valve Guide - Standard |
|
| 8 |
|
311109601 | Intake Valve 35.5mm - 1500-1600cc | |
| 9 |
|
113109612A | Exhaust Valve 32mm - 1500-1600cc | |
| 10 |
|
021101457 | Engine Cylinder Head Nut - 10X1.5mm |
|
| 11 |
|

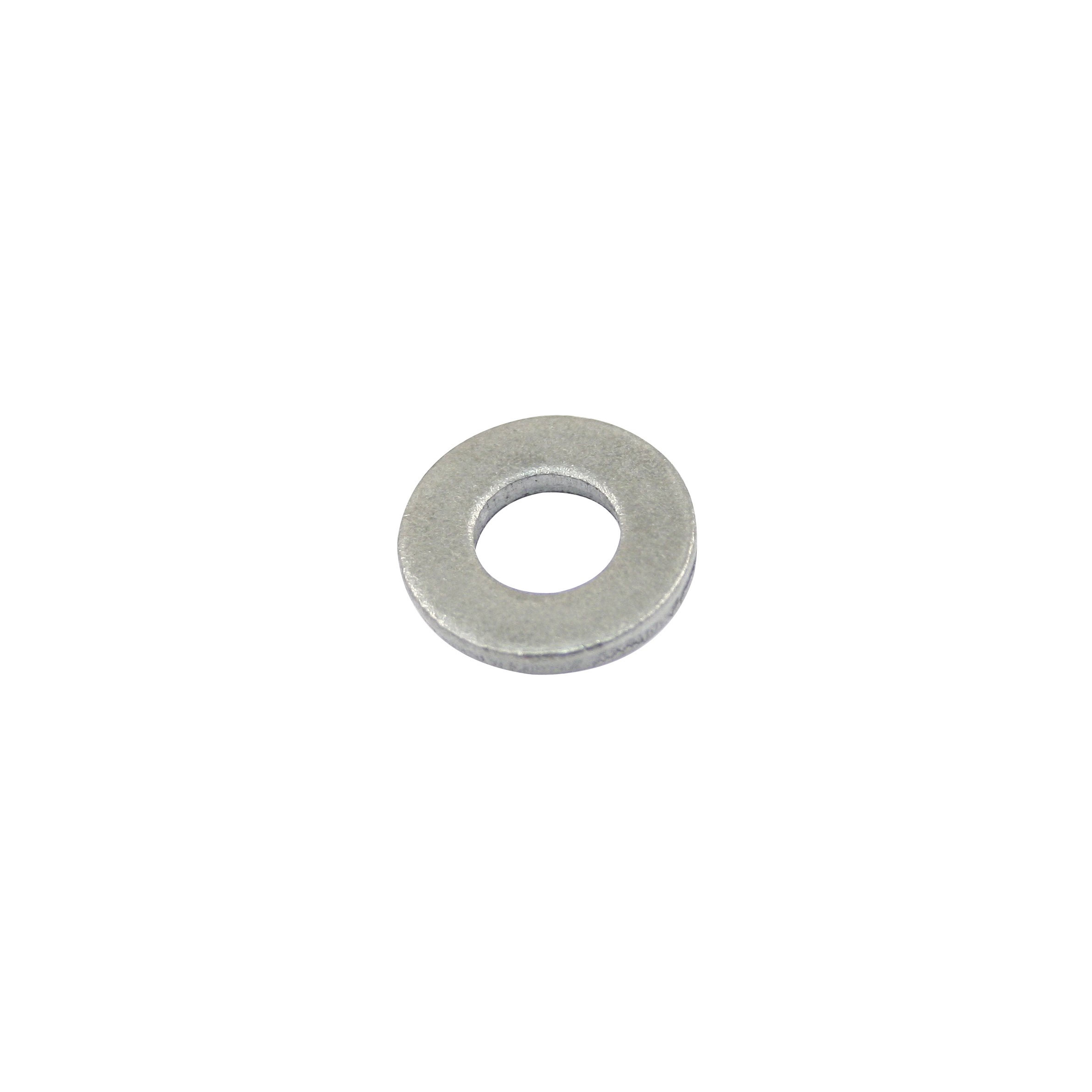

111101461 | 10mm Cylinder Head Washers |
|
| 12 |
|
311101353AC | Single Port Cylinder Head (Complete) | |
| 12 |
|
98-1364-B | Single Port Cylinder Head (Complete w/ 12mm Long Reach Plug) | |
| 13 |
|
311198069AA | 85.5mm VW Piston & Cylinder Kit for 69mm Cranks | |
| 14 |
|
Cylinder Shims - Multiple options Enter "Cylinder Shims" in search bar |
Not Currently Available
|
|
| 15 |
|
311198169A | Piston Ring Set 85.5mm 2x2x5 1600cc Beetle | |
| 16 |
|
10mm Single Port Case Studs |
Not Currently Available
|
|
| 17 |
|
043101487 | Valve Cover Bales | |
| 18 |
|
113101475B-2 | Valve Cover Set (Black) | |
| 18 |
|
8905 | Valve Cover Set (Chrome) | |
| 19 |
|
113101481F-2 | Valve Cover Gaskets - Cork | |
| 20 |
|

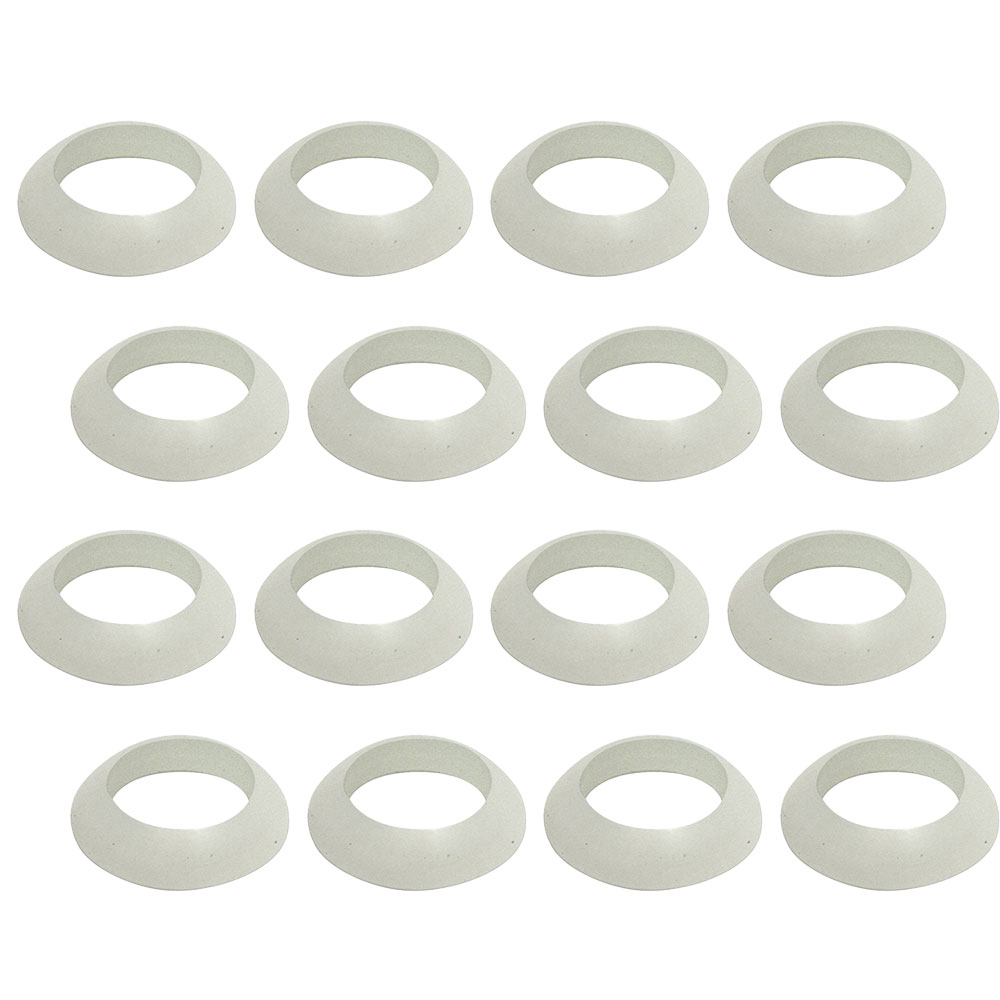

9153 | Push Rod Tube Seals - Silicone | |
| 21 |
|
Not Currently Available
|
||
| 21 |
|

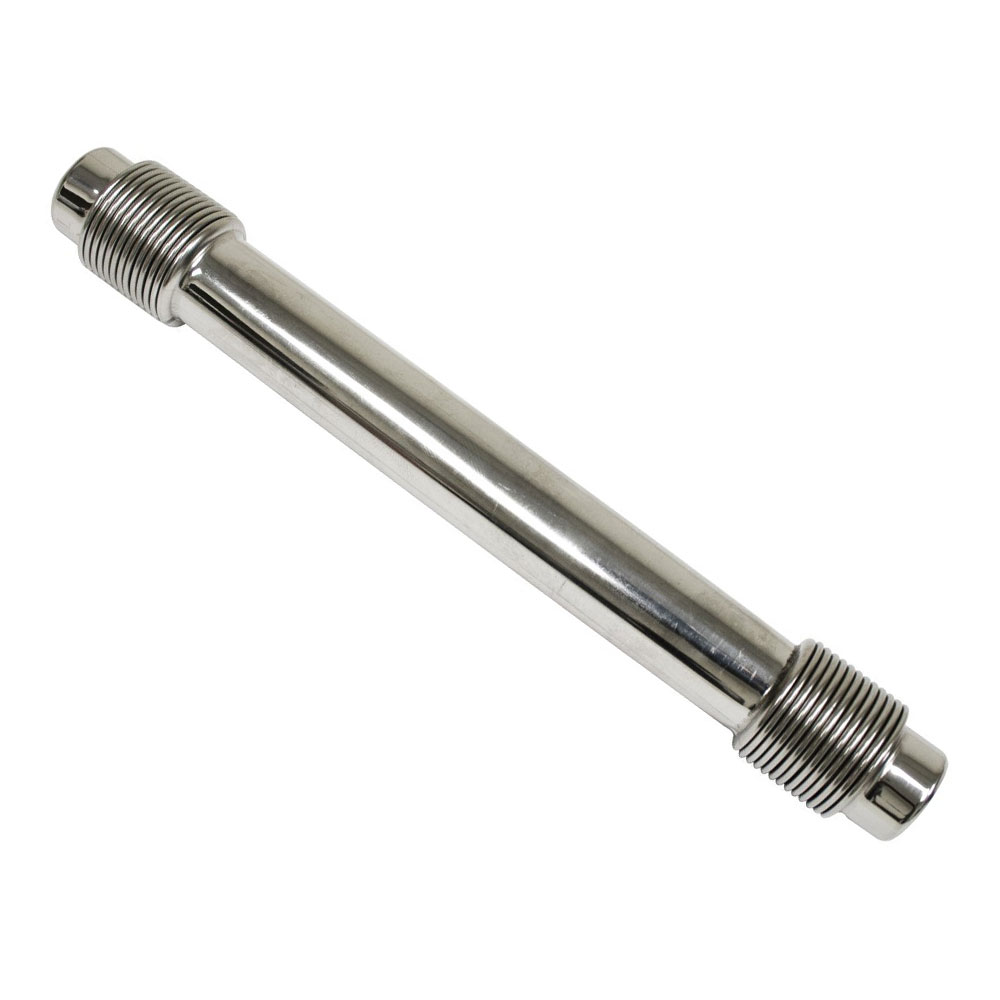

8520 | Push Rod Tubes - 1300-1600cc (Each) | |
| 21 |
|
8522-1 | Push Rod Tubes - 1300-1600cc (Set of 8) | |
| 22 |
|
311109301A | Pushrod - Stock Length (Each) | |
| 23 |
|
113109309C | Lifters/Cam Followers - Stock (Set of 8) |
