VW Tech Article: Type 2 Early Rear Axle Diagram

•1950-67 Type 2

Number	Image	Product Code	Description	Cart
1		111598021AGR	1955-67 Type 2 Swing Axle Boot Kit (German)	Quantity:Quantity:Qty: $ 18.95 View Product
1		9916	Swing Axle Boot Kit -Stock Style (EMPI)	Quantity:Quantity:Qty: $ 9.95 View Product
1		9984	Swing Axle Boot Kit - Deluxe (EMPI)	Quantity:Quantity:Qty: $ 24 View Product
2		B46040	Rear Gas Shock - Bilstein	Quantity:Quantity:Qty: $ 138.95 View Product

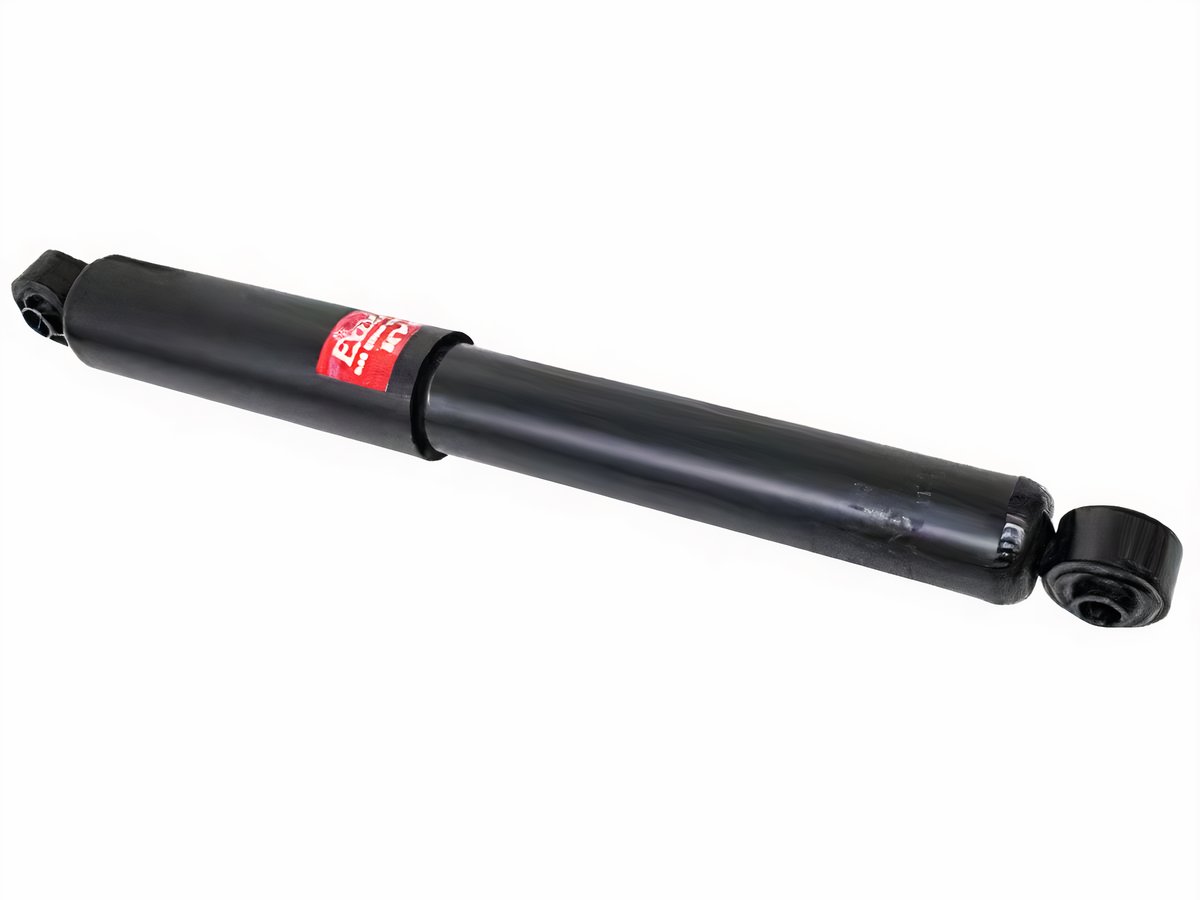

2		343144	Rear Gas Shock - KYB Excel	Quantity:Quantity:Qty: $ 44.95 View Product
2		KG5529	Rear Gas Shock - KYB Gas-A-Just	Quantity:Quantity:Qty: $ 64.95 View Product
2		9656	Rear Gas Shock - EMPI	Check Product for Availability View Product
3		311501283	VW Wheel Bearing - Rear - Swing Axle (Also Reduction Box Inner Bearing)	Quantity:Quantity:Qty: $ 28.95 View Product
4		211501285	VW Bus Reduction Box Outer Bearing	Quantity:Quantity:Qty: $ 29.95 View Product
5		211-245-L-R	VW Bus Spring Plate Bushings - Inner and Outer	Check Product for Availability View Product
6		111598051A	Rear Axle Seal Kit	Quantity:Quantity:Qty: $ 7.95 View Product
7		311501283	1955-63 Bus Rear Wheel Bearing- Swing Axle	Quantity:Quantity:Qty: $ 28.95 View Product
7		211501283	1964-67 Bus Rear Wheel Bearing- Swing Axle	Quantity:Quantity:Qty: $ 64.95 View Product
8		211501631	1951-1955 VW Bus Brake Drum Oil Deflector *Note: Only use if your brake drums have an oil deflector drain hole. Most modern brake drums do not.	Check Product for Availability View Product
9			1950-63 Bus Rear Brake Drum	Not Currently Available
9			1964-67 Bus Rear Brake Drum	Not Currently Available
10		311501221	1950-63 Bus Rear Axle Nut 36mm (Standard)	Quantity:Quantity:Qty: $ 4.95 View Product
10		211501221A	1964-79 Bus Rear Axle Nut 46mm (Standard)	Quantity:Quantity:Qty: $ 10.95 View Product
11		N125481	Axle Nut Cotter Pins Pair	Quantity:Quantity:Qty: $ 1.95 View Product
