VW King & Link Pin Heavy Duty Torsion Leaves - 6" Wider - 1954-64 Beetle - Karmann Ghia

413030W
VW King & Link Pin Heavy Duty Torsion Leaves - 6" Wider - 1954-64 Beetle - Karmann Ghia
Processing...
Part Number: 413030W

NewCondition
$239.95
Custom Fit
This product is made for custom applications. Modifications may be necessary to use this on a stock vehicle.
Quantity
Notify Me When In Stock
Sign up with your email to be notified when this product is back in stock!

Free Shipping

Orders over $100 qualify for free shipping.
**Contiguous U.S. only.
Free Shipping
Orders over $100 qualify for free shipping
Contiguous U.S. only
No Restock Fees
60-day returns for items not installed and in like-new condition

Call Us

Our knowledgable staff can help.
1-800-231-1784
Mon-Fri 7-5pm PST
Jbugs Experts.

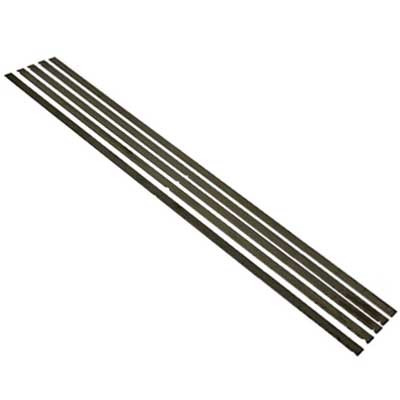

  • 6" Widened Type 1 Link Pin Width - 43" Wide
  • Sold Per Tube - 2 Leaf Packs needed per VW
  • 8 Leaf Pack (4 narrow, 4 wide)
  • Pre-drilled Type 1 Link Pin Dimples (all in-line)
  • 20% Stiffer than Stock
  • Product Description

    The Heavy Duty VW King & Link Pin Torsion Leaves are 6" wider (43") for 1954 through 1964 Standard Beetles and (in rare cases) 1956 through 1964 Karmann Ghias with 6" widened off road link pin beams. The Heavy Duty torsion leaves are roughly 20% stiffer than stock and are sold "per tube", two sets are needed per front, stock width, King & Link Pin Beam. The 6" wider torsion leaf set negates the need to purchase an additional two (or 4 if you're starting from scratch) leaf packs to put together a 6" wider beam. The torsion leaves are the springs that hold the front end of the car up off the ground. The torsion leaves are held in the front beam and the trailing arms attach to the them. As the trailing arms move up or down, the torsion springs in the beam twist to allow the suspension movement and twist or "spring" back.

    The Heavy Duty King & Link Pin leaf pack consists of 5 leaves which replace the original 8 leaves (2 narrow leaves, 4 wide leaves, 2 narrow leaves) to stiffen the suspension spring rate. The leaf pack then "keys" or aligns into a block in the center of the beam to hold the leaf pack from twisting. A center set screw aligns with a drilled dimple in the leaf pack to secure the leaves. The front trailing arms then slide onto the leaves aligning with them and secure to the leaves with set screws.

    The leaf packs are sold per tube, two are needed per car.
