Wiring Works 1970-71 VW Beetle Complete Wiring Harness - Alternator Version

WK-113-70-71-ALT
Wiring Works 1970-71 VW Beetle Complete Wiring Harness - Alternator Version
Processing...
Part Number: WK-113-70-71-ALT

NewCondition
$449.95
Fits your vehicle This product was made to fit the stock
Modified Fit :
Does not fit This product does not fit the stock
Quantity

Ships free*

*Contiguous U.S. only.

Call Us

Our knowledgable staff can help.
1-800-231-1784
Mon-Fri 7-5pm PST
Jbugs Experts.

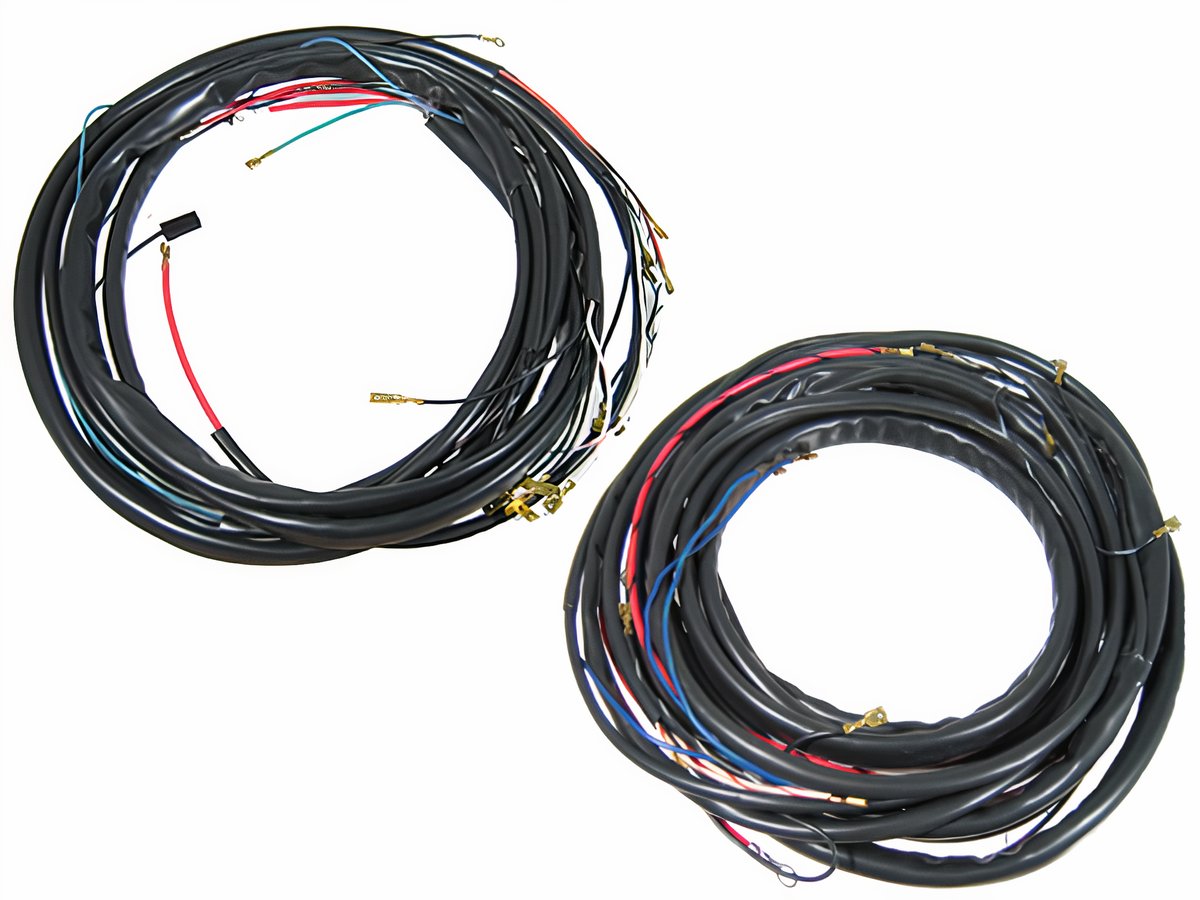

This is a complete wiring harness for the 1970 VW Beetle Sedans, Sunroofs & Convertibles and early 1971 VW Standard Beetle Sedans & Sunroofs with internally regulated alternators and a 10 circuit fuse boxes. Our complete wiring loom will wire your entire car from headlights to taillights. These kits are great for repairing old dried out wiring, or replacing the wires after a new paint job. All kits are made from original wiring loom schematics and are factory color coded. All kits are factory length and pre-terminated. Each kit includes detailed instructions which will simplify the task of rewiring your VW. This kit is compatible with 12 and 6 volt systems. Fusebox, battery cables, and relays are not included. All of our original style replacement wiring harnesses are made in the USA with OEM AMP terminal ends.

This wiring harness is for 1970 and early 1971 models with an Internally Regulated Alternator, a 10 Circuit Fuse Box and a Dash Mounted Wiper Switch.

Wiring Harnesses can only be returned if the packaging remains sealed. Once a wiring harness has been opened, it cannot be returned.

Our Complete Wiring Harness includes:

  • 1 Main Harness
  • 1 Left Front Harness
  • 1 Right Front Harness
  • 1 Left Front Turn Signal Harness
  • 1 Right Front Turn Signal Harness
  • 1 Brake Master Cylinder Harness
  • 1 Dome Light Harness
  • 2 Tail Light Harnesses
  • 1 License Light Harness
  • 1 Gas Tank Harness
  • 1 Reverse Light Harness
  • 1 Reverse Light Link
  • 1 Starter Power Harness
  • 1 Dash Ground Link Assembly
  • 23 Loose Wires and Sub-Assemblies
  • 2 Headlight Socket Housings
  • 3 Wire Grommets
  • 15 Shrouded Wire Connectors
  • 2 Shrouded T Wiring Connector
  • 2 Shrouded H Wiring Connectors

Please Note: The wires that are attached to the ignition switch and turn signal switch are not included with the harness. Those wires are part of the switch. The battery ground cable, the battery positive cable. The battery ground cable, the battery positive cable (along with the supply wire that attaches to the voltage regulator) and the transmission ground strap are not included.

Frequently asked: Will this fit my 73 or later Super Beetle?

Answer: Technically no. With enough modification, anything can be made to fit anything, however the modification needed to make this harness fit the 73 and later Super Beetles is extensive, and not recommended. To our knowledge, a "complete harness" for these vehicles is not currently in production at this time.

So, what do I do? The only answers to this available currently, are to attempt to either repair the existing harness, build a new one from scratch, or attempt to modify an earlier harness. We do not have instructions or advice as to how this is done. Please be advised that modification to an earlier harness is not recommended as there are no returns on electrical items under any circumstance.

Please Note: Wiring Harnesses can only be returned if the packaging remains sealed. Once a wiring harness has been opened, it cannot be returned


California Prop 65 Warning:
California Prop 65 Warning. Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Compatibility

Please Note:The information listed below is for stock, unmodified VW's manufactured for sale in the US. VW's are commonly modified and very often parts from another year VW may have been installed on your car. California Pacific JBugs is not responsible for any errors if your car has been modified in any way.
VW Beetle
Sedan
1970 - 1971
Sunroof
1970 - 1971
Convertible
1970
