VW Radios & Speakers

We carry a huge selection of Classic VW Stereos, Amplifiers and Speakers, Speaker Kick Panels, Speaker Trays, Sound Deadeners and more.

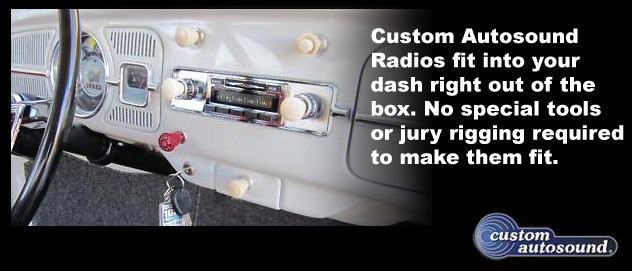

Custom Autosound radios were engineered to fit in your stock VW dash with out drilling, cutting or making modifications to your dash. Radios come with year correct face plates to match your vehicle. Although it looks classic, our radios are built with the latest modern features including an Auxiliary input so you can play your Ipod, Iphone or other MP3 player.

Our Speaker Kick Panels are made of heavy duty fiberglass (not plastic) to provide the best durability and sound reproduction. These panels are mounted in the front area of the car adjacent to where your feet rest. All kits include mounting hardware and instructions.




VW Dash Radios from Custom Autosound.


VW Beetle

VW Super Beetle

VW Ghia

VW Bus/Type2

1949-57 1971-72 1956-74 1949-67
1958-67 1973-79 1968-79
1968-77


Dont forget, We carry everything you'll need to mount your speakers.


JBugs has VW Speaker Trays, VW Fiberglass Speaker Kick Panels, Mounting hardware and speakers. Everything you need to give your VW a custom sound system.

We also carry a negative ground converter for proper radio instalation. The NGVB is a 6V to 12V converter for vehicles that still have a 6V, negative ground electrical system.

All our VW Speaker Trays and made by TMI Products and feature TMI's Lifetime Warranty.






Step-by-Step Custom Autosound Radio Installation


Installation is Simple. Custom Autosound radios were engineered to fit in your stock VW dash with out drilling, cutting or making modifications to your dash. Radios come with year correct face plates to match your vehicle. Although it looks classic, our radios are built with the latest modern features. Radio looks stock when turned off, but once turned on the LED alpha-numeric display lights up behind false radio dial face.

Step 1

Remove knobs if your radio comes with knobs.
VW Radio Installation 1
VW Radio Installation 1.
VW Radio Installation 1
VW Radio Installation 2.

Step 2

Locate the threaded nuts and supporting washers on radio tuning shafts.
VW Radio Installation 1
VW Radio Installation 3.

Step 3

Unscrew nuts and washers and remove from both tuning shafts.
VW Radio Installation 1
VW Radio Installation 4.

Step 4

Remove face plate Trim. Metal backing plate should be exposed.
1949-67 will have a chrome plastic face.
1968-79 will have a black pebble grain plastic face.
VW Radio Installation 1
VW Radio Installation 5.
VW Radio Installation 1
VW Radio Installation 6.

Step 5

Slide radio in from BEHIND DASHBOARD.
Radio will not fit in inserted from the front.
VW Radio Installation 1
VW Radio Installation 7.
VW Radio Installation 1
VW Radio Installation 9.

Step 6

Align radio, and attach face plate. Dashboard should now be sandwiched between metal backing plate and face plate.

Step 6

Thread nuts and washers on tuning shafts over face plate. Nuts can be tightened with a wrench, but be careful not to over-tighten. Radio tuning knobs can now be pressed on shafts.
VW Radio Installation 1
VW Radio Installation 10.

Step 7

Follow manufacturers instructions supplied with radio for wiring power, speakers and antenna.
VW Radio Installation 1
VW Radio Installation 8.
