Disassembling the Engine Tin

Follow along with our VW expert, Sam as he shows a step-by-step guide on how to remove the tins from a classic Volkswagen Type 3 engine.


VW Tech Tips

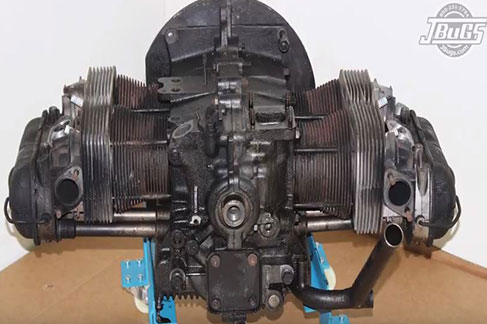

In our last blog, we shared how to remove the engine from a Type 3. Today, we’ll show you how to disassemble the tins from the engine in order to complete repairs or install upgrades.

Tools to Use:

  • 10mm Wrench
  • 13mm Wrench
  • 17mm Wrench
  • Flathead Screwdriver
  • 3/8 Drive Ratchet
  • 10mm Socket
  • 13mm Socket

Steps to Follow:

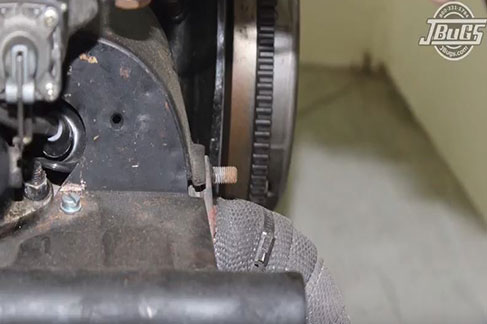

1. Remove the nuts at both of the J-tubes

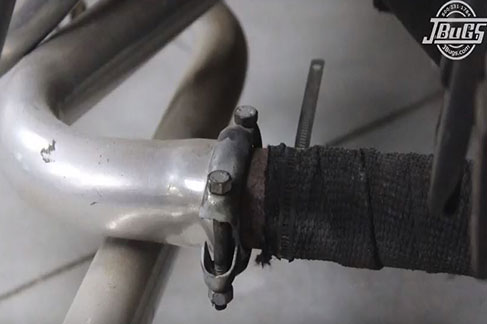

2. Loosen the header clamps

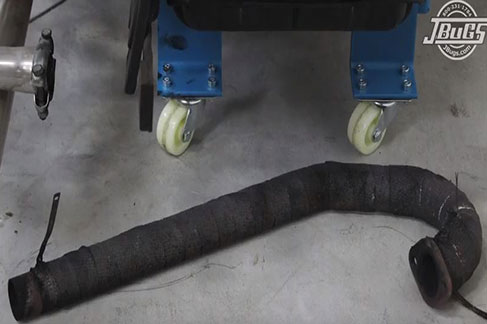

3. Remove the J-tubes

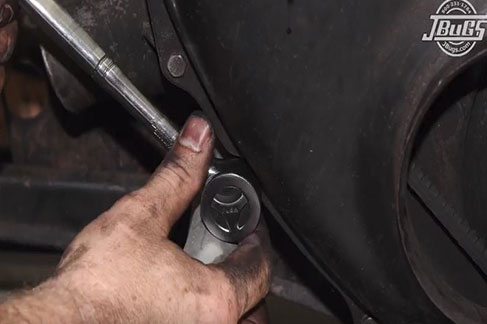

4. Remove header nuts from both of the heads

5. Pull off the header and muffler assembly

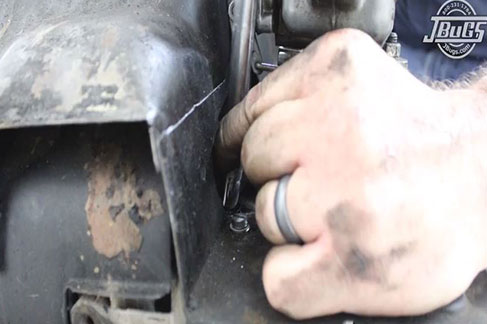

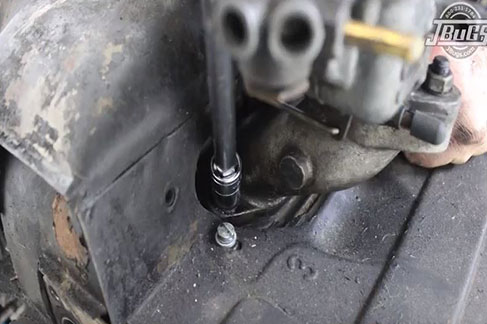

6. Unthread the nuts at the intake manifolds on both heads

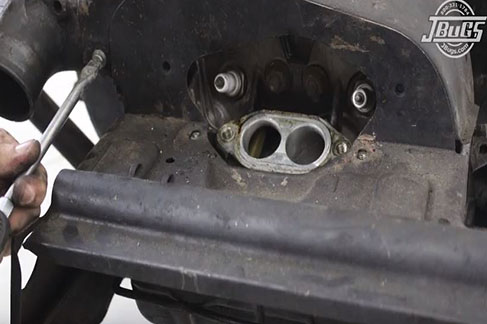

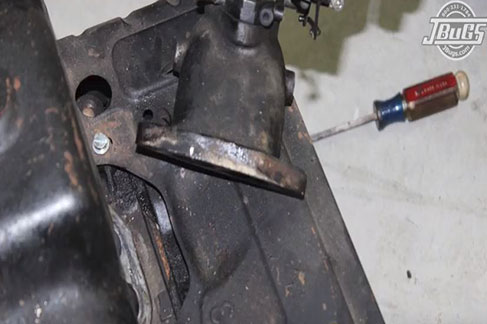

7. Pull off carburetors and linkage

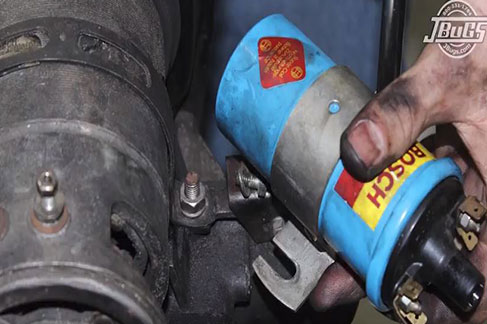

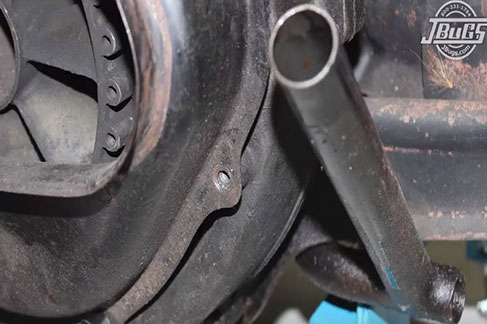

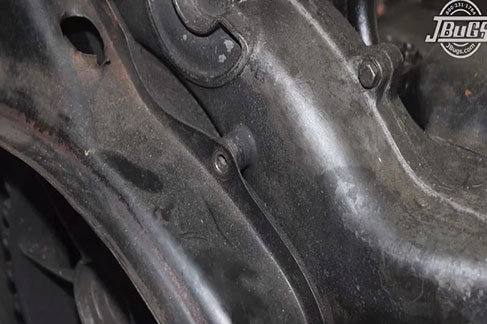

8. Remove the coil and engine intake cover bolts

9. Cut and remove the intake cover

10.Unbolt the generator strap

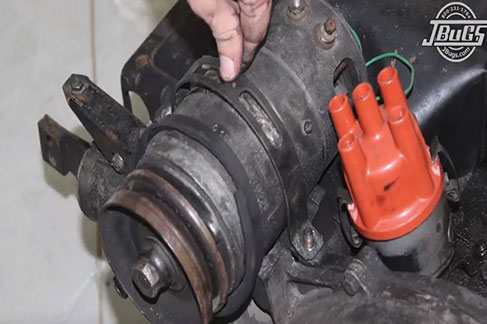

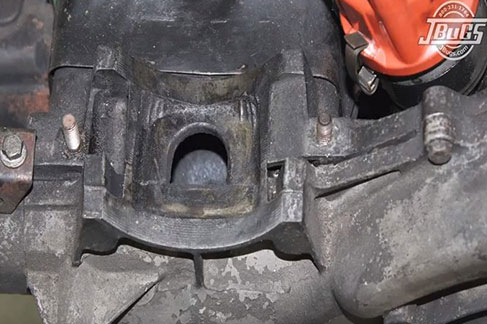

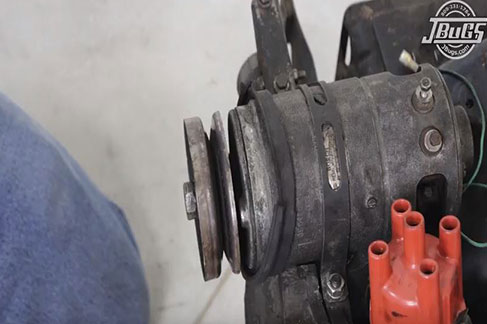

11. Remove the generator

12. Pull off the distributor clamp nut from the engine case

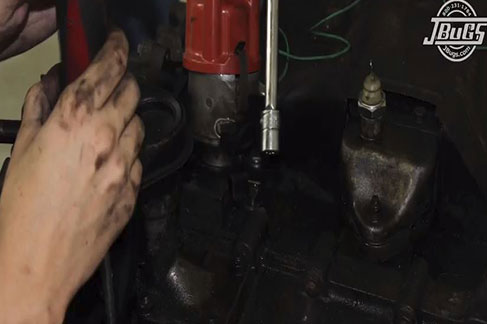

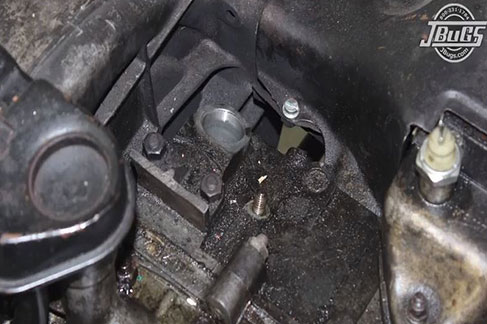

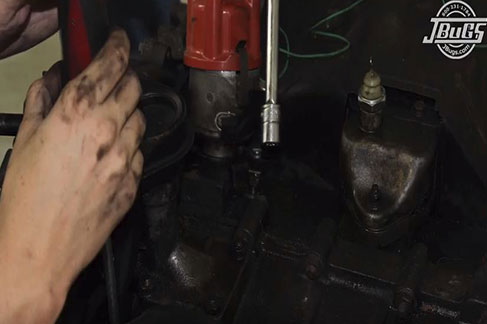

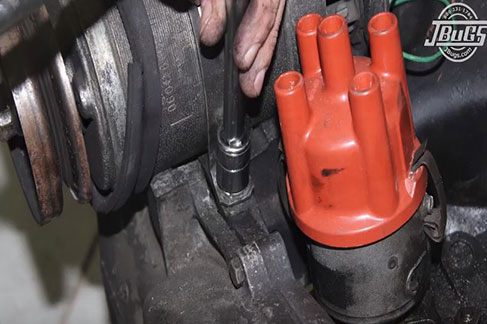

13. Remove the distributor and the clamp

14. Remove multiple sheet metal screws from the cylinder shrouds and pull off cylinder shrouds

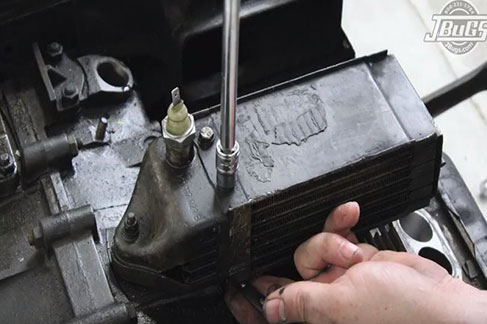

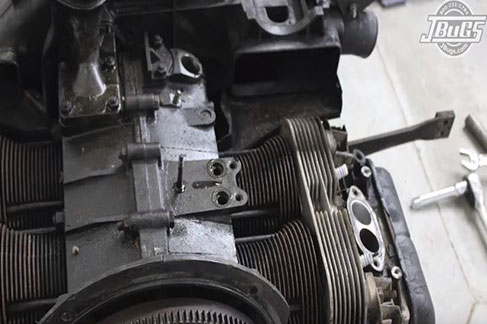

15. Remove the oil cooler

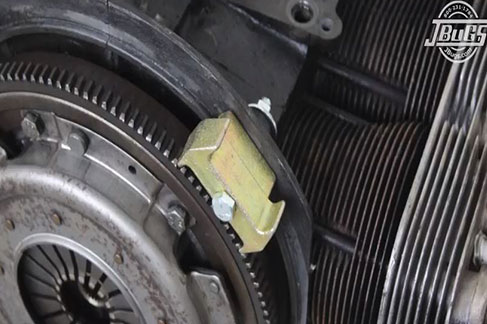

16. Bolt a flywheel lock to the case

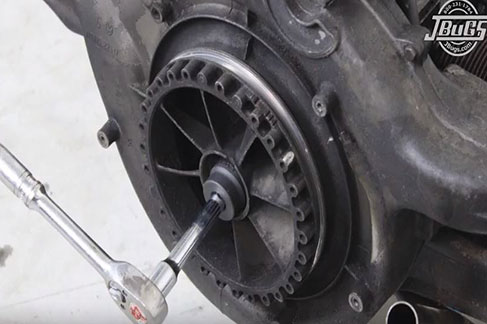

17. Remove the crank pulley nut

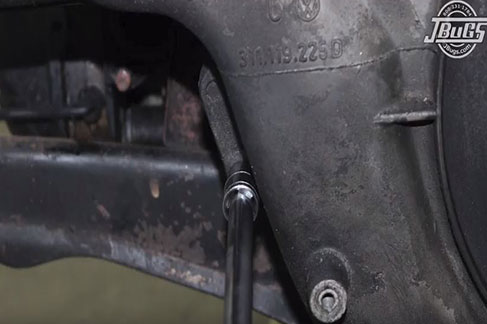

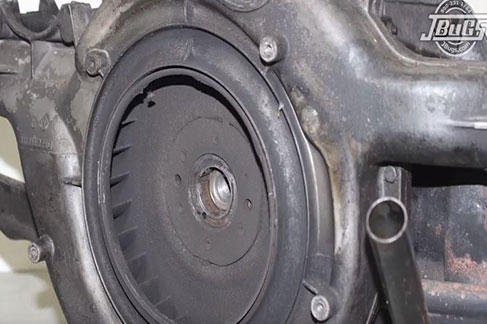

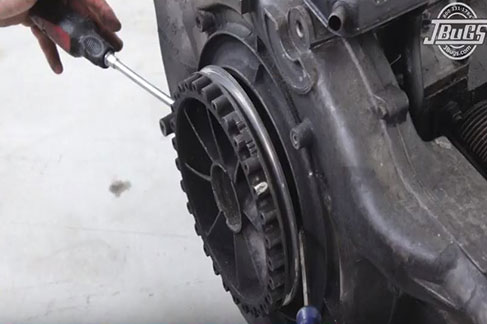

18.Pull off the crank pulley

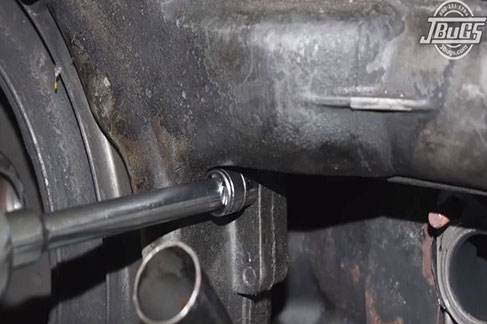

19. Unbolt the coil bracket and front fan shroud bolts and remove front fan shroud

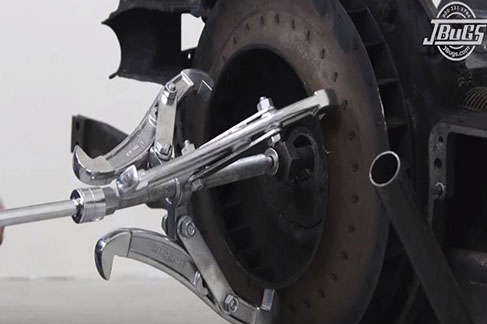

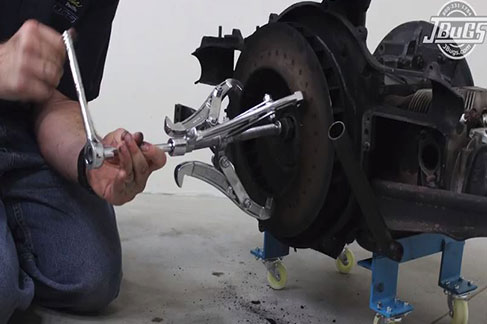

20. Use a pulley puller to pull off the crankshaft fan

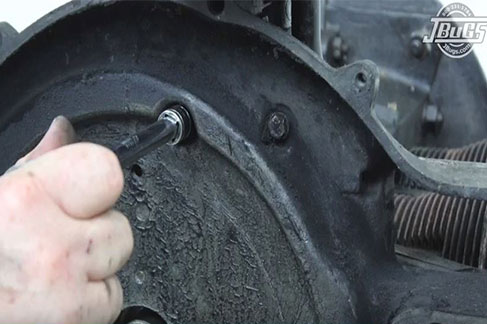

21. Unbolt the rear shroud fan from the oil filler tower and engine

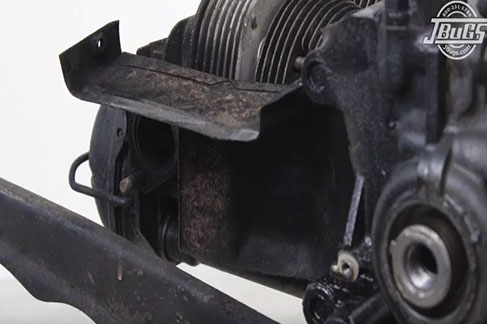

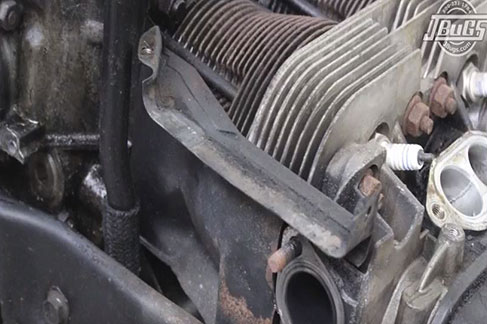

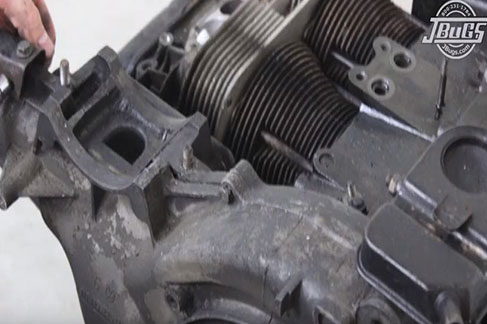

22. Pull off the left and right cylinder deflect tins

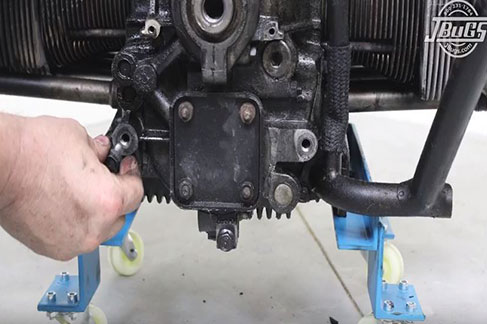

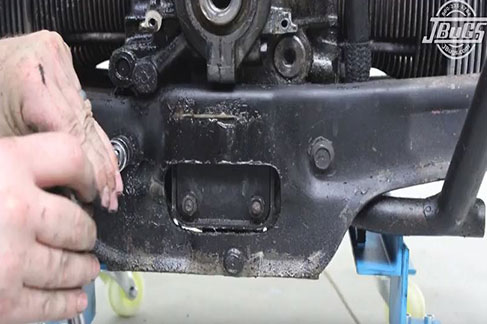

23. Unbolt the rear engine cross brace from the engine case

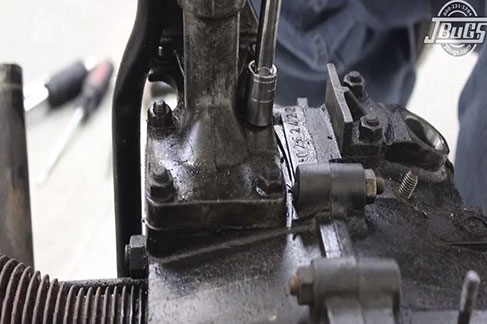

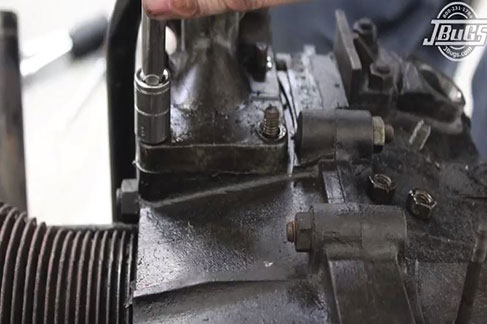

24. Unbolt the oil filler tower from the case

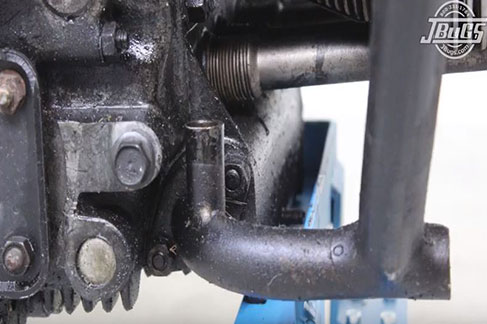

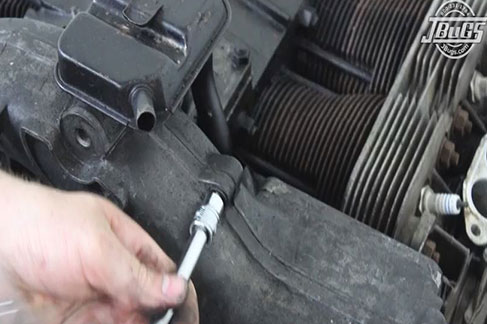

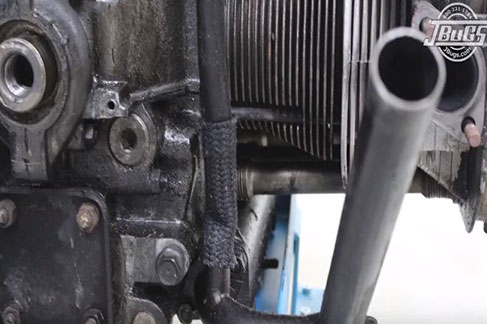

25. Pull the breather tube off of the dipstick tube

Once you’ve completed all of these steps, the engine tins are now removed and you can continue the engine enhancement or rebuild on your classic VW.
