VW Tech Article: Beetle Engine Bay Panel Diagram
| Number | Image | Product Code | Description | Cart |
|---|---|---|---|---|
| 1 |
|
111813151A | VW Lower Rear Firewall - Left - 1954-60 Beetle |
|
| 1 |
|

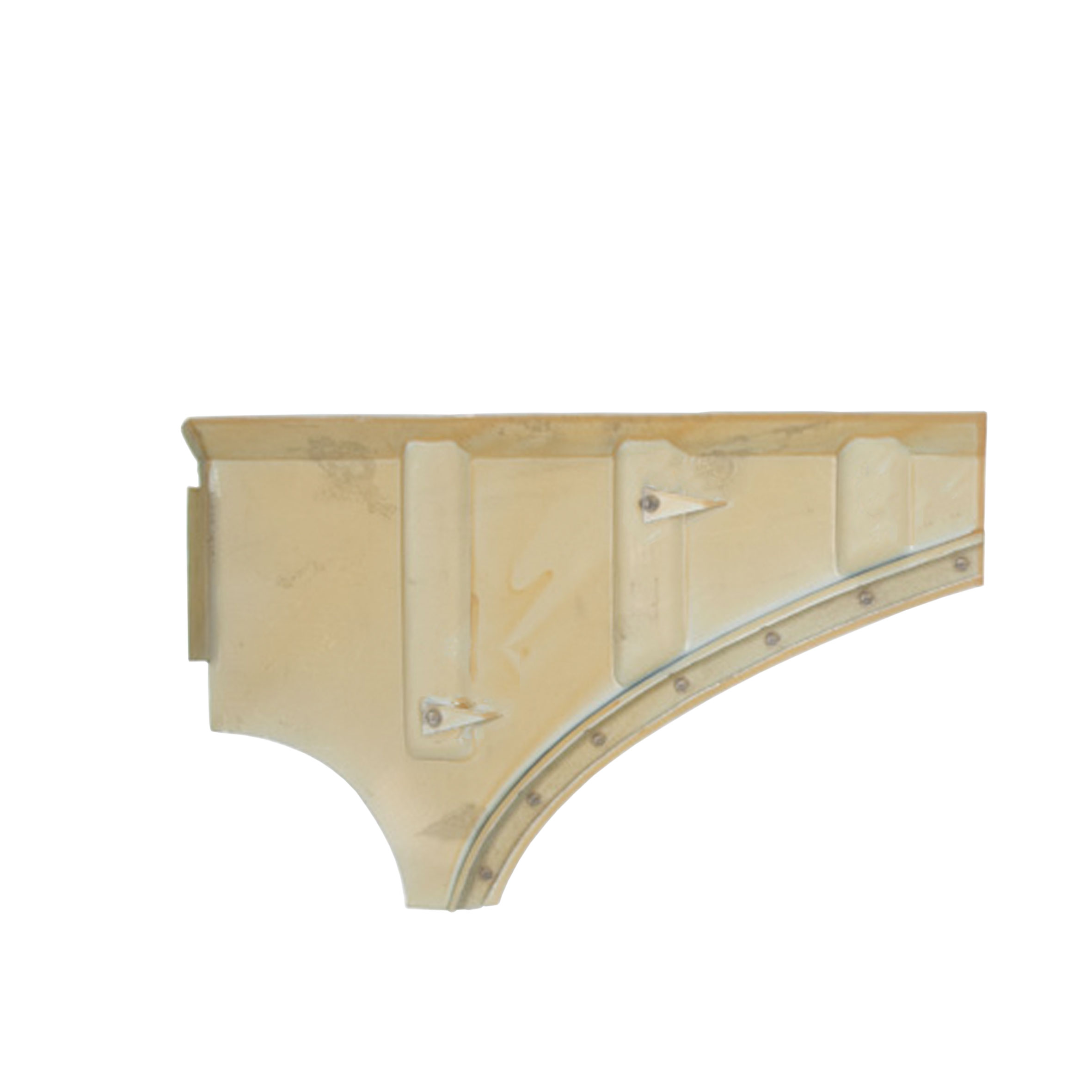

111813151B | VW Lower Rear Firewall - Left - 1961-65 Beetle |
|
| 1 |
|

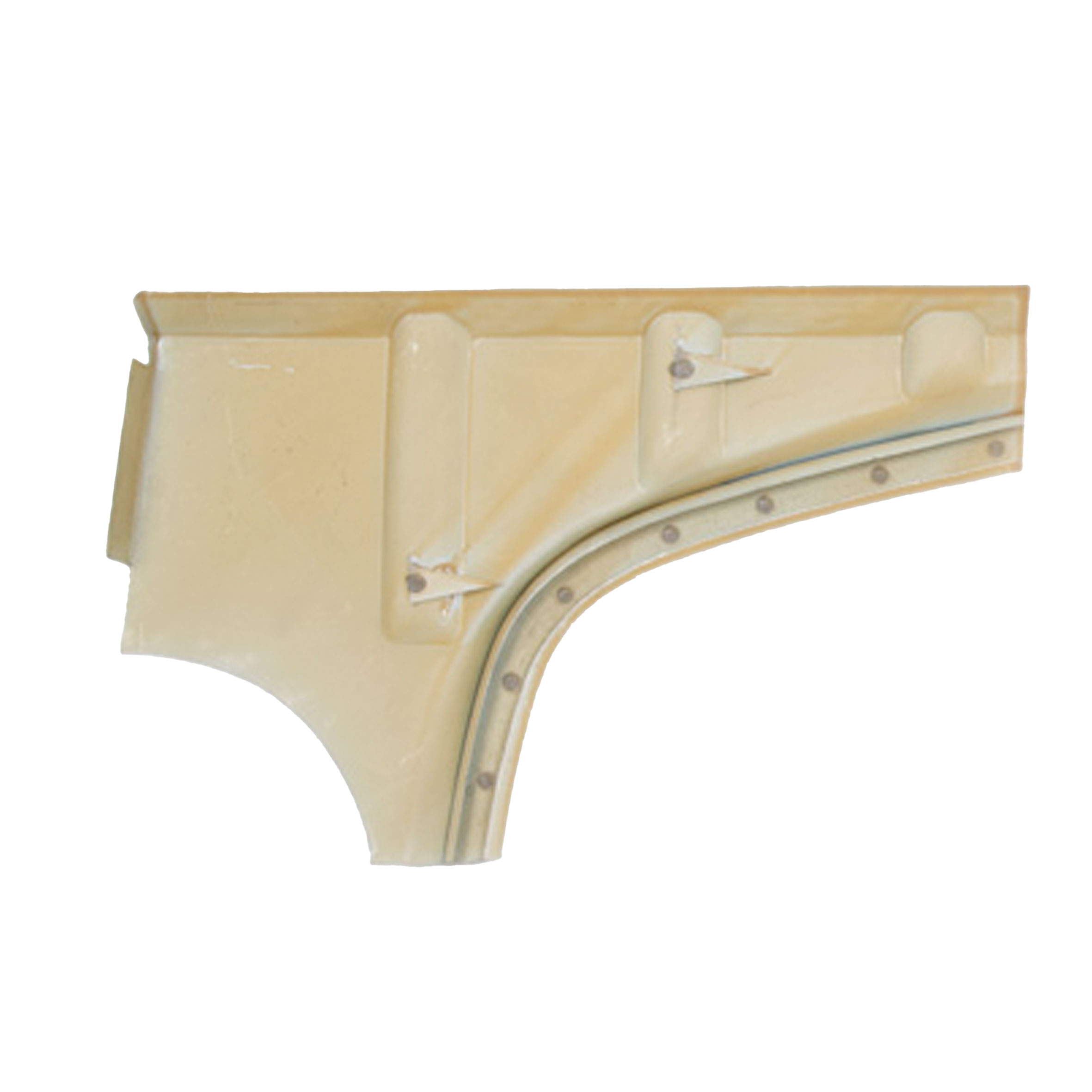

111813151C | VW Lower Rear Firewall - Left - 1966-77 Beetle - 71-79 Super Beetle |
|
| 2 |
|

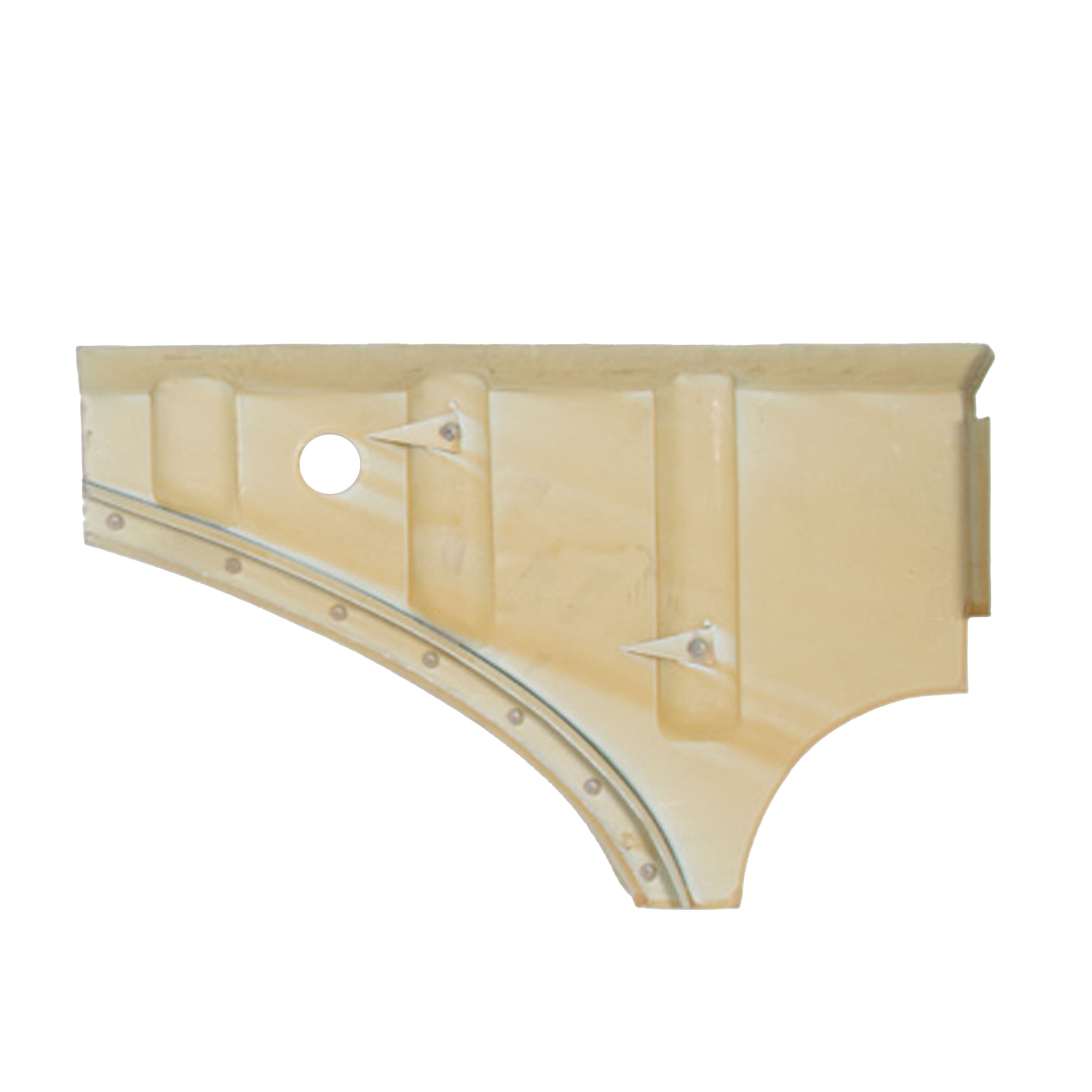

111813152A | VW Lower Rear Firewall - Right - 1954-60 Beetle |
|
| 2 |
|

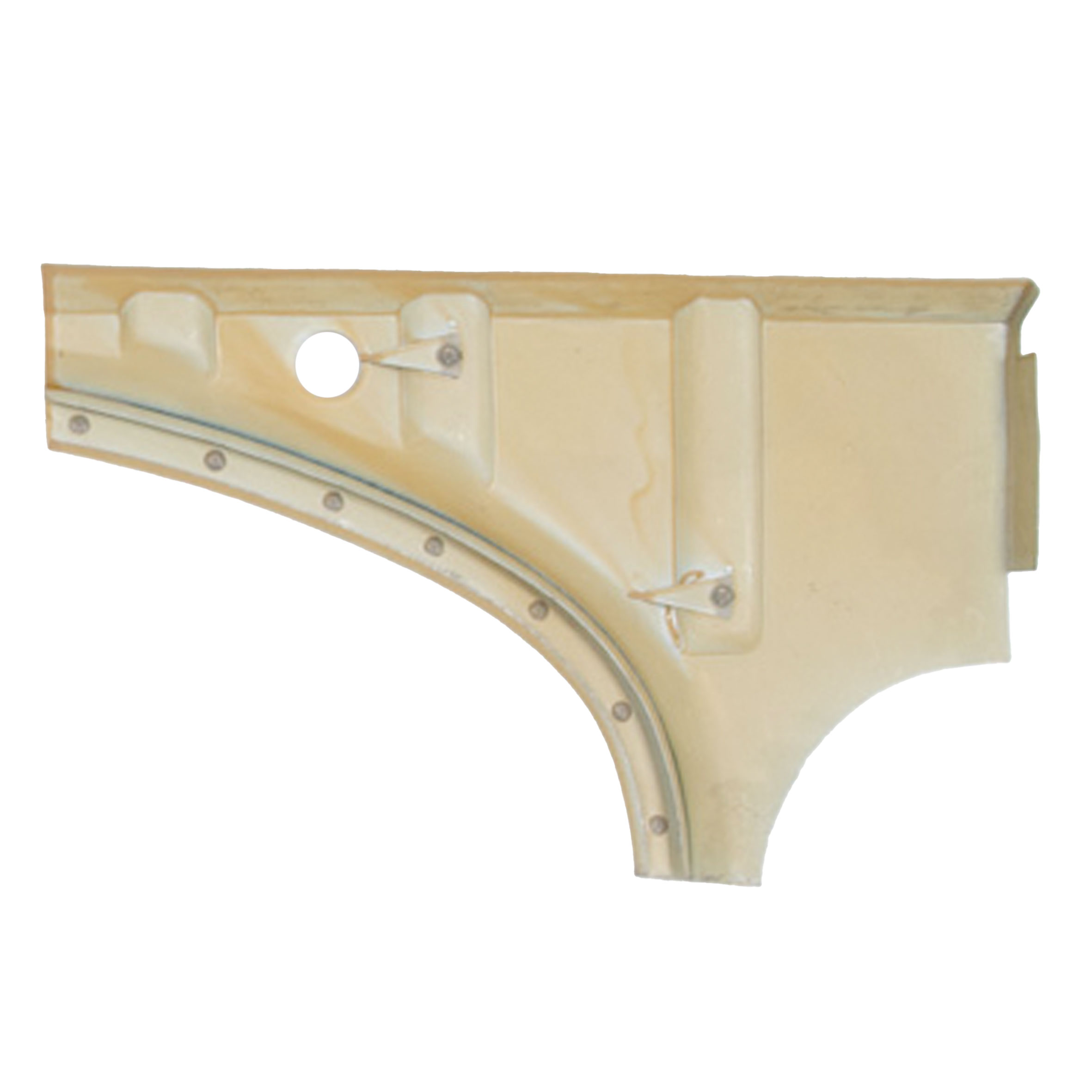

111813152B | VW Lower Rear Firewall - Right - 1961-65 Beetle |
|
| 2 |
|
111813152C | VW Lower Rear Firewall - Right - 1966-77 Beetle - 71-79 Super Beetle |
|
| 3 |
|
111813151D | VW Lower Rear Firewall - Complete - 1954-1957 Beetle |
|
| 3 |
|

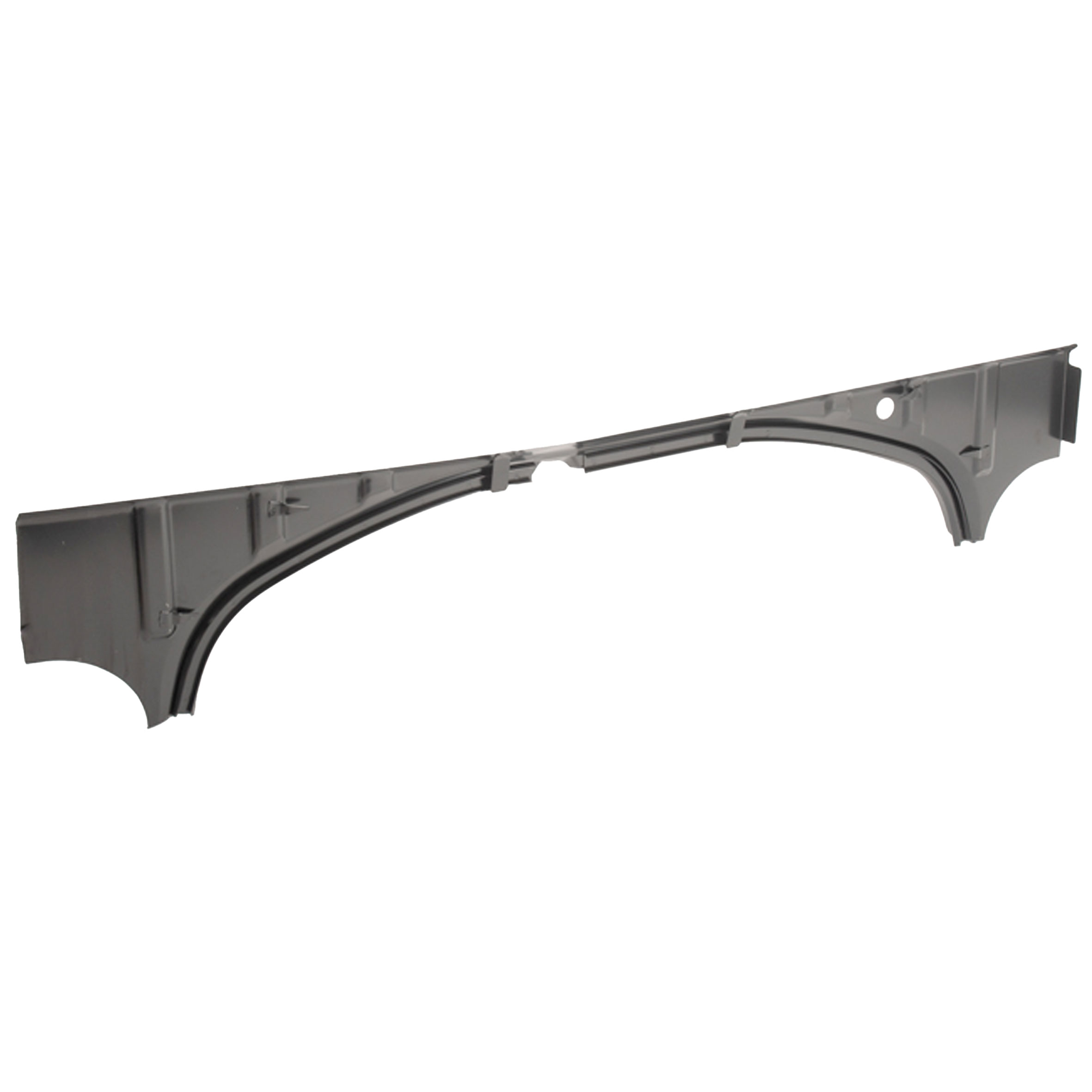

111813151E | VW Lower Rear Firewall - Complete - 1958-65 Beetle |
|
| 3 |
|
111813151F | VW Lower Rear Firewall - Complete - 1966-77 Beetle - 71-79 Super Beetle |
|
| 4 |
|
111813155 | VW Engine To Body Seal Channel - 37” - 1954-1979 Beetle - Super - Ghia - Thing - 1955-1971 Type 2 |
|
| 5 |
|
111813159 | 1954-60 Left Engine Compartment Shelf |
|
| 5 |
|
111813161 | 1961-66 Left Engine Compartment Shelf |
|
| 5 |
|

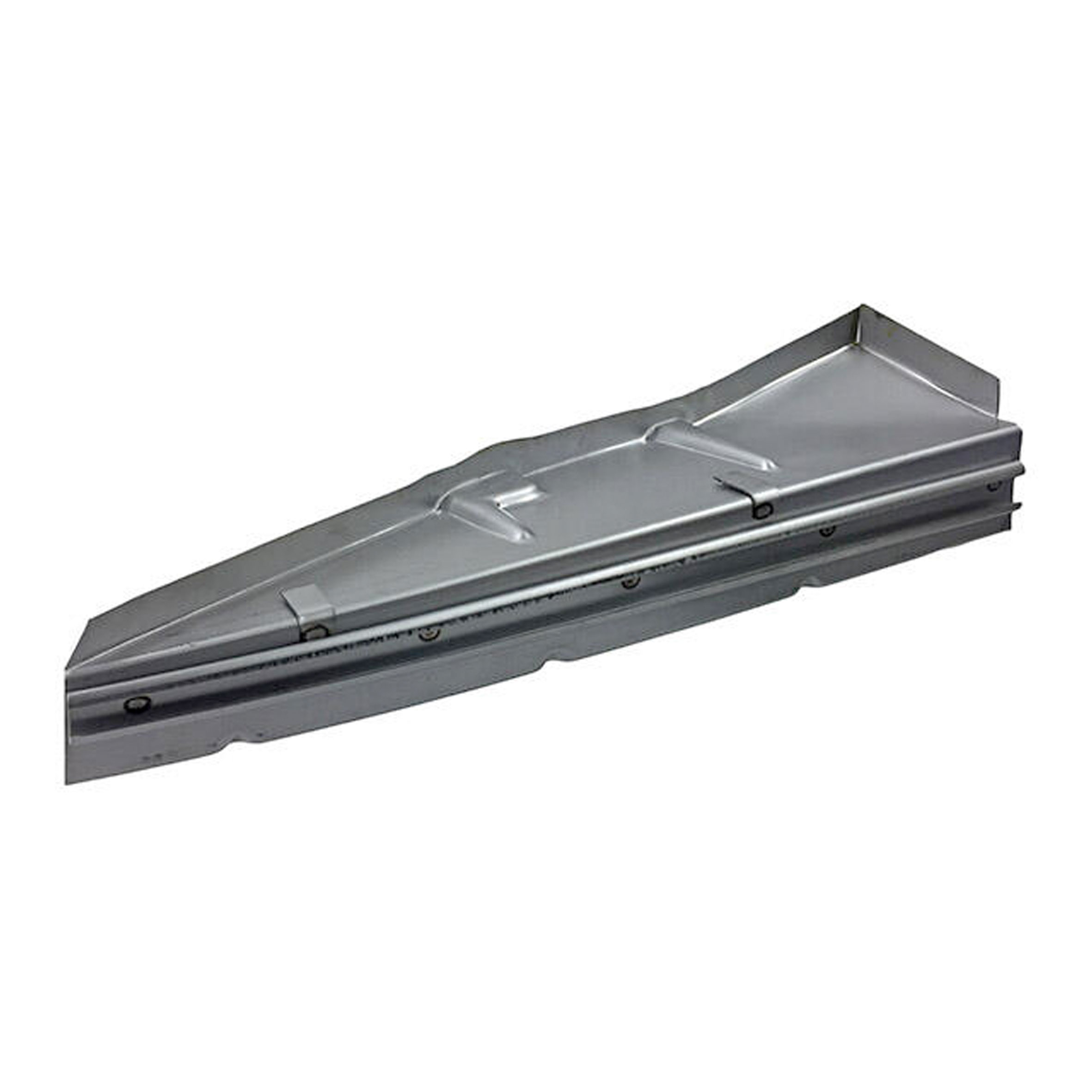

111813165 | 1967-74 Left Engine Compartment Shelf |
|
| 6 |
|

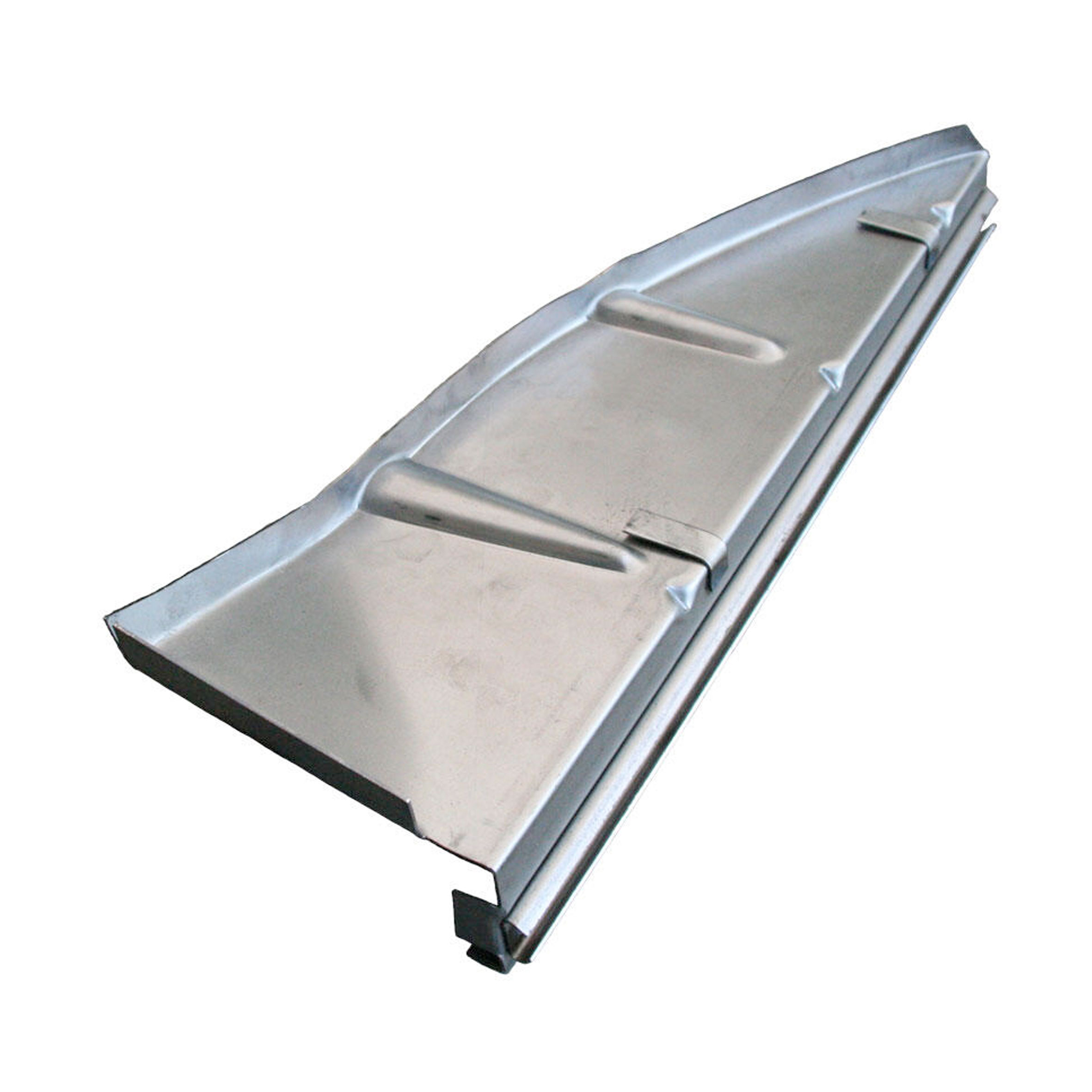

111813160 | 1954-60 Right Engine Compartment Shelf |
|
| 6 |
|
111813162 | 1961-66 Right Engine Compartment Shelf |
|
| 6 |
|
111813166 | 1967-74 Right Engine Compartment Shelf |
|
| 7 |
|
111809635A | 1954-67 Left Rear Bumper Mount | |
| 8 |
|
EIS-1162L | 1954-67 Left Rear Quarter Panel Section | |
| 8 |
|
EIS-1062L | 1968-73 Left Rear Quarter Panel Section | |
| 9 |
|

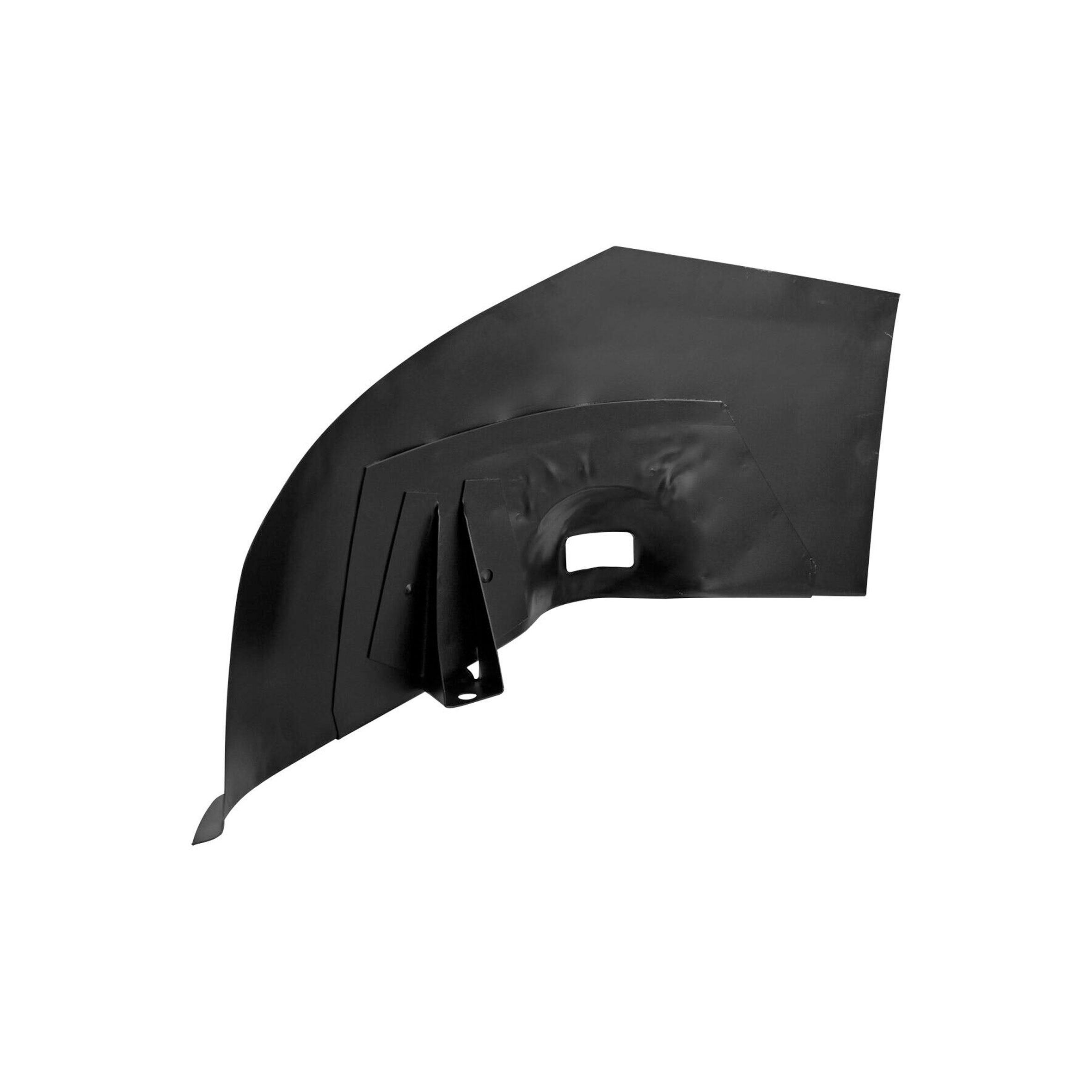

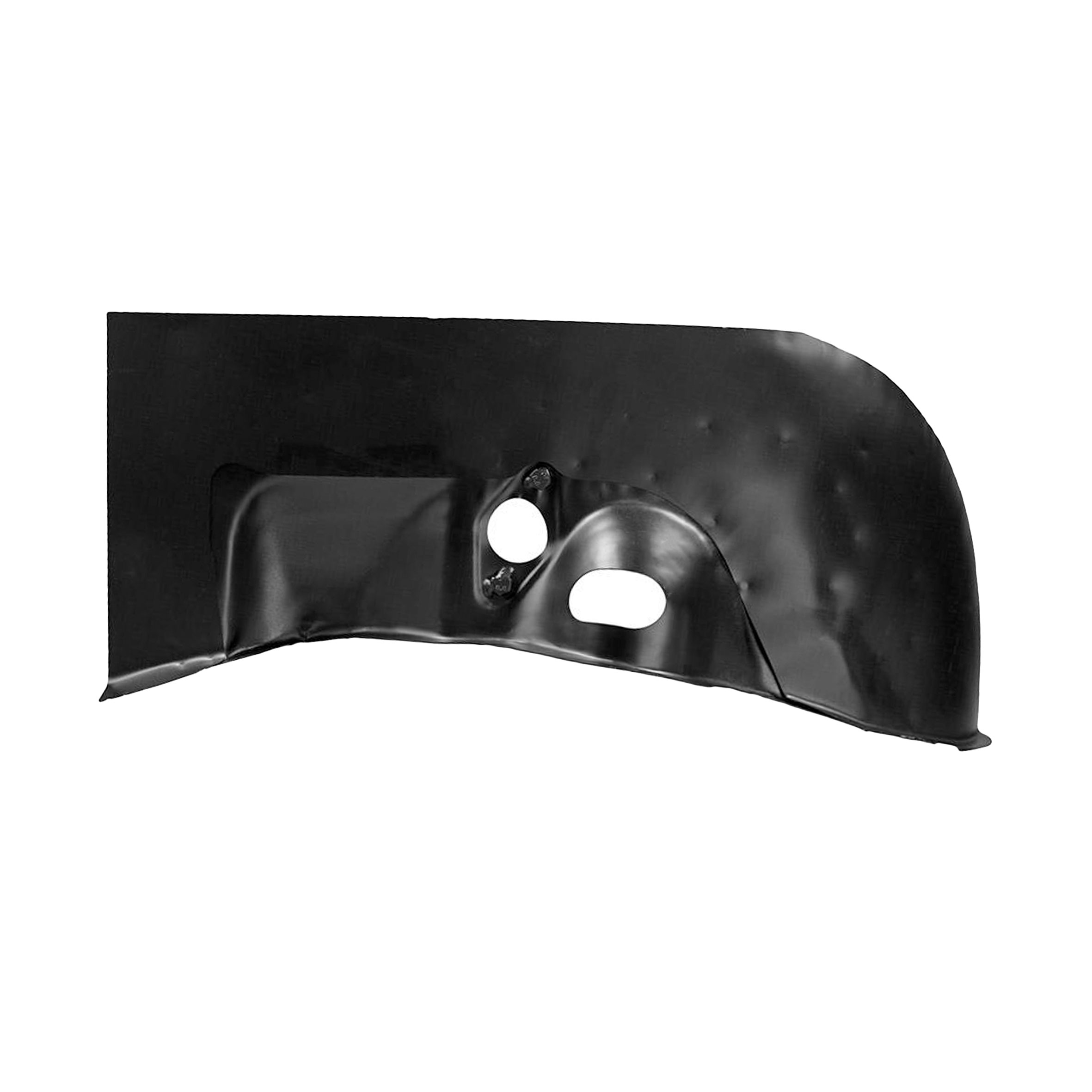

111809085CC | VW Rear Left Shock Tower Mount - 1954-66 Beetle |
|
| 9 |
|

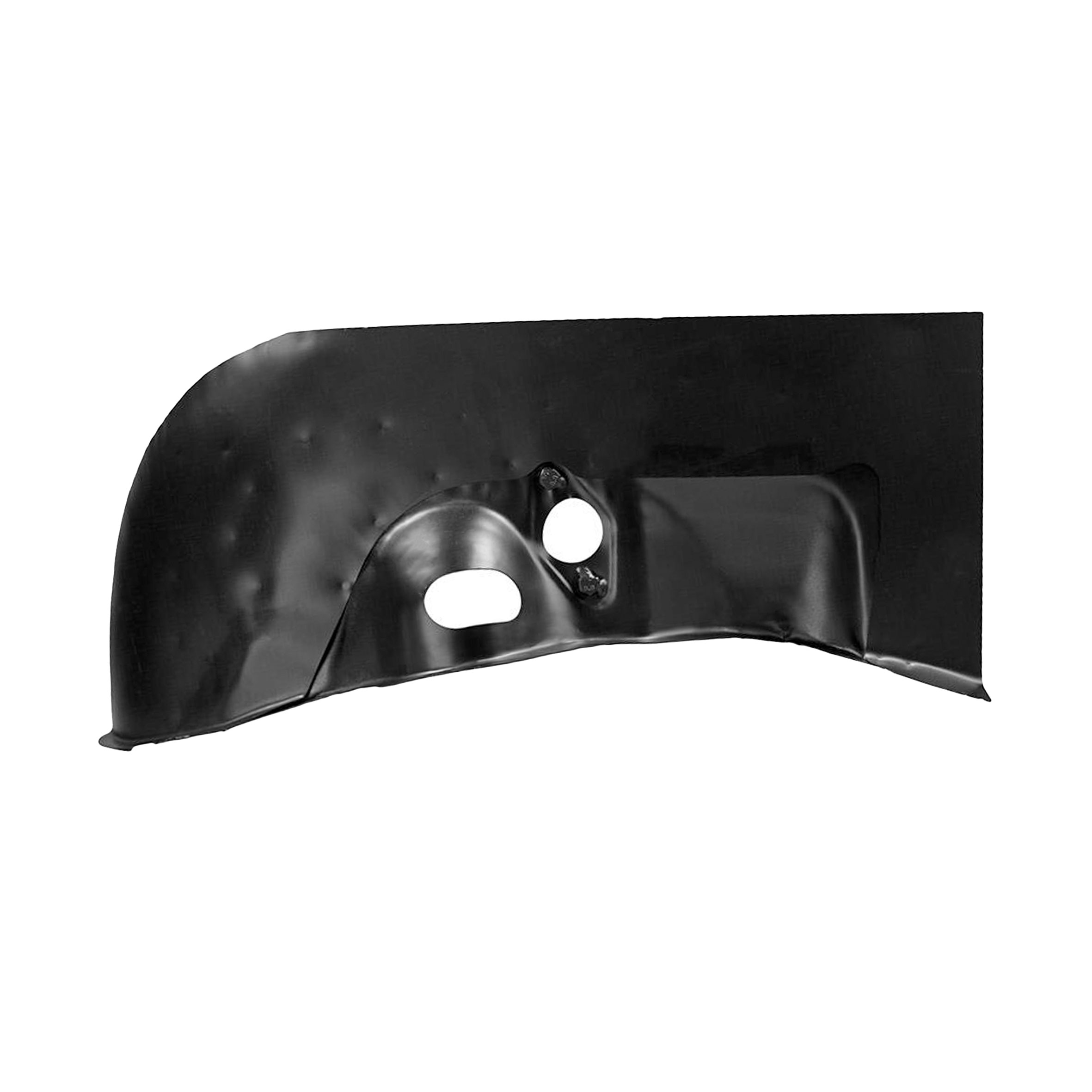

111809085CE | VW Rear Left Shock Tower Mount - 1968-77 Beetle - 71-79 Super Beetle |
|
| 10 |
|

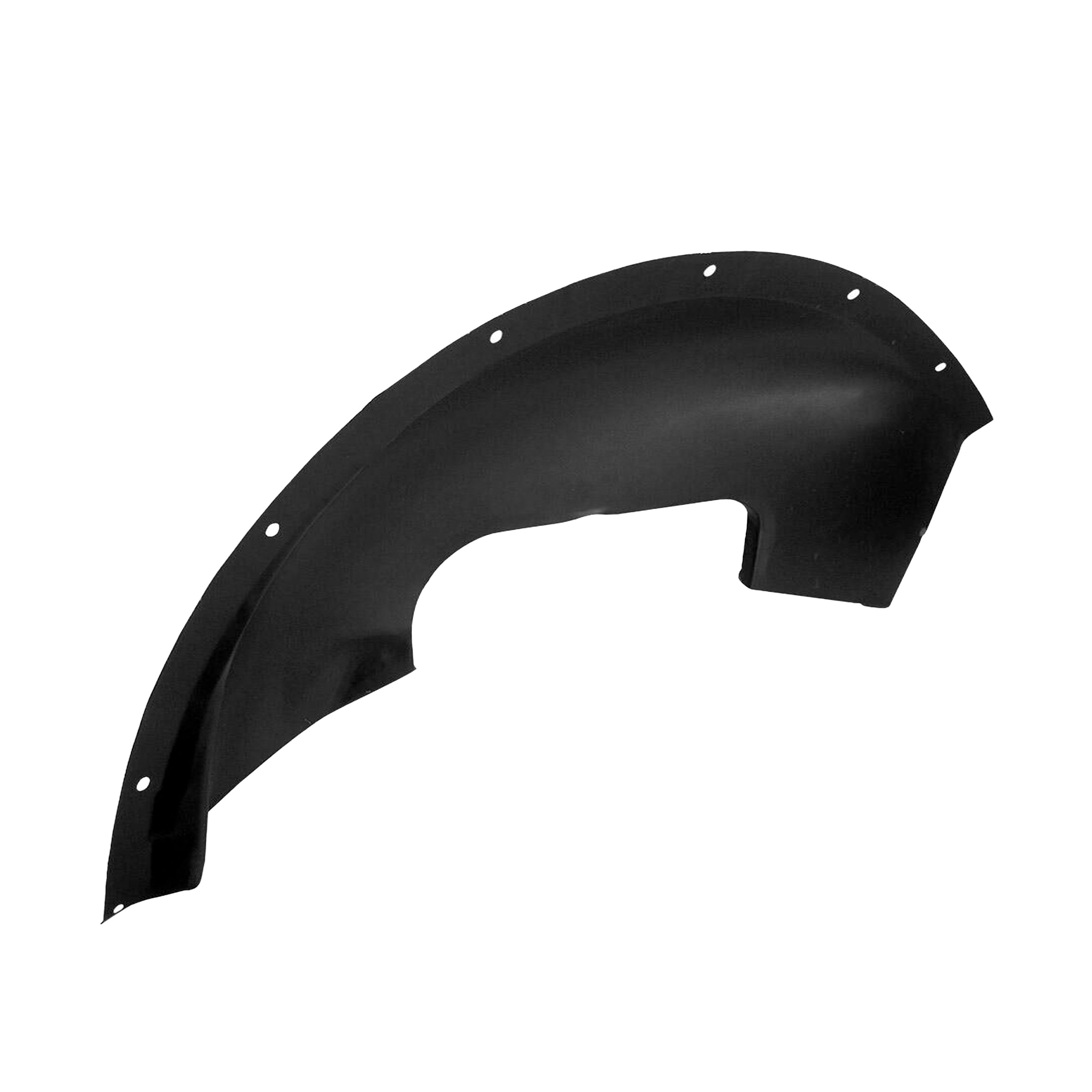

111809091 | VW Inner Fender Well - Rear Left - 1954-77 Beetle - 71-79 Super Beetle |
|
| 11 |
|

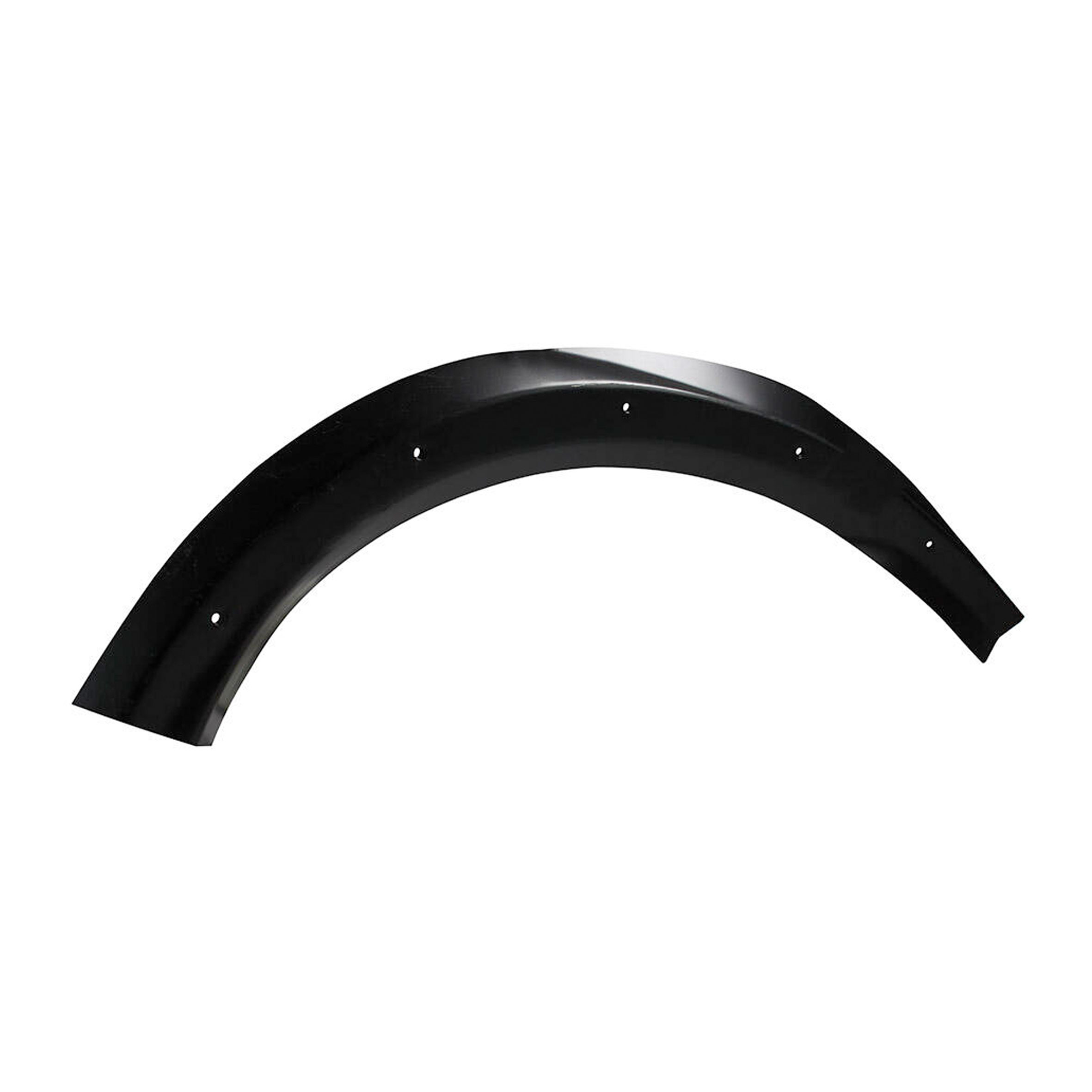

111809085CB | VW Fender Mounting Flange - Rear Left - 1954-77 Beetle - 71-79 Super Beetle |
|
| 12 |
|
111809636A | 1954-67 Right Rear Bumper Mount | |
| 13 |
|
EIS-1162R | 1954-67 Right Rear Quarter Panel Section | |
| 13 |
|
EIS-1062R | 1968-73 Right Rear Quarter Panel Section | |
| 14 |
|

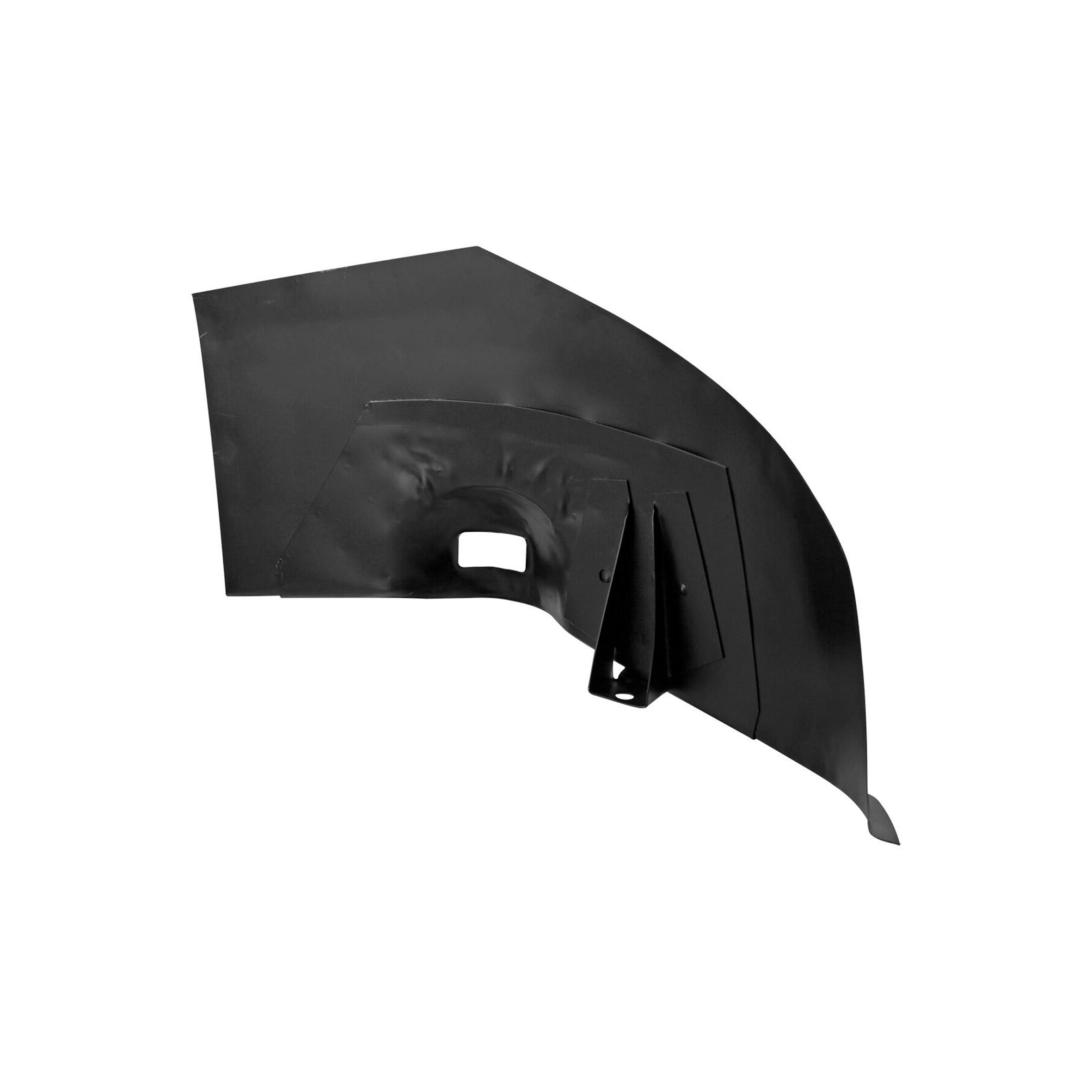

111809086CC | VW Rear Right Shock Tower Mount - 1954-66 Beetle |
|
| 14 |
|
111809086CE | VW Rear Right Shock Tower Mount - 1968-77 Beetle - 71-79 Super Beetle |
|
| 15 |
|

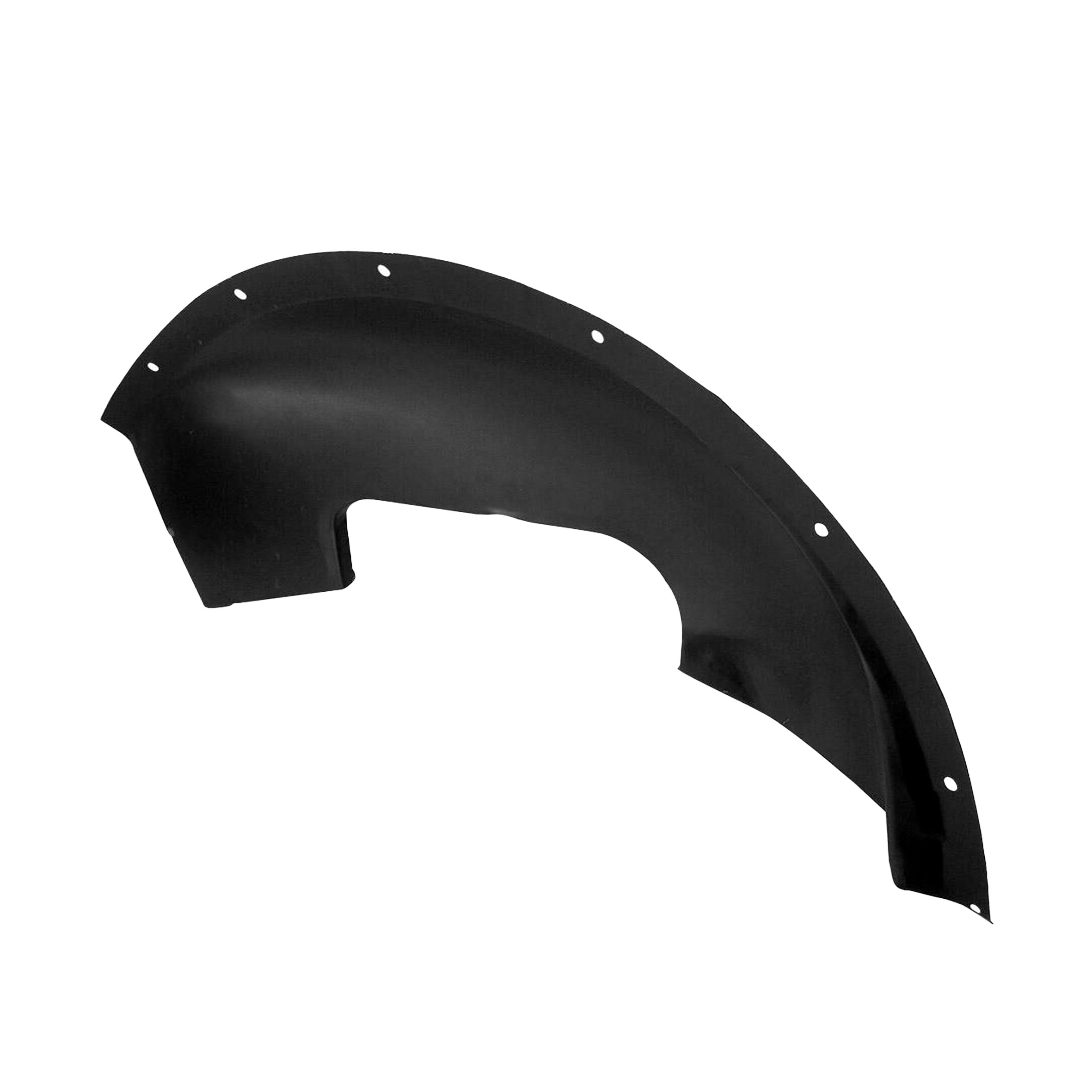

111809092 | VW Inner Fender Well - Rear Right - 1954-77 Beetle - 71-79 Super Beetle |
|
| 16 |
|
111809086CB | VW Fender Mounting Flange - Rear Right - 1954-77 Beetle - 71-79 Super Beetle |
|
| 17 |
|
113813111BH | Luggage Shelf | |
| 18 |
|
111801201AD | 1965-77 Left Rear Cross Member Under Rear Seat | |
| 19 |
|
111805091CC |

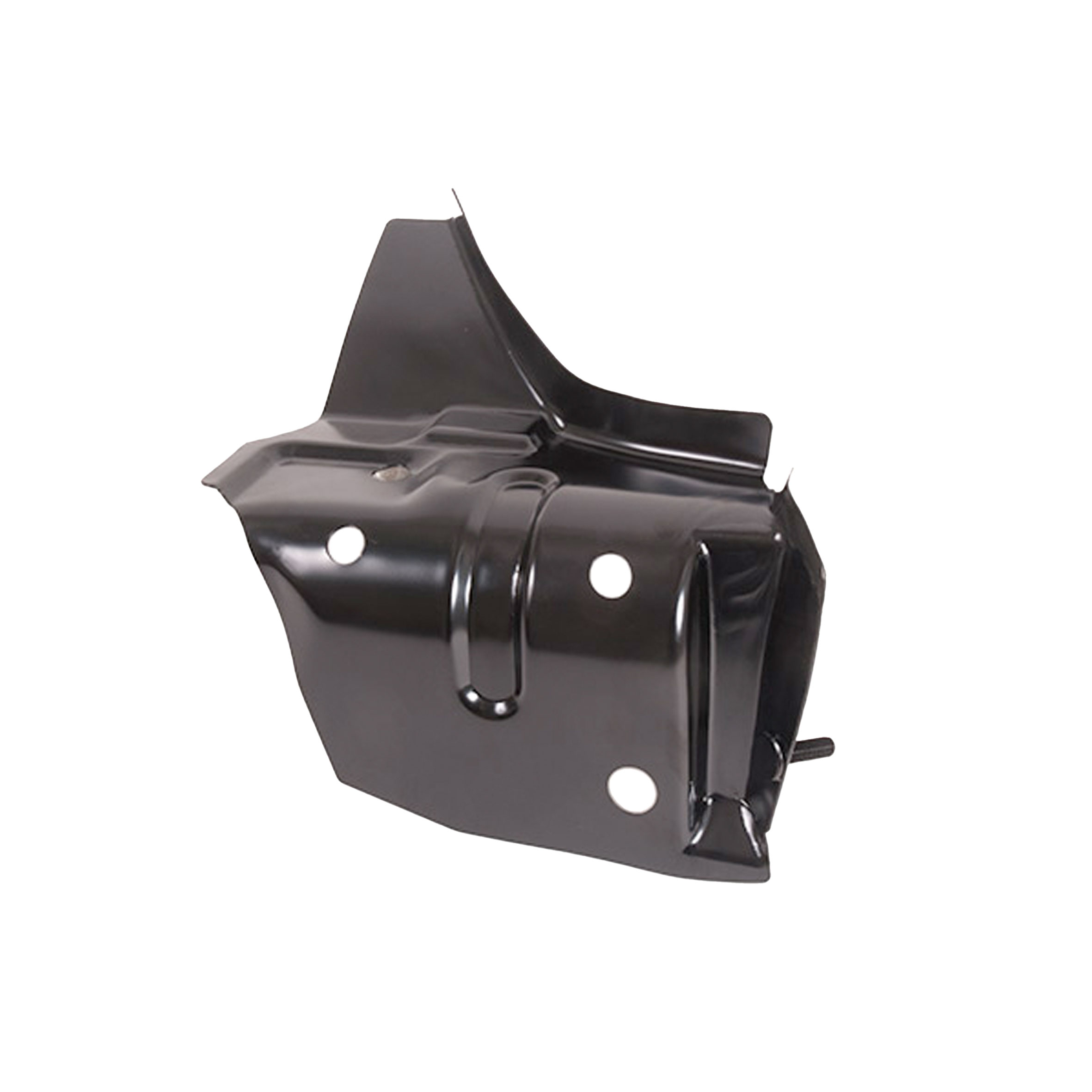

VW Rear Wheel Well Repair Section - Lower Left - 1954-77 Beetle - 71-79 Super Beetle (Also known as heater channel end caps) |
|
| 20 |
|

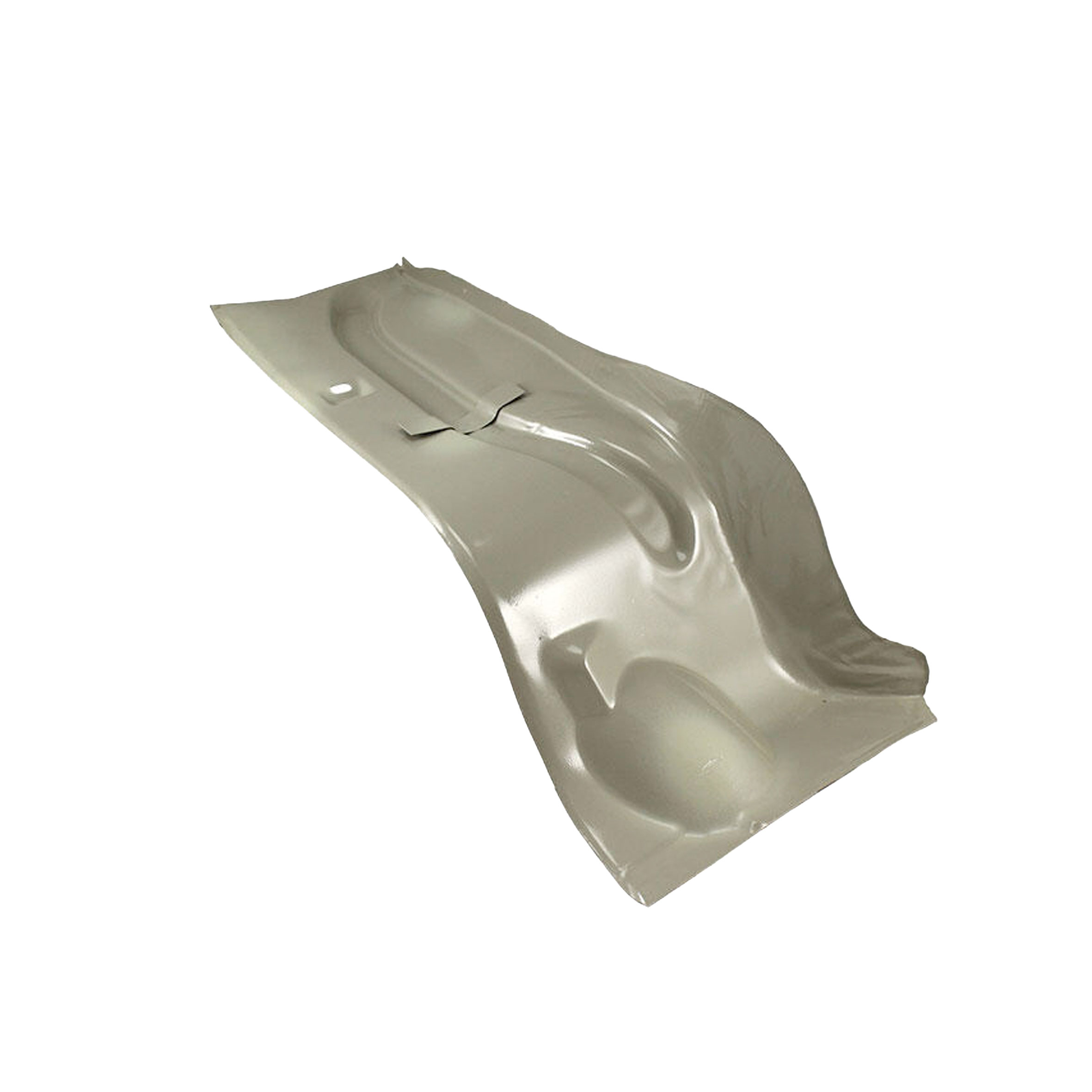

111813117B | VW Rear Luggage Shelf Repair Section - Left - 1954-1977 Beetle - 71-79 Super Beetle |
|
| 21 |
|
111801202AD | 1965-77 Right Rear Cross Member Under Rear Seat | |
| 22 |
|
111805092CC |
VW Rear Wheel Well Repair Section - Lower Right - 1954-77 Beetle - 71-79 Super Beetle (Also known as heater channel end caps) |
|
| 23 |
|

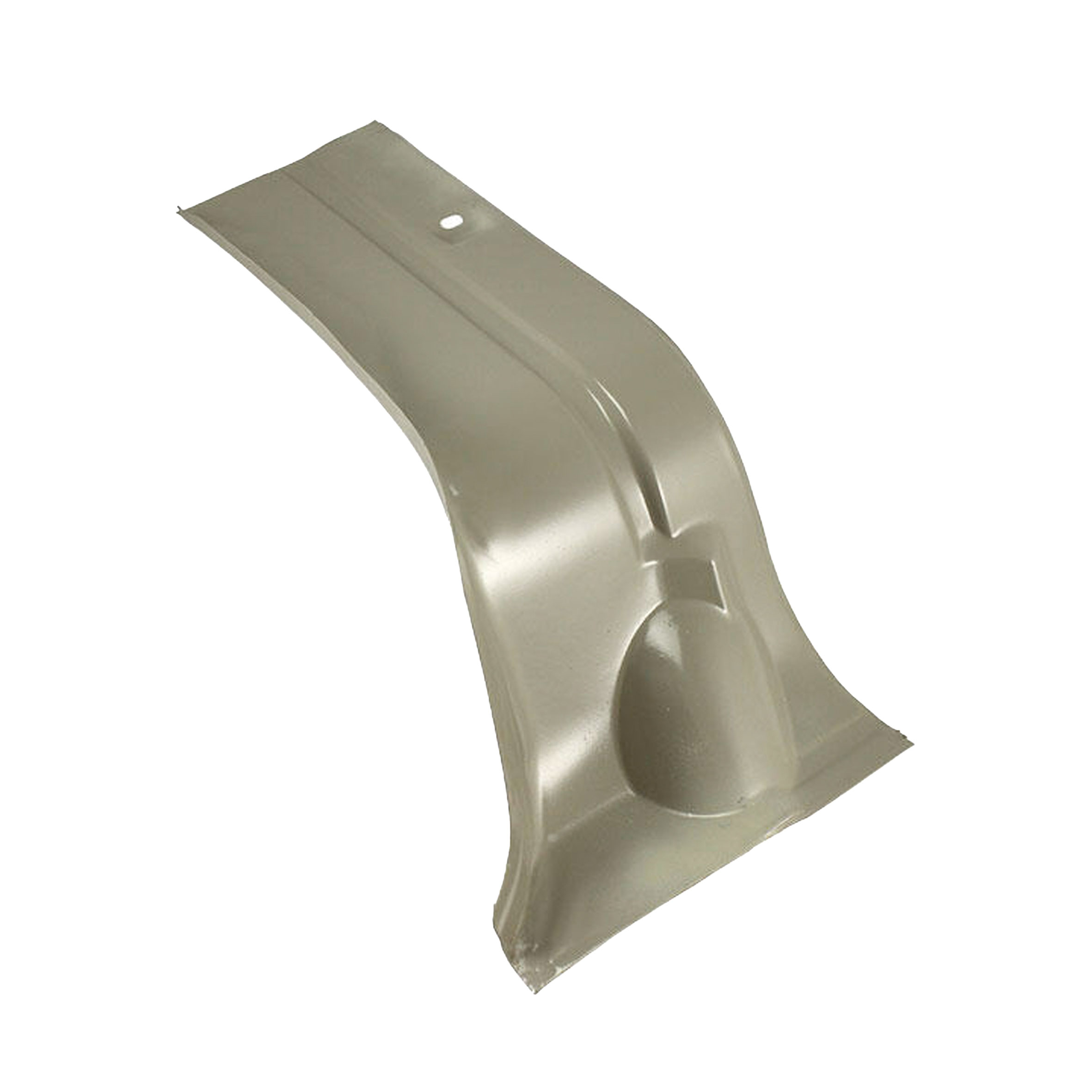

111813118B | VW Rear Luggage Shelf Repair Section - Right - 1954-1977 Beetle - 71-79 Super Beetle |
|
