VW Tech Article: Oil System Diagram
| Number | Image | Product Code | Description | Cart |
|---|---|---|---|---|
|
111117021EBR | VW Oil Cooler - Upright - 1954-70 Beetle - Karmann Ghia - Bus | ||
|
113117021 | VW Oil Cooler - Doghouse - 1971-79 Type 1 - 1971 Type 2 | ||
|
111117151 | VW Oil Cooler Seal - 1954-70 Beetle - Karmann Ghia - Bus | ||
|
9256 | EMPI VW Oil Cooler Seals - Late - Pack of 4 | ||
|
113117301 | VW Dog House Oil Cooler Adapter - 1971-79 Beetle - Super Beetle - Ghia - Thing - 1971 Bus | ||
|
7912 | EMPI VW Oil Filler with Grooved Cap - Vertical - Aluminum | ||
|
7902 | VW Oil Filler W/ Grooved Cap & Vent - Smooth-Flow - Billet | ||
|
17-2963 | EMPI VW Oil Filler with Grooved Cap - Vented - Black Anodized | ||
|
7904 | VW Oil Filler W/ Smooth Cap & Vent - Smooth-Flow - Billet | ||
|
8968 | VW Oil Filler Cap - Stock - Chrome | ||
|
111115487 | VW Oil Filler Cap Gasket | ||
|
113115495 | VW Oil Filler Housing Nut | ||
|
8965 | VW Oil Filler with Tube & Cap - Chrome | ||
|
113115475 | VW Oil Filler to Gen/Alternator Stand - 1961-74 Beetle - Ghia - Thing - Type 3 & 1961-1971 Type 2 |
|
|
|
111-497 | VW Oil Filler Breather Tube Collar - 1955-79 Beetle - Super Beetle - Ghia - Thing - 1955-71 Bus | ||
|
311-541 | VW Oil Breather Draft Tube Boot - 1962-79 All Models | ||
|
9054 | VW Dipstick - Chrome - Stock Length | ||
|
N143935 | Metric 8-1.25x40mm Stud | ||
|
111115111B | VW Oil Pump to Engine Gasket - 1966+ Beetle -Super -Ghia -Type 3 -Thing - 1963-79 Bus - Vanagon | ||
|
311115107AHD | Schadek VW Oil Pump - Flat Cam - 8mm Stud - 1968-69 Type 1 | ||
|
111115107B | VW Oil Pump - Dish Cam - 26mm - 8mm Stud | ||
|
111115131B | VW Oil Pump to Cover Gasket - 8mm Studs - Beetle -Super Beetle -Ghia -Type 3 -Thing -Bus -Vanagon | ||
|
311115141C | VW Oil Pump Cover - 1966-79 Beetle - Super - Ghia - Thing - Type 3 - 1963-71 Bus - 1983-91 Vanagon | ||
|
111115161 | VW Oil Pump Cover Plate Sealing Nut - 8mm | ||
|
OILSTUD | VW Sump Plate Oil Stud - 6x23mm - Each | ||
|
CAPNUT | VW Oil Sump Plate Cap Nuts - Pack of 6 (N0110623) | ||
|
311115175A | VW Oil Strainer Screen - 1961-79 Beetle -Super Beetle - Ghia - Type 3 - Thing - 1961-71 Bus | ||
|
111115488 | VW Oil Change Gasket Kit - 25-36HP | ||
|
113198031 | VW Oil Change Gasket Kit - German - 1200-1600cc | ||
|
113115181A | VW Oil Sump Plate with Drain Hole - 1200cc (40hp) - 1600cc | ||
|
18-1085 | EMPI VW Oil Sump Plate Kit - Black Anodized Billet Aluminum | ||
|
8911 | VW Oil Sump Plate - Chrome - w/o Drain Plug | ||
|
8964 | EMPI VW Sump Plate - Chrome - with Magnetic Drain Plug | ||
|
16-8964 | EMPI VW Oil Sump Plate Kit - Billet Aluminum | ||
|
8856 | EMPI VW Drain Plug - Magnetic - Chrome | ||
|
113115193 | VW Drain Plug For Sump Plate |
|
|
|
9201 | EMPI VW Oil Pressure Booster Kit - Single - 1969 and Earlier | ||
|
9202 | EMPI VW Oil Pressure Booster Kit - Dual - 1971 and Later | ||
|

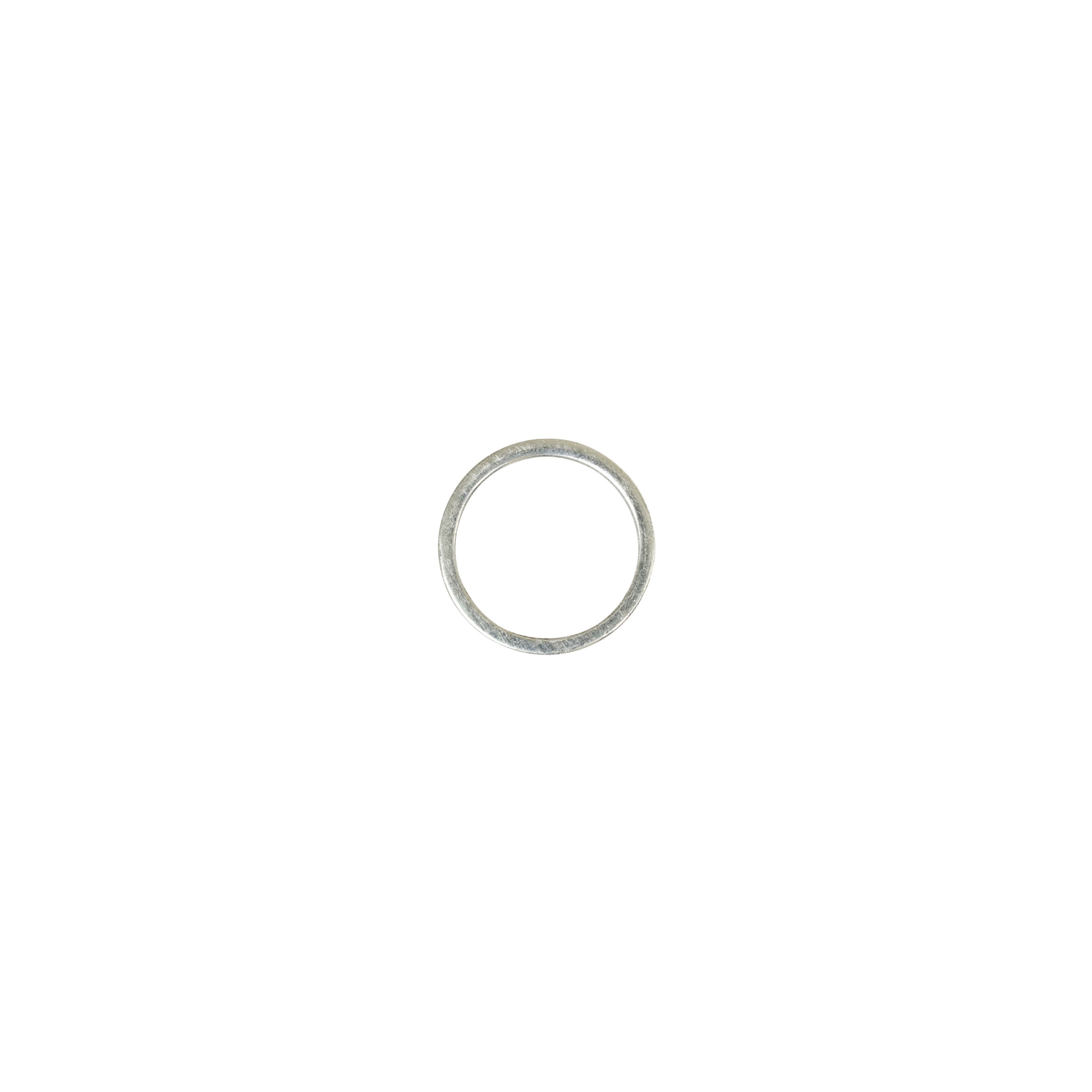

N0138174 | VW Oil Pressure Relief Plug Sealing Washer - 1200 40hp-1600cc Type 1, 2, 3 |
|
|
|
16-9527 | VW Oil Pressure Relief Plug - HEX Head - Pair |
