VW Tech Article: Short Block Engine Diagram
| Number | Image | Product Code | Description | Cart |
|---|---|---|---|---|
| 1 |
|
111109345 | Push Rod Tube Seals - 25-36HP - 16 Pieces | |
| 1 |
|

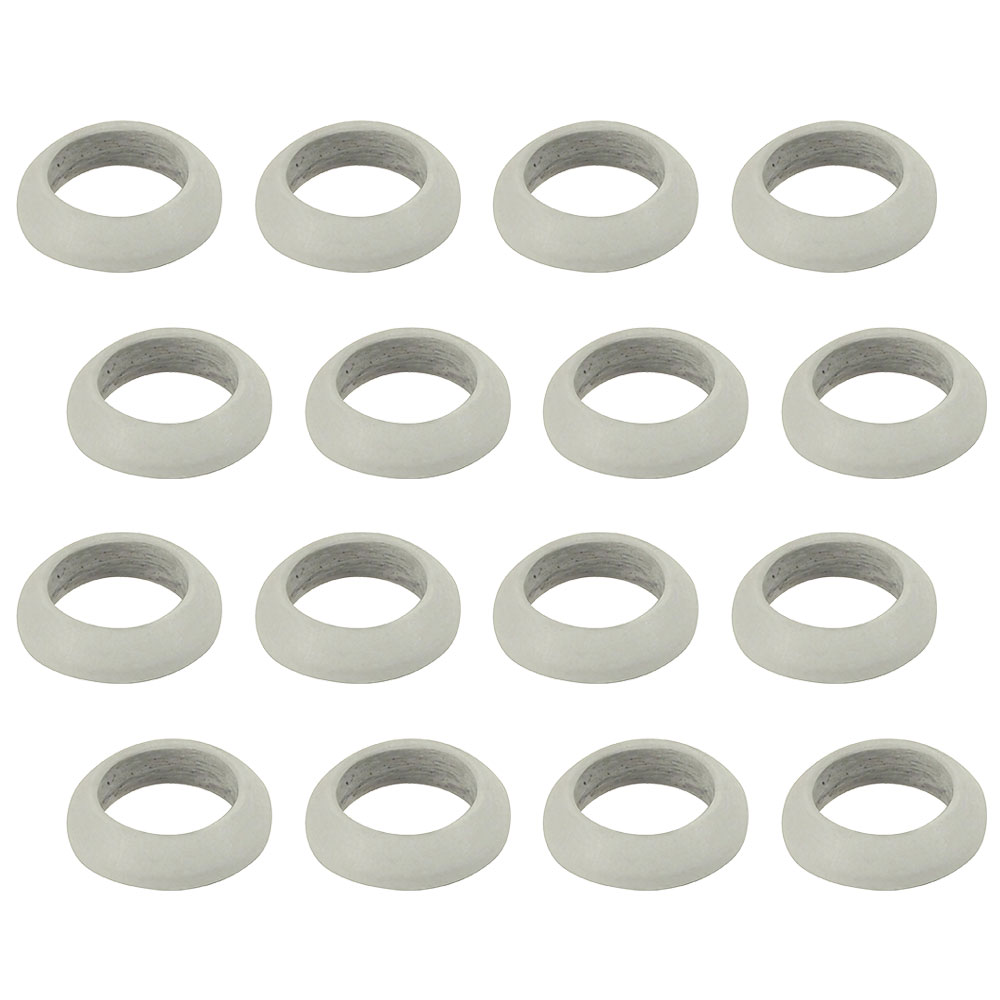

9150 | Push Rod Tube Seals - Stock - 16 Pieces | |
| 1 |
|
9153 | Push Rod Tube Seals - Silicone - 16 Pieces |
|
| 2 |
|
8522-1 | Push Rod Tubes - 1300-1600cc - Stock Style - Set of 8 | |
| 2 |
|
8521 | Push Rod Tubes - Stainless Steel - w/o Seals - Set of 8 | |
| 3 |
|
98-0431-B | Stock Magnesium VW Engine Case for 85.5mm Pistons & Cylinders |
|
| 4 |
|
111105235A | Distributor Drive Gear Spacer Shim Washers | |
| 5 |
|
113105231B | Distributor Drive Gear Pinion - Type 1 | |
| 6 |
|
111105233 | Distributor Drive Gear Pinion Spring | |
| 7 |
|
311109301A | Stock Length Pushrod - Chromoly | |
| 8 |
|
113109309C | Lifters/Cam Followers - 1200-1600cc - Set of 8 | |
| 9 |
|
111198541 | Cam Bearing Set - 1966+ Beetle/Super/Ghia | |
| 10 |
|
98-0156 | Metal Camshaft Plug - 1966+ Beetle/Super/Ghia | |
| 11 |
|
113109021D | Flat Cam - 1961-71 Beetle/Super/Ghia | |
| 11 |
|
113109021GBR | Dished Cam - 1972-79 Beetle/Super/Ghia | |
| 12 |
|
311198069AA | 85.5mm VW Piston & Cylinder Kit for 69mm Cranks | |
| 13 |
|

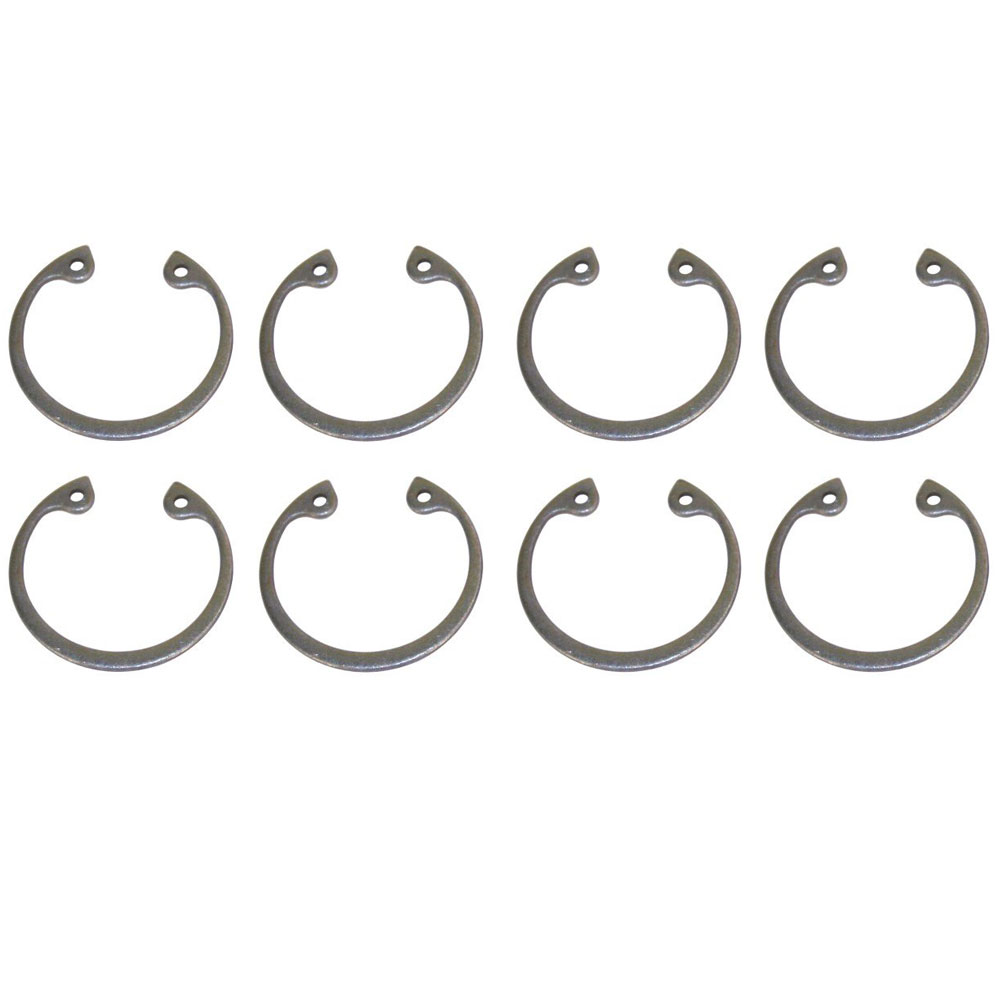

4068 | Wrist Pin Clips - Set of 8 | |
| 14 |
|
311105401B-4 | Stock Connecting Rods - 1300-1600cc - Set of 4 | |
| 15 |
|
113105701 | Rod Bearing Set - 1961-79 Beetle/Ghia | |
| 16 |
|
4029 | Chromoly Gland Nut & Washer | |
| 17 |
|
311105273A | Flywheel - 200mm - New - All 12v 1500-1600cc Engines | |
| 18 |
|
113105277 | Flywheel Dowel Pin | |
| 19 |
|
043105101 | Crankshaft 69mm Stroke - Cross Drilled | |
| 20 |
|
111105213 | Cam Gear Key - Beetle/Ghia | |
| 21 |
|
113105249 | Crank Pulley Keyway | |
| 22 |
|
113105209 | Camshaft Drive Gear - 1961-79 Beetle/Ghia |
|
| 23 |
|
113105219 | Crankshaft Gear Spacer | |
| 24 |
|
111105223 | Distributor Crank Drive Timing Gear - Beetle/Ghia | |
| 25 |
|
111105227 | Crankshaft Timing Gear Snap Ring - 1300cc-1600cc | |
| 26 |
|
113105241A | Oil Slinger 1300-1600cc | |
| 27 |
|
8969 | Stock Crank Pulley - Chrome | |
| 28 |
|
9117 | Crank Pulley Bolt and Washer- Chrome | |
| 29 |
|
111101123 | Engine Main Bearing Dowel Pin - Set of 5 | |
| 30 |
|
111198461 | Main Bearing Set - Standard Case & Crank - 1961-79 Beetle/Ghia |
|
| 31 |
|
113101219 | Alternator Stand Gasket | |
| 32 |
|
113101221B | Oil Deflector Plate | |
| 33 |
|
9194 | Alternator / Generator Stand - Raw Aluminum - 12 Volt | |
| 33 |
|
8991 | Alternator / Generator Stand - Chrome - 12 Volt | |
| 33 |
|
00-9199-0 | Alternator / Generator Stand - Black Aluminum - 12 Volt | |
| 34 |
|
113105245FS | Rear Main Seal - at Flywheel | |
| 35 |
|
Type-1-Flywheel-Shim-Kit | 1300-1600cc Type 1 Flywheel Shim Kit |
|
| 36 |
|
311105295A | Flywheel Oil Seal |
