VW Tech Article: Ignition System Diagram
| Number | Image | Product Code | Description | Cart |
|---|---|---|---|---|
| 1 |
|
113905115 | Beru VW Coil - 12 Volt - 3 Ohm | |
| 1 |
|
00012 | Bosch 12 Volt Coil with Bracket - 3 Ohm | |
| 1 |
|
00061 | Bosch VW 12 Volt Ignition Coil |
|
| 1 |
|
40611 | PerTronix Flame Epoxy Thrower Coil - 3 Ohm - 40000 Volt | |
| 1 |
|
40511 | PerTronix Flame Oil Thrower Coil - 3 Ohm - 40000 Volt | |
| 1 |
|
PT40501 | PerTronix Flame-Thrower Oil Filled Coil - 3 Ohm - 40000 Volt - Chrome | |
| 2 |
|
111998031A | JBugs Premium Type 1 & 2 Spark Plug Wires | |
| 2 |
|
9314 | EMPI Type 1 Ignition Spark Plug Wire Set - Black | |
| 2 |
|
9411 | EMPI Type 1 Ignition Spark Plug Wire Set - Red | |
| 2 |
|
9313 | EMPI Type 1 Ignition Spark Plug Wire Set - Grey | |
| 2 |
|
9475 | EMPI Type 1 Ignition Spark Plug Wire Set - Yellow | |
| 2 |
|
98-9925-B | EMPI "Bosch style" VW Spark Plug Wires | |
| 3 |
|
W8AC | Bosch WR8AC Spark Plug - 14mm - 1/2 inch Reach - Each | |
| 3 |
|
BR6HS | Set of 4 NGK Spark Plugs - 14mm - 1/2" Reach - 13/16" Hex | |
| 4 |
|
113-451A | Spark Plug Wire Holders - Set of 3 - All 1961-79 Models | |
| 4 |
|
8751 | EMPI Wire Separator Kit - Black | |
| 4 |
|
8748 | EMPI Wire Separator Kit - Red | |
| 4 |
|
8747 | EMPI Wire Separator Kit - Chrome | |
| 4 |
|
8749 | EMPI Wire Separator Kit - Blue |
|
| 4 |
|
8750 | EMPI Wire Separator Kit - Yellow | |
| 5 |
|
0231178009 | Distributor - Bosch 009 Style Centrifugal Advance | |
| 6 |
|
113905205AN | Distributor - SVDA Vacuum Advance |
|
| 7 |
|
03019 | VW Distributor Cap - 1955-60 Beetle - Karmann Ghia - 1955-59 | |
| 7 |
|
03001 | Distributor Cap - 1965-68 Beetle - Karmann Ghia - 1964-68 | |
| 7 |
|
03010 | Bosch VW Distributor Cap - 1969-79 Beetle - Super Beetle - Ghia | |
| 8 |
|
04008 | Ignition Rotor - 1955-60 Beetle - Karmann Ghia - 1955-59 | |
| 8 |
|
04010 | Ignition Rotor - 1961-64 Beetle - Karmann Ghia - 1960-63 | |
| 8 |
|
04006 | Ignition Rotor - 1965-68 Beetle - Ghia - 1964-68 | |
| 8 |
|

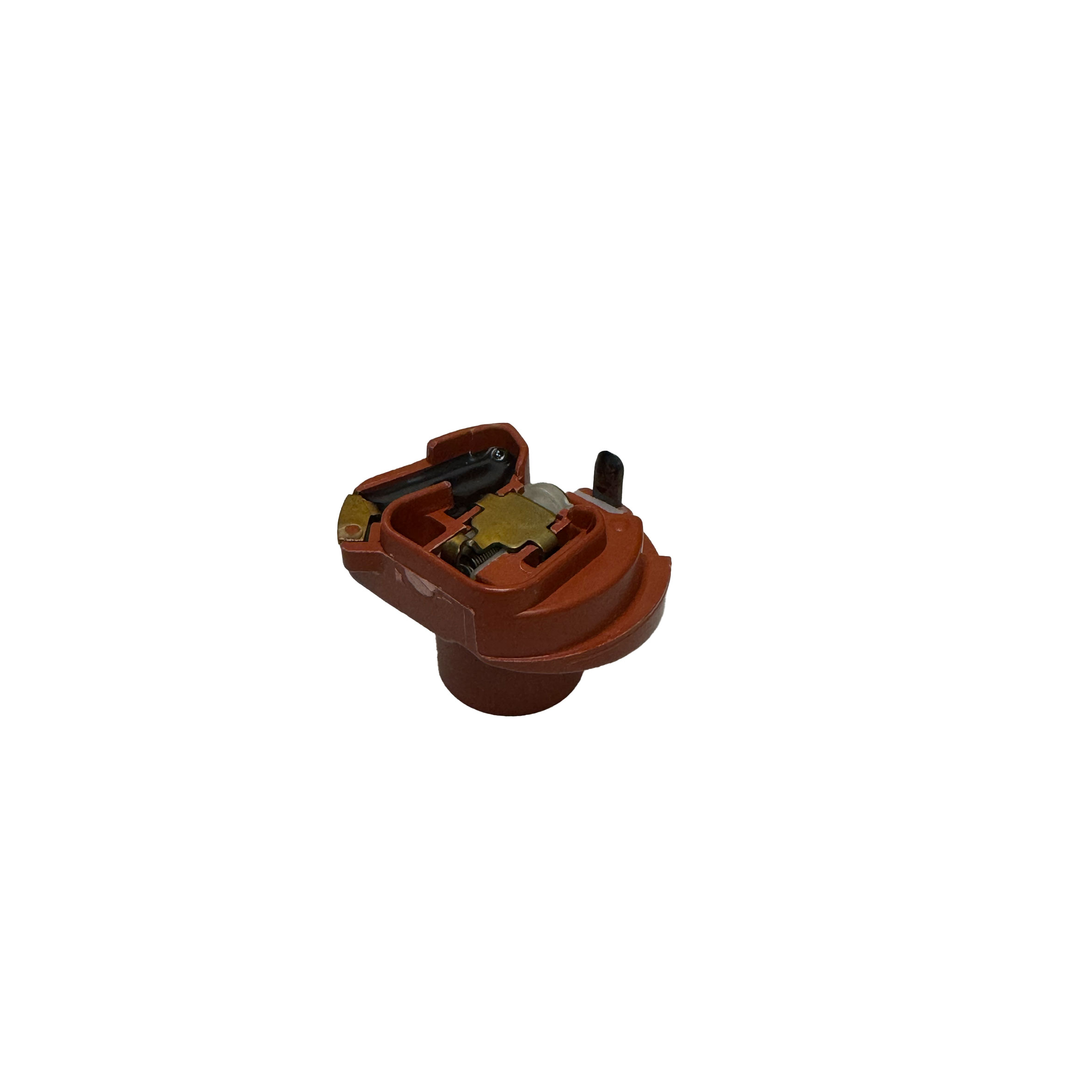

04033 | Ignition Rotor - 1969-79 Beetle - Super Beetle - Ghia | |
| 8 |
|
BOS-04023 | Bosch VW Ignition Rotor - 6500 RPM Rev Limiting - 1969-79 Beetle - Super Beetle - Ghia | |
| 8 |
|
BOS-04028 | Bosch VW Ignition Rotor - 7100 RPM Rev Limiting - 1969-79 Beetle - Super Beetle - Ghia | |
| 8 |
|
BOS-04021 | 4500RPM Rev Limiting Ignition Rotor - 1969-79 Beetle - Super Beetle - Ghia | |
| 8 |
|
BOS-04010 | Bosch VW Ignition Rotor - 1961-64 Beetle - Karmann Ghia | |
| 8 |
|
BOS-04016 | 5400RPM Rev Limiting Ignition Rotor - 1969-79 Beetle - Super Beetle - Ghia | |
| 9 |
|
01001 | Bosch VW Ignition Points - 1954-55 Beetle | |
| 9 |
|
01006 | Ignition Points - 1961-64 Beetle - Ghia - 1960-63 | |
| 9 |
|
01009 | Ignition Points - 1965-67 Beetle - Ghia - 1964-67 | |
| 9 |
|
01011 | Ignition Points - 1968-79 Beetle - Super Beetle - Ghia | |
| 9 |
|
16-9433 | Replacement Points for EMPI VW Distributors | |
| 10 |
|
02170 | Ignition Condenser - 1955-1959 Beetle - Karmann Ghia | |
| 10 |
|
02006 | Ignition Condenser - 1961-64 Beetle - Ghia | |
| 10 |
|
02007 | Ignition Condenser - 1965-70 Beetle - Ghia | |
| 10 |
|
02039 | Ignition Condenser - 1968-70 Autostick Beetle |
|
| 10 |
|
02054 | Ignition Condenser - 1971-73 Beetle - Super - Ghia |
|
| 10 |
|
02074 | Ignition Condenser - 1973-79 Beetle -Super Beetle - Ghia | |
| 10 |
|
02086 | Ignition Condenser - for 009 & 050 Distributors | |
| 11 |
|
50003-1 | JBugs Electronic Ignition Module for 009 & 050 Distributors - 12 Volt | |
| 11 |
|

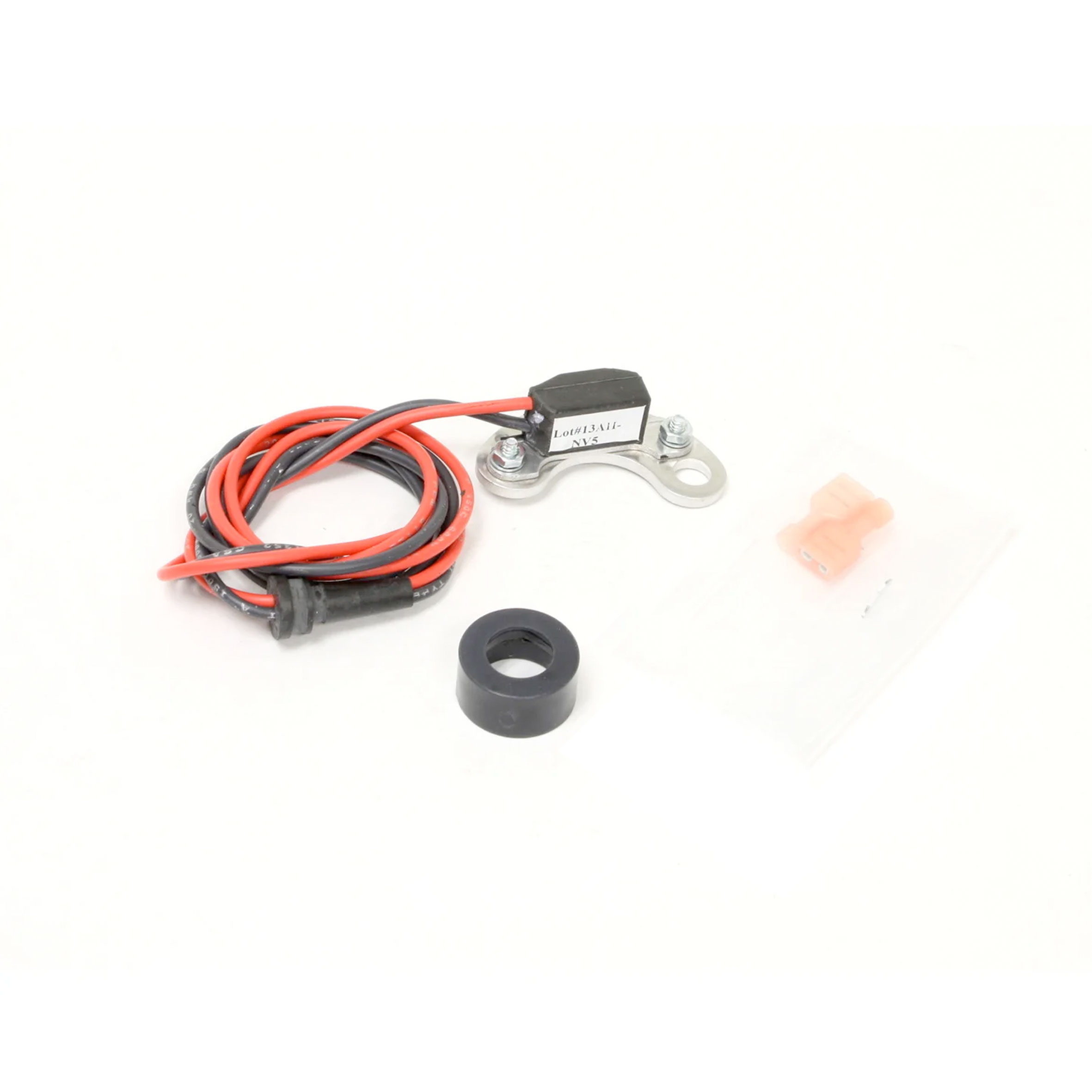

1847A | PerTronix Ignitor Ignition Kit - for 009 & 050 Distributors - 12 Volt | |
| 11 |
|
9432 | EMPI Accu-fire Electronic Ignition Kit | |
| 11 |
|
1847V | PerTronix Ignitor Ignition Kit - for some Stock Bosch Distributors - 12 Volt | |
| 11 |
|
91847A | PerTronix Ignitor 2 Ignition Kit - for 009 & 050 Distributors - 12 Volt | |
| 11 |
|
71847A | PerTronix Ignitor 3 Ignition Kit - for 009 & 050 Distributors - 12 Volt | |
| 11 |
|
21100 | Compu-Tronix Electronic Ignition Module | |
| 11 |
|
1849 | PerTronix Ignitor Ignition Module for 1964-1967 VW Distributors |
|
| 12 |
|
111905261 | VW Distributor Shaft O-Ring | |
| 13 |
|
8909 | Distributor Clamp - Zinc | |
| 13 |
|
8910 | Distributor Clamp - Chrome | |
| 13 |
|
8912 | Distributor Clamp - Billet | |
| 13 |
|
905003Black | Distributor Clamp with Timing Marks - Black Anodized Billet |
|
| 13 |
|
905003Blue | Distributor Clamp with Timing Marks - Blue Anodized Billet | |
| 13 |
|
905003Red | Distributor Clamp with Timing Marks - Red Anodized Billet |
|
